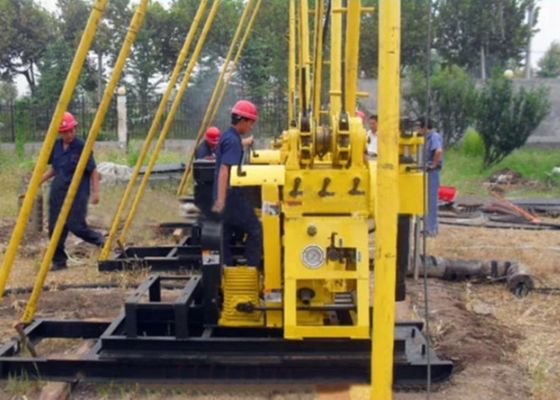

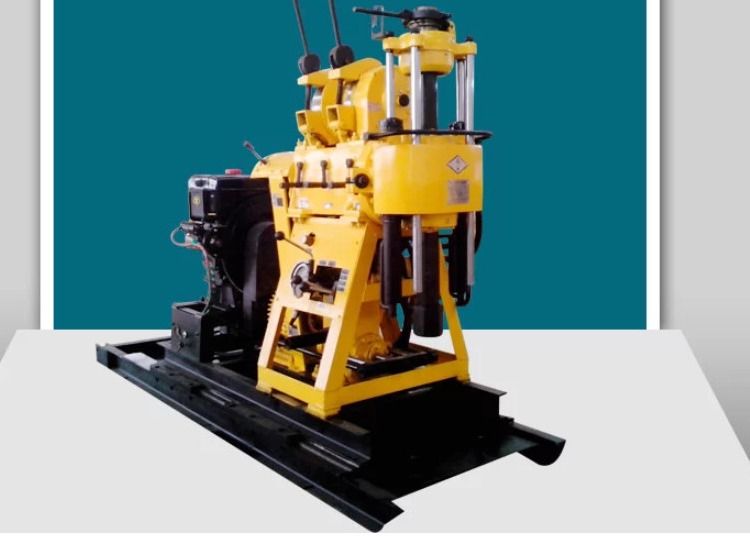

Portable Small Geological Borehole Drilling Machine Diesel Powered

Portable Small Geological Borehole Drilling Machine Diesel Powered
Portable Small Geological Borehole Drilling Machine Diesel Powered Portable Small Geological Borehole Drilling Machine Diesel Powered

Large Image :  Portable Small Geological Borehole Drilling Machine Diesel Powered

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Certification: ISO9001 Name: Geological Drilling Rig Machine
Type: Rotary Drilling Rig Power Type: Diesel
Usage: Water Well Voltage: 380V
Power(W): 15KW Weight: 626KGS
Other Name: Drill Rig Drill Rod Diameter: 42, 50,89
Condition: New Equipment Size(L * B * H): 1730 * 860 * 1360 (mm)
High Light:

geological borehole drilling machine

,

diesel borehole drilling machine

,

portable borehole drilling machine

Portable Diesel Borehole Small Geological Drilling Rig Machine





Geological Drilling Rig Machine brief introduction



1. The winch of the JZ- 200 waterwell drilling rig is matched with the holder to form the doublesides star wheel supporting structure which can bear strong impact2. The spindle box achieves location via four groups of bearings to ensure the gyrator of sufficient rigidity to operate in the complex geological conditions with gravel bed,pebble bed.

3. The cone clutch with national patent technology is equipped to the product. Marked by free maintenance, it can deliver large torque and can be operated conveniently.
4. The water well drilling rig also employs the 53*59 hexagon drive drilling rod which has strong rigidity and can transmit large torque.



Geological Drilling Rig Machine parameter



Drilling depth 200m
Open hole diameter 75-300mm
End hole diameter 75mm
Active drill rod 53/59*4200mm
Rod diameter 50,60mm
Drill angle 90°-75°
Matched power(diesel power) 15kw/2200r/min
Dimension

2800*950*1700mm



Geological Drilling Rig Machine characteristic



GK-200 type drilling rig is a hydraulic feeding of low speed and high torque portable drilling rig.
The railway, hydro power, traffic bridges foundation and other buildings in the engineering geological investigation.
The geological core drilling, geophysical survey
The small grout Confucians, blast hole drill
The small water well drilling.


The characteristics of drilling rig:


1. With the hydraulic feeding mechanism, improve the drilling efficiency, reducing the labor intensity of workers.
2. The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency convenient operation, safe and reliable.
3. Furnished with hole bottom pressure gauge pressure indicator, and easy to master the status inside the hole.
4. The handle centered, convenient operation.
5. The drilling machine has the advantages of compact structure, small volume, light weight, convenient move.



Portable Small Geological Borehole Drilling Machine Diesel Powered 0Portable Small Geological Borehole Drilling Machine Diesel Powered 1Portable Small Geological Borehole Drilling Machine Diesel Powered 2
