Product Details:
Payment & Shipping Terms:
|
| Type: | Core Drill Rig | Power Type: | Diesel |
|---|---|---|---|
| Weight:: | 480kg | Usage: | Water Well,railways, Core Drilling |
| Drilling Depth: | 30-180m | Dimension(L*W*H): | 1620*970*1560mm |
| Drill Pipe Diameter: | 42mm | Borehole Dip Angle: | 90°~75 |
| Spindle Speed: | 1010、790、470、295、140（r/min） | Model: | YBC-12/125 |
| Rated Pressure: | 12.5Mpa | Model(diesel Engine）: | 1105 |
| Rated Power: | 18KW | WEIGHT: | AROUND 600KG |
| High Light: | 150m Water Well Drilling Equipment,Borehole Water Well Drilling Equipment,Well Drilling Rig For Railways |
||

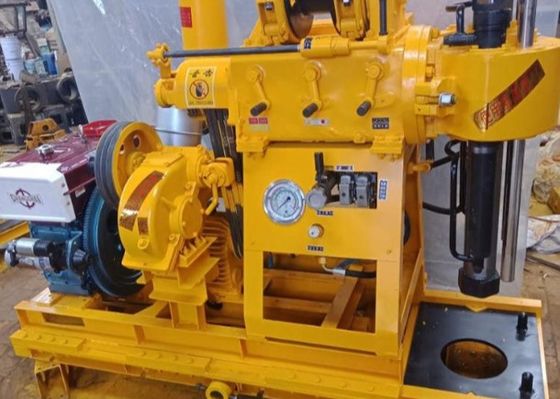

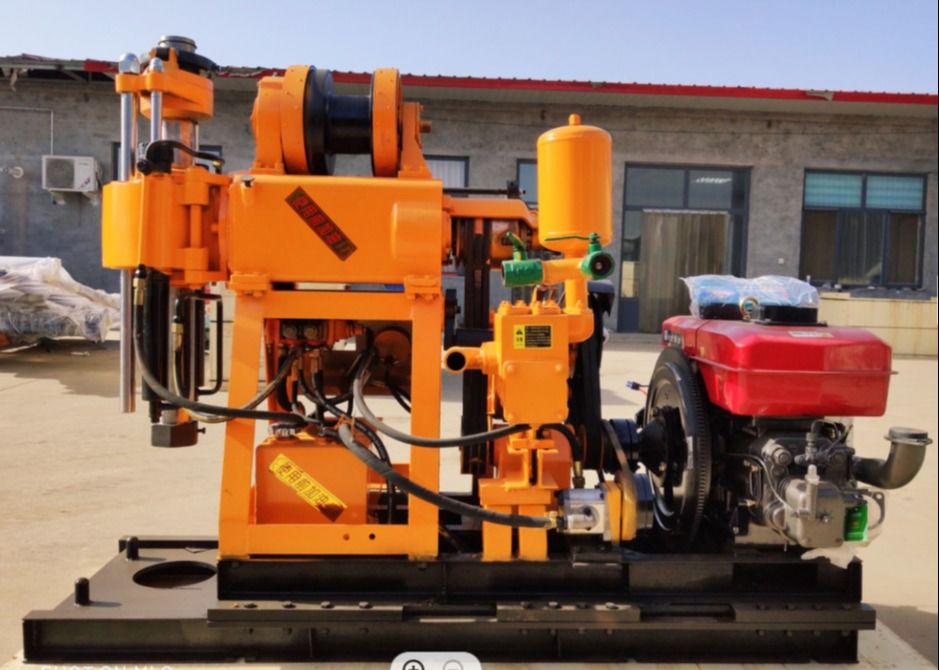

Manufacturer Borehole 150 Meters Small Water Well Drilling Machine Drill Rig
Introduction of Water Well Drilling Rig
Oil pressure feeding system to improve drilling efficiency and lighten labor strength. It configures upper ball clip clamping mechanism together with 6 sides' active drilling rod to practice pole collapse when running, high efficiency, safe and reliable.Centralized handles and convenient operation.Compact structure, small volume, light weight, strong resolvability and easy to move, which is suitable to work in plain or mountain area.
Water Well Drilling Rig parameters
| XY-1A Type | |||
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm | ||
The main features of Water Well Drilling Rig are as follows
1.High efficiency and saving labor intensity .with hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.
2.Safe and reliable.Using the ball cassette clamping device, and can down bar without stopping ,and it is convenient to operate.
3.Easy to operate.Equipped with a pressure gauge at the bottom for measuring pressure of the bore , easy to operate.
