Durable 100m Water Well Drilling Machine for Rock Core Geological

Durable 100m Water Well Drilling Machine for Rock Core Geological
Durable 100m Water Well Drilling Machine for Rock Core Geological Durable 100m Water Well Drilling Machine for Rock Core Geological

Large Image :  Durable 100m Water Well Drilling Machine for Rock Core Geological

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Geological Drilling Rig Machine Power Type: Diesel
Usage: Water Well,railways, Core Drilling Drilling Depth: 100m
Dimension(L*W*H): 1640*1030*1440mm Drill Pipe Diameter: 42mm
Borehole Dip Angle: 90°~75 Spindle Speed: 142、285、570(r/min)
Model: YBC-12/125 Rated Pressure: 12.5Mpa
Model(diesel Engine): 1105 Rated Power: 18KW
WEIGHT: AROUND500KG Spindle Stroke: 450kmm
High Light:

100m Water Well Drilling Machine

,

Durable Diesel Water Well Drilling Machine

,

Rock Core Geological Water Drilling Machine

Manufacturer Price Durable Drill Rig Used Rock Geological Core Water Well Drilling Machine





Description of water well drilling machine:



Water well drilling, engineering geographical prospecting of railway, hydro-power, transportation, bridge, dam foundation and buildings, as well as rock core geological and physical survey drilling



Geological Drilling Rig Machine technical parameter



Drilling Rig
Drilling diameter(mm) 110
Drilling depth (m) 100
Drill pipe diameter (mm) 42
Drilling angle(°) 90~75
Equipment size(L * B * H) 1640* 1030 * 1440 (mm)
Rig weight (except engine) 500
Gyrator
Spindle speed (four gear) (r/min) 142,285,570
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 0.5
Winch assembly
Winch maximum lifting force (single rope)(KN) 10
Reel speed (r/min) 55,110,220
Reel circumferential speed(m/s) 0.42,0.84 ,1.68
Reel diameter(mm) 145
Wire rope diameter(mm) 9.3
Wire rope density (m) 27
Brake diameter(mm) 230
Brake band width (mm) 50
Water pump
Pump type Horizontal single cylinder double acting
Maximum displacement (motor)(L/min) 95(77)
Work pressure (Mpa) 0.7
Cylinder diameter (mm) 80
Piston stroke(mm) 100
The maximum allowable pressure (Mpa) 1.2
Oil pump
Oil pump type Gear pump
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine ZS1100
Rated power (KW) 12.1
Rated speed (r/min) 2200
Rated pressure(Mpa) 11
Motor type Y160M - 4



Features of water well drilling machine



1. Mainly used for drilling holes for the general survey and exploration of solid mineral deposits and engineering geological
surveys, and inspection holes for various concrete structures.
2. Drill bits such as diamond, alloy, and steel particles can be used for drilling according to different formations.
3. When the final hole diameter is 75mm and 46mm, the rated drilling depth is 100m and 180m, respectively.
It shall not exceed 110% of each drilling depth, the rated opening diameter is 110mm, and the large opening diameter is allowed to
be 150mm.


Drilling rig features


1. With a hydraulic feed mechanism, improve drilling efficiency and reduce the labor intensity of workers.
2. The drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill rod, which can be used to
reverse the rod without stopping the machine. The work efficiency is high, the operation is convenient, and it is safe and
reliable.
3. Equipped with a pressure gauge at the bottom of the hole, indicating the pressure to facilitate the grasp of the situation in the hole.
4. The handle is convenient for centralized operation.
5. The drilling rig has a compact structure, small size, lightweight, strong decomposability, easy to move, suitable for working in plains or mountainous areas.



After-sale Service


1, Free insurance for goods
2, 24 hours online technical support to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
3. To provide one year warranty and lifetime maintenance for all products.

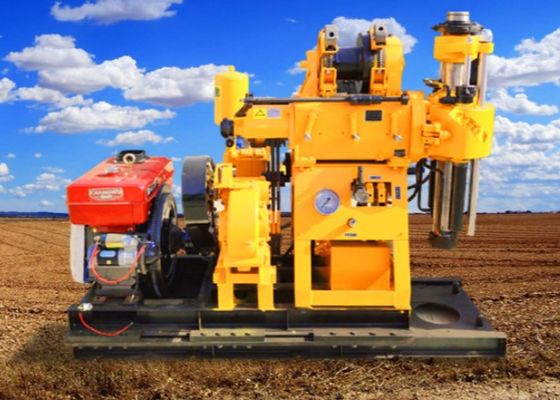

Durable 100m Water Well Drilling Machine for Rock Core Geological 0

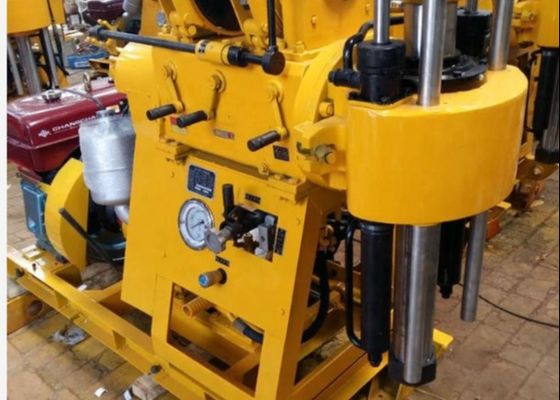

Durable 100m Water Well Drilling Machine for Rock Core Geological 1
