| Product Name: | XY-1 A Portable Competitive Price 150 Meters Depth Core Drill Rig | Power Type: | Diesel |
|---|---|---|---|
| Weight:: | 480kg | Usage: | Water Well,railways, Core Drilling |
| Drilling Depth: | 30-180m | Dimension(L*W*H): | 1620*970*1560mm |
| Drill Pipe Diameter: | 42mm | Borehole Dip Angle: | 90°~75 |
| Spindle Speed: | 1010、790、470、295、140（r/min） | Model: | YBC-12/125 |
| Rated Pressure: | 12.5Mpa | Model(diesel Engine）: | 1105 |
| Rated Power: | 18KW | WEIGHT: | AROUND 600KG |
| High Light: | XY-1A portable borehole drilling machine,XY-1A,150m portable borehole drilling machine |
||

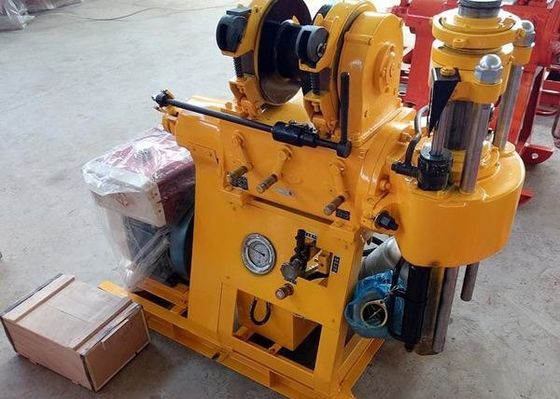

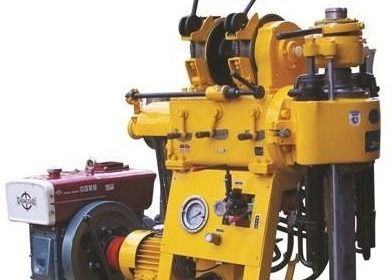

XY-1 A Portable Competitive Price 150 Meters Depth Core Drill Rig
XY-1 A Portable Competitive Price 150 Meters Depth Core Drill Rig Introdution Information
The XY-1A drilling rig is designed based on the XY-1 drilling rig. It is a high-speed and portable hydraulically fed drilling rig.The core drilling rig is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.
XY-1 A Portable Competitive Price 150 Meters Depth Core Drill Rig Tech Data
| XY-1A Type | |||
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm | ||
XY-1 A Portable Competitive Price 150 Meters Depth Core Drill Rig Features
1. With a hydraulic feed mechanism, improve drilling efficiency and reduce the labor intensity of workers.
2. The drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill rod, which can be used to
reverse the rod without stopping the machine. The work efficiency is high, the operation is convenient, and it is safe and
reliable.
3. Equipped with a pressure gauge at the bottom of the hole, indicating the pressure to facilitate the grasp of the situation in the hole.
4. The handle is convenient for centralized operation.
5. The drilling rig has a compact structure, small size, lightweight, strong decomposability, easy to move, suitable for working in plains or mountainous areas.
