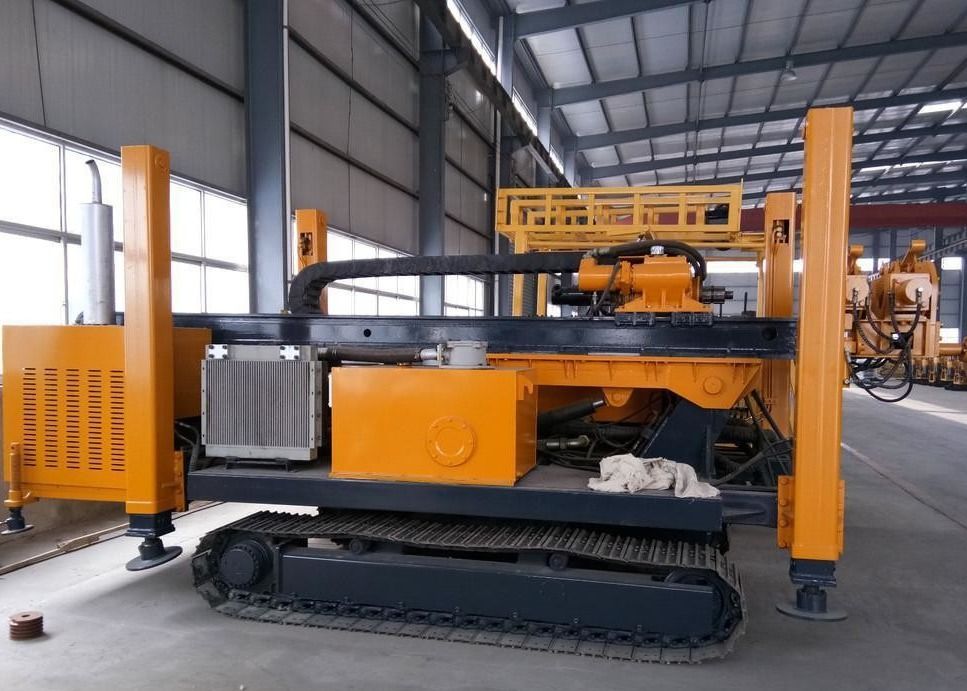

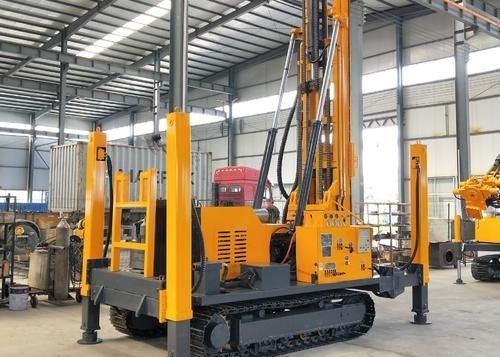

Iso Big Pneumatic St 350 Truck Mounted Water Well Drilling Rig

Iso Big Pneumatic St 350 Truck Mounted Water Well Drilling Rig
Iso Big Pneumatic St 350 Truck Mounted Water Well Drilling Rig Iso Big Pneumatic St 350 Truck Mounted Water Well Drilling Rig

Large Image :  Iso Big Pneumatic St 350 Truck Mounted Water Well Drilling Rig

Product Details:

Place of Origin: China
Brand Name: SHITAN
Certification: ISO
Model Number: ST350

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: A detailed discussion
Packaging Details: Wooden case or naked
Delivery Time: 5-8 days after payment
Payment Terms: T/T, Western Union
Supply Ability: 100000 sets per year
Detailed Product Description
Product Name: Big Pneumatic Drill ST 350 Truck Mounted Drilling Machine Water Well Drilling Rig Application: Drilling Well,hammer For Drills
Air Pressure: 1.25-3.5Mpa After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Weight: 9800KG
Power: 92Kw Usage: Water Well
Hole Diameter: 140-305mm Drill Rod Length: 1.5-6
Drilling Depth: 350M Rod Length: 6M
High Light:

350 truck mounted water well drilling rig

,

ISO truck mounted water well drilling rig

,

trailer mounted drilling machine 350

Big Pneumatic drill ST 350 Truck Mounted Drilling Machine Water Well Drilling Rig





ST 350 Truck Mounted Drilling Machine Water Well Drilling Rig Introduction



The rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools
Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability. Veryflexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.

The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such asslurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.



ST 350 Truck Mounted Drilling Machine Water Well Drilling Rig Tech Data


Technical Parameters of ST350  water well drilling rig
type ST350
The weight 9.8T
Dimension

6m×2m×2.5m

The hole diameter

105-305mm

Drilling depth 350m
One-time advance length 6m
Walking speed 2.5KM/H
Climbing angles 30
Power 92KW
Using air pressure 1.7-3.3MPA
Air consumption 17-35
Drill pipe length 1.5m 2.0m 3.0m 6.0m
Drill pipe diameter 89mm,102mm,
Rig lifting force 20T
Swing speed 55-115rpm
Swing torque 6200-85000N.m



ST 350 Truck Mounted Drilling Machine Water Well Drilling Rig Features



1. Drilling rig drive can be divided into mechanical drive, alternating current drive, direct current drive, compound drive and other forms, with reasonable power matching, high transmission efficiency and reliability. The machine layout is reasonable, the use of standardized, modular design, a variety of combinations of versatility, interchangeability, high degree of integration, installation, transport fast.

2. The derrick structure is in the form of type A, type K, etc., which is assembled in sections, connected by bolts or pin shafts. The lifting is divided into vertical lifting in sections or overall rotating lifting, and equipped with buffer device in place to ensure stable and safe positioning.

3. The substructure is in the form of spiral lift, double lift, box stacked, telescopic and so on.

4. The main brake adopts band brake or hydraulic disc brake, the auxiliary brake adopts pneumatic water-cooled push-disk brake, electromagnetic eddy current brake, or the auxiliary brake is made by energy consumption braking of ac frequency conversion motor.



ST 350 Truck Mounted Drilling Machine Water Well Drilling Rig FAQ



1. Q: Are you trading company or manufacturer?

A: We are manufacturer.

2. Q: How long is your delivery time?

A: It is according to the model and quantity.Generally it is 3-5 days if the machines are in stock.It will be 15-30 days if you want to customize the machines.

3. Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer you the sample machine.But it's not free. You need to pay for the sample and the cost of freight.

4. What are the delivery times?

The specific delivery time depends on the items and quantity of your order.
5. Do you have a MOQ limit?
Yes it depends on the products size and production process.
6. What are your payment methods?
T/T,Western Unions payments are available.
7. What after-sales service can you provide?
It has developed a whole-process and all-round after-sales service system, including equipment installation and debugging, maintenance, testing, operation training and spare parts supply.
