OEM 50 Meters Hydraulic Portable Core Drilling Machine

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

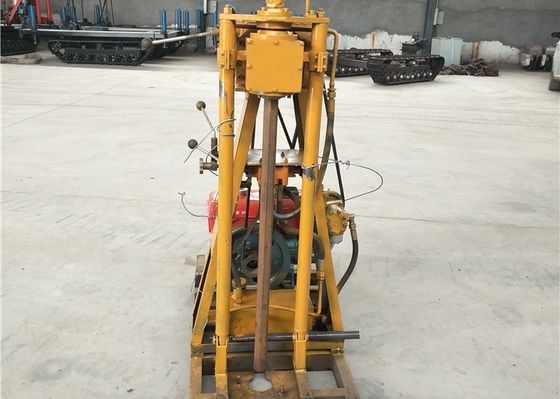

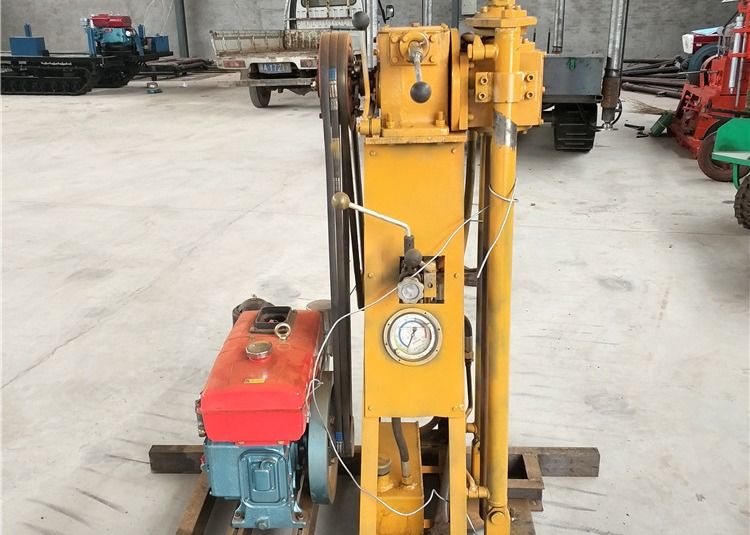

OEM 50 Meters Hydraulic Portable Core Drilling Machine

OEM 50 Meters Hydraulic Portable Core Drilling Machine
OEM 50 Meters Hydraulic Portable Core Drilling Machine OEM 50 Meters Hydraulic Portable Core Drilling Machine

Large Image :  OEM 50 Meters Hydraulic Portable Core Drilling Machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST 50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets/year
Detailed Product Description
Type: OEM Customized Portable 50 Meters Hydraulic Core Drilling Machine Core Drill Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 50m Dimension(L*W*H): 1180×680×1600mm
Drill Pipe Diameter: 42mm Condition: New
Weight: 200KG Hole Size Diameter: 73-108mm
High Light:

50m Portable Core Drilling Machine

,

oem Portable Core Drilling Machine

,

50meter portable drill rig

OEM Customized Portable 50 Meters Hydraulic Core Drilling Machine Core Drill Rig


Introduction 50 Meters Hydraulic Core Drilling Machine Core Drill Rig


ST50 Core Drill Rig is suitable for drilling wells, general exploration, geophysical prospecting, road and construction exploration, and blasting holes.According to the different layers of the bottom selection of alloys, diamonds and composite drill bits for drilling.It can drill 2-9 grades of sandy clay and rock formations.



OEM Customized Portable 50 Meters Hydraulic Core Drilling Machine Core Drill Rigparameters:



Type ST50 Core Drill Rig
Drilling depth (m) The max. 50 meter
Hole size diameter 73-108mm
Drill pipe diameter 42mm
Vertical spindle speed 70-650
Reverse rotation speed 50-130
Power 5.7KW
Outsize 1180×680×1600mm

Weight

(including Gasoline engine )

208kg





Features of 50 Meters Hydraulic Core Drilling Machine Core Drill Rig



Drilling Rig Machine is applicable to small and medium-sized mines and road construction, defense and water conservancy and stone works in the large diameter borehole drilling operations.The energy losss does not increase with the drilling rod increasing



FAQ Of 50 Meters Hydraulic Core Drilling Machine Core Drill Rig


Q1: Will you provide some spare parts of the machines?
Yes, of course.
Q2: What about the voltage of products? Can they be customized?
 Yes, of course. The voltage can be customized according to your requirement.
Q3: Which payment term can you accept?
 30% T/T in advanced, 70% T/T
Q4: How long will you take to arrange production?
 380V 50HZ we can delivery, the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q5: Can you accept OEM orders?
 Yes, with professional design team, OEM orders are highly welcome.
