| Type: | Geological Drilling Rig Machine | Power Type: | Diesel |
|---|---|---|---|
| Usage: | Water Well,railways, Core Drilling | Drilling Depth: | 100m |
| Dimension(L*W*H): | 1640*1030*1440mm | Drill Pipe Diameter: | 42mm |
| Borehole Dip Angle: | 90°~75 | Spindle Speed: | 142、285、570（r/min) |
| Model: | YBC-12/125 | Rated Pressure: | 12.5Mpa |
| Model(diesel Engine）: | 1105 | Rated Power: | 18KW |
| WEIGHT: | AROUND500KG | Spindle Stroke: | 450kmm |
| High Light: | 100m water well digging machine,18KW water well digging machine,Borehole water well digging equipment |
||

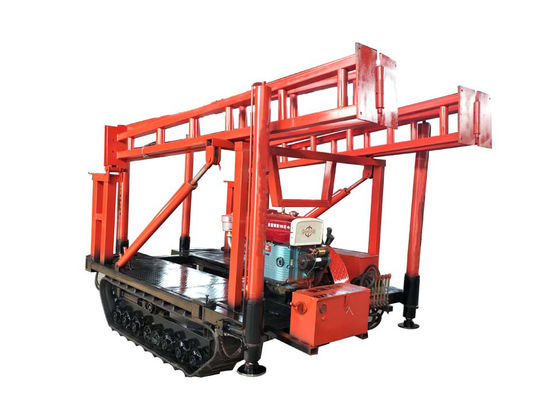

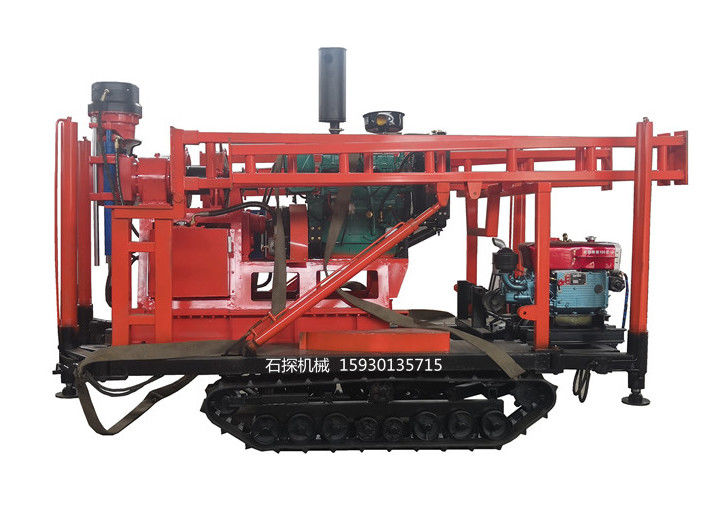

Diesel Water Well Digging Machine / Mobile Mining Core Drilling Rig Machine
Applications of Water Well Drilling Rig
XY-1 rig is light shallow hole drill with hydraulic feed.Applicable to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc.
1, having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.
2, using the ball cassette clamping device, and can realize non-stop down bar, convenient operation, safe and reliable.
3, handle, easy to operate.Equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master hole.
Water Well Drilling Rig technical parameter
| Drilling Rig | |
| Drilling diameter(mm) | 110 |
| Drilling depth (m) | 100 |
| Drill pipe diameter (mm) | 42 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1640* 1030 * 1440 (mm) |
| Rig weight (except engine) | 500 |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 142,285,570 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 0.5 |
| Winch assembly | |
| Winch maximum lifting force (single rope)(KN) | 10 |
| Reel speed (r/min) | 55,110,220 |
| Reel circumferential speed(m/s) | 0.42,0.84 ,1.68 |
| Reel diameter(mm) | 145 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 27 |
| Brake diameter(mm) | 230 |
| Brake band width (mm) | 50 |
| Water pump | |
| Pump type | Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) | 95(77) |
| Work pressure (Mpa) | 0.7 |
| Cylinder diameter (mm) | 80 |
| Piston stroke(mm) | 100 |
| The maximum allowable pressure (Mpa) | 1.2 |
| Oil pump | |
| Oil pump type | Gear pump |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 800-2500 |
| Diesel engine or motor | |
| Diesel engine | ZS1100 |
| Rated power (KW) | 12.1 |
| Rated speed (r/min) | 2200 |
| Rated pressure(Mpa) | 11 |
| Motor type | Y160M - 4 |
Water Well Drilling Rig advantage
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
