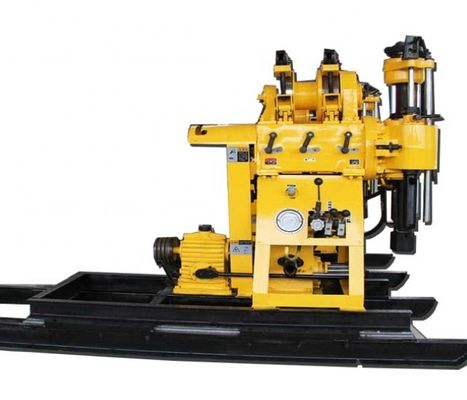

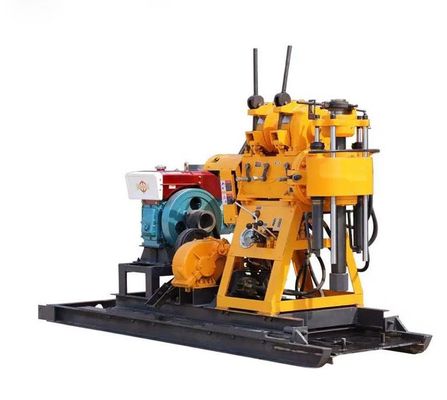

Mobile Diamond Core Portable Well Drilling Equipment With Independent Mud Pump

Mobile Diamond Core Portable Well Drilling Equipment With Independent Mud Pump
Mobile Diamond Core Portable Well Drilling Equipment With Independent Mud Pump Mobile Diamond Core Portable Well Drilling Equipment With Independent Mud Pump

Large Image :  Mobile Diamond Core Portable Well Drilling Equipment With Independent Mud Pump

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Geological Drilling Rig Machine Power Type: Diesel
Usage: Water Well,railways, Core Drilling Drilling Depth: 100m
Dimension(L*W*H): 1640*1030*1440mm Drill Pipe Diameter: 42mm
Borehole Dip Angle: 90°~75 Rated Pressure: 12.5Mpa
Model(diesel Engine): 1105 Rated Power: 18KW
Color: Yellow Or As Your Rquest Drilling Angle: 90 ~75°
High Light:

diamond core portable well drilling equipment

,

ISO mobile portable well drilling equipment

,

independent mud pump portable drill rig

Portable Mobile Diamond Core Drill Machine With BW-160 Independent Mud Pump





Description of water well drilling machine:



XY-1 diamond core drill machine is a small drilling rig for 200m deep, widely applied for Geology general check exploration, Earth physics exploration, road and hihg layer buiding ground survey, Water Bore Well, blast opening et cetera, drilling engineering, etc.

Geological Drilling Rig Machine technical parameter



Drilling Rig
Drilling diameter(mm) 110
Drilling depth (m) 100
Drill pipe diameter (mm) 42
Drilling angle(°) 90~75
Equipment size(L * B * H) 1640* 1030 * 1440 (mm)
Rig weight (except engine) 500
Gyrator
Spindle speed (four gear) (r/min) 142,285,570
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 0.5
Winch assembly
Winch maximum lifting force (single rope)(KN) 10
Reel speed (r/min) 55,110,220
Reel circumferential speed(m/s) 0.42,0.84 ,1.68
Reel diameter(mm) 145
Wire rope diameter(mm) 9.3
Wire rope density (m) 27
Brake diameter(mm) 230
Brake band width (mm) 50
Water pump
Pump type Horizontal single cylinder double acting
Maximum displacement (motor)(L/min) 95(77)
Work pressure (Mpa) 0.7
Cylinder diameter (mm) 80
Piston stroke(mm) 100
The maximum allowable pressure (Mpa) 1.2
Oil pump
Oil pump type Gear pump
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine ZS1100
Rated power (KW) 12.1
Rated speed (r/min) 2200
Rated pressure(Mpa) 11
Motor type Y160M - 4


Drilling rig features


1. With a hydraulic feed mechanism, improve drilling efficiency and reduce the labor intensity of workers.
2. The drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill rod, which can be used to
reverse the rod without stopping the machine. The work efficiency is high, the operation is convenient, and it is safe and
reliable.
3. Equipped with a pressure gauge at the bottom of the hole, indicating the pressure to facilitate the grasp of the situation in the hole.
4. The handle is convenient for centralized operation.
5. The drilling rig has a compact structure, small size, lightweight, strong decomposability, easy to move, suitable for working in plains or



mountainous areas.



1. Power: can be diesel engine or electric motor for choice
2. Trailer: can be fixed type or trailer mobile type.
3. Track: can make as track type.
4. Drill bit: can be alloy bit or diamond bit.
5. Double-layer mobile structure: can make as double layer, easy to drill.
6. Diesel engine: can be manual start or electric start.
7. Mud pump: can customize as BW-160 independent type.



Mobile Diamond Core Portable Well Drilling Equipment With Independent Mud Pump 0Mobile Diamond Core Portable Well Drilling Equipment With Independent Mud Pump 1



Mobile Diamond Core Portable Well Drilling Equipment With Independent Mud Pump 2
