Portable Hydraulic 200m Borehole Water Well Drilling Rig Machine

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

Portable Hydraulic 200m Borehole Water Well Drilling Rig Machine

Portable Hydraulic 200m Borehole Water Well Drilling Rig Machine
Portable Hydraulic 200m Borehole Water Well Drilling Rig Machine

Large Image :  Portable Hydraulic 200m Borehole Water Well Drilling Rig Machine

Product Details:

Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK 200

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Product Name: Portable Hydraulic Type GK 200 M Water Well Drilling Rig Machine Power Type: Diesel
Usage: Water Well,railways, Core Drilling Drilling Depth: 100m
Dimension(L*W*H): 1640*1030*1440mm Drill Pipe Diameter: 42mm
Borehole Dip Angle: 90°~75 Spindle Speed: 142、285、570(r/min)
Model: YBC-12/125 Rated Pressure: 12.5Mpa
Model(diesel Engine): 1105 Rated Power: 18KW
WEIGHT: AROUND500KG Spindle Stroke: 450kmm
High Light:

200m water well drilling rig machine

,

200m portable water well drilling rig

,

borehole water well drilling rig machine

Portable Hydraulic Type GK 200 m Water Well Drilling Rig Machine


Portable Hydraulic Type GK 200 m Water Well Drilling Rig Machine Information



XY-1 Water well machine is light shallow hole drill rig with hydraulic automatic feeding mechanism.It is mainly applied to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc.

GK 200 m Water Well Drilling Rig Machine Information Technical Parameter


Drilling depth 200m
Drilling Diameter 75mm,91mm,110mm,130mm,150mm,300mm
Drilling rod diameter 50mm
Drilling Angle 90°-75°
Dimensions(L×W×H) 1750×850×1300 (mm)
Weight 1050kg/set
Swivel Head
Spindle Speed 115, 230, 505, 1010r/min
Spindle stroke 450mm
Spindle Dia. 65mm (53x59 Kelly)
Upward displacement speed of drilling vertical spindle 0.05m/s
Downward displacement speed of drilling vertical spindle 0.067m/s
Spindle pull-down max 15KN
Spindle lifting capacity max 25KN
Vertical maximum output torque 1.5KN.m
Hoist
Max. Lifting capacity(single rope) 20KN.m
Lifting rotating speed 20; 40; 90; 168r/min
Hoisting drum linear velocity (two levels) 0.17; 0.35; 0.73; 1.5m/s
Durm Diameter 140mm
Wire rope diameter 9.3mm
Wire rope capability 40m
Gear Pump
Model YBC-12/125
Rated pressure 12.5Mpa
Displacement 20ml/r
Rated Speed 2000r/min
Diesel Engine
Model ZS1115
Rated Power 16.2KW
Rated Speed 2200r/min
Mud Pump
Model BW-160
Displacement 38, 58 ,90, 160 L/min
Pressure 1.3 Mpa


Our Service of GK 200 m Water Well Drilling Rig Machine


1. Drill pipe strictly according to ISO9001 standard

2. If you found to quality problems within one month of the package returned.

3. All strictly according to the contract and fulfill the obligations and responsibilities

4. 24 hours online customer service,feel free contact us.


GK 200 m Water Well Drilling Rig Machine Applications


1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge,
water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Core mining exploration, Or exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling.

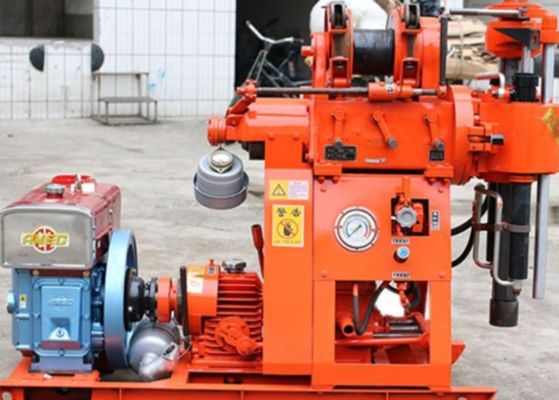

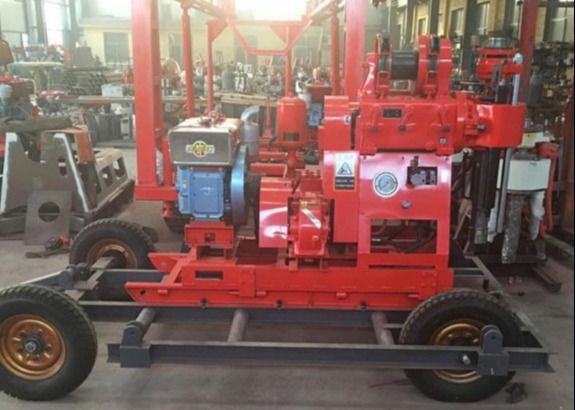

Portable Hydraulic 200m Borehole Water Well Drilling Rig Machine 0Portable Hydraulic 200m Borehole Water Well Drilling Rig Machine 1
