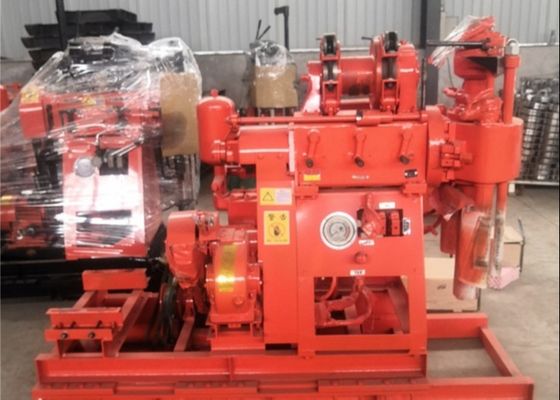

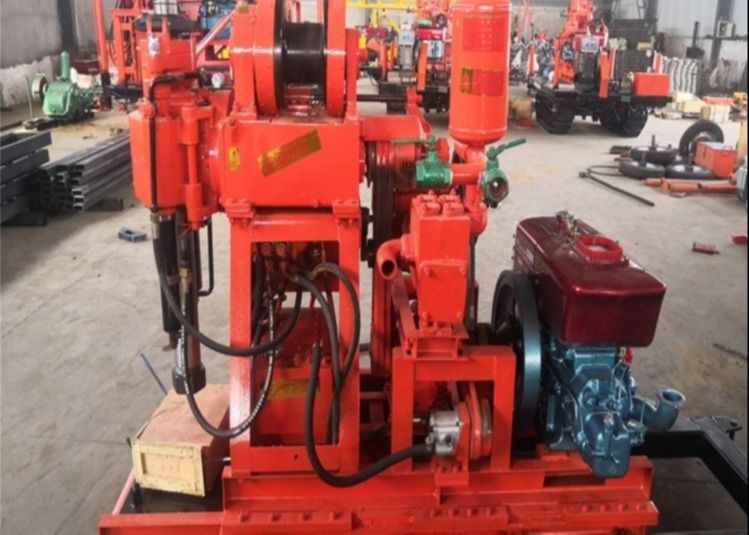

1 Day 1 Well 200m Geological Drilling Rig Machine High Working Efficiency

large.img.alt
small.img.alt small.img.alt

Large Image :  1 Day 1 Well 200m Geological Drilling Rig Machine High Working Efficiency

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: GK-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: One Day One Well High Working Efficeincy GK 200 Geological Drilling Rig Machine Equipment Hole Diameter: Customized
Drilling Depth: 200 Meters Voltage: 380v
Rated Boring Diameter: 200m Certification: ISO9001
Power Type: Diesel Condition: New
Warranty: 1 Year Weight: 500kg
Diameter: Customized Application: Water Well Drilling ,Geological Exploration
High Light:

200m geological drilling rig machine

,

200m geological drilling machine

,

Diesel geological drilling rig machine

High Working Efficeincy GK 200 Geological Drilling Rig Machine Equipment





High Working Efficeincy GK 200 Geological Drilling Rig Machine Equipment Introduction



This is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions. Diamond drill vit, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.



High Working Efficeincy GK 200 Geological Drilling Rig Machine Equipment ​Parameter:



Rated drilling depth 200m
Rated boring diameter 200mm
Vertical shaft rotation speed (4 shifts) 118, 236, 505, 1010.r/min
Vertical shaft max. output torque 1500N*m
Max. hositing weight single line) 17KN
Drilling rod diameter 42mm
Drilling dip angle 90~75°
Drill outside diameter (L*B*H) 1433*697*1273mm
Drill weight 500kg
max. boring diameter 300mm



High Working Efficeincy GK 200 Geological Drilling Rig Machine Equipment Feature:



1. With hydraulic automaatic feeding device, elevated drilling efficiency.

2. Large torque and drilling diameter.

3. With a spherial jaw holding mechanism and the rod replacement without breakdwn, high efficiency.

4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.

5. Adoping large drive pipe, double guide rod, increase the stability.



Our Service  for High Working Efficeincy GK 200 Geological Drilling Rig Machine Equipment



1.Good and reasonable price

2.High quality

3.Strict Inspection

4.24 hours online communication



FAQ Of High Working Efficeincy GK 200 Geological Drilling Rig Machine Equipment



Q1. What is the advantage about your company?

A1. Our company has professional team and professional production line.

Q2. Why should I choose your products?

A2. Our products are high quality and low price.

Q3. The logo and the color can be customized?

A3. Yes, we welcome you to sample custom.

Q4. Any other good service your company can provide?

A4. Yes,we can provide good after-sale and fast delivery.





1 Day 1 Well 200m Geological Drilling Rig Machine High Working Efficiency 01 Day 1 Well 200m Geological Drilling Rig Machine High Working Efficiency 11 Day 1 Well 200m Geological Drilling Rig Machine High Working Efficiency 2
