Customized OEM 180 Meters Depth Crawler Drilling Machine

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

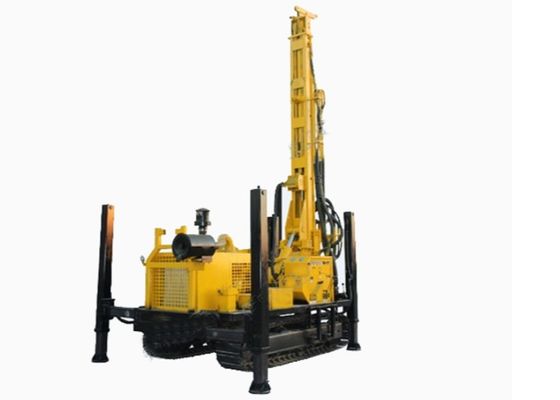

Customized OEM 180 Meters Depth Crawler Drilling Machine

Customized OEM 180 Meters Depth Crawler Drilling Machine
Customized OEM 180 Meters Depth Crawler Drilling Machine Customized OEM 180 Meters Depth Crawler Drilling Machine

Large Image :  Customized OEM 180 Meters Depth Crawler Drilling Machine

Product Details:

Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST 180

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 units a month
Detailed Product Description
Product Name: Customized OEM Crawler Drilling Rig ST 180 Meters Depth Water Well Drilling Rig Equipment Power Type: Diesel / 13.3kw
Model Number: ST 180 Drill Depth: 150 Meters
Usage: Water Well Color: Yellow,Yellow Or As Your Rquest
Application: Geological Exploration Drilling Angle: 90 ~75°
Drilling Diameter: Customized Dimensions: 1100*600*500mm, 600*650*2330mm,
High Light:

180 meters depth crawler drilling machine

,

customized crawler drilling machine

,

oem crawler drilling machine

Customized OEM Crawler Drilling Rig ST 180 Meters Depth Water Well Drilling Rig Equipment





Customized OEM Crawler Drilling Rig ST 180 Meters Depth Water Well Drilling Rig Equipment Information



Water and air drilling rig is an efficient and multifunctional drilling equipment. It is mainly suitable for drilling water wells,
agricultural irrigation wells, geothermal air conditioning holes and other wells, especially suitable for water intake projects in
mountainous areas and rock formations. . The efficiency is ten times higher than that of traditional rotary drilling rigs, and the
economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer
with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It
can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.
air compressor mounted water well drilling rig machine small rotary drill rig



Customized OEM Crawler Drilling Rig ST 180 Meters Depth Water Well Drilling Rig Equipment Technical Parameters:



Model ST 180 Meters Depth Water Well Drilling Rig Equipment
Overall weight (T )
4.2
Dimension (mm )
3800*1700*2350
Drilling diameter (mm )
130-294
Drilling depth (m )
220
One-time advance length of the drill(mm)
3000
Traveling speed (km/h )
2.5
Climbing ability (max )
30
Minimum Ground Clearance (mm)
250
Working Air Pressure (mpa )
1.7-2.5
Air consumption I Pl3Zrain)
15-27
Main machine power (kw)
Yunnei 60Kw
Rotary Speed (rpm)
48 - 70
Rotary torque (Nm )
4200-5600



ST 180 Meters Depth Water Well Drilling Rig Equipment Main Features



It has been updated and upgraded. Equipped with Yuchai-powered four-cylinder Guosan engine, which ensures that the impact of emissions on the environment while the machine is operating is minimized to the most environmentally friendly level. The use of dual-motor rotation increases the turning torque up to 8500N.m The drilling of water wells at the same time protects the environment and has stronger environmental adaptability.

These series water well drilling rigs are equipped with Kaishan LGCY series or KSCY series portable diesel screw air compressors. The rotor of Kaishan compressor is directly driven, no speed gear, lower speed and higher efficiency, so the compressor can continue to be mechanical The equipment provides stable and efficient power and supports the rig work in a high-speed and stable manner.



ST 180 Meters Depth Water Well Drilling Rig Equipment FAQ



Q1.What is the main function of our hydraulic tricycle tractor water well drilling rig?

Ans.: It has different models used for all kinds of hole diameter and depth, it is the best choice for drilling works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
Q4.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one.

And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.:Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have record s for your clients, and will prefer providing accessories to clients.
