Product Details:
Payment & Shipping Terms:
|
| Product Name: | Shitan Quality Drilling Rig Hot Selling ST 350 Water Well Borehole Drilling Rigs | Application: | Drilling Well,hammer For Drills |
|---|---|---|---|
| Air Pressure: | 1.25-3.5Mpa | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year | Weight: | 9800KG |
| Power: | 92Kw | Usage: | Water Well |
| Hole Diameter: | 140-305mm | Drill Rod Length: | 1.5-6 |
| Drilling Depth: | 350M | Rod Length: | 6M |
| High Light: | Borehole Water Well Drilling Rig Machine,350m Water Well Drilling Rig Machine,3.5Mpa Water Well Drilling Rig Machine |
||

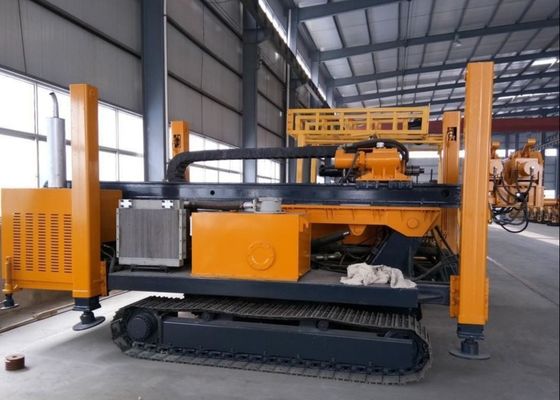

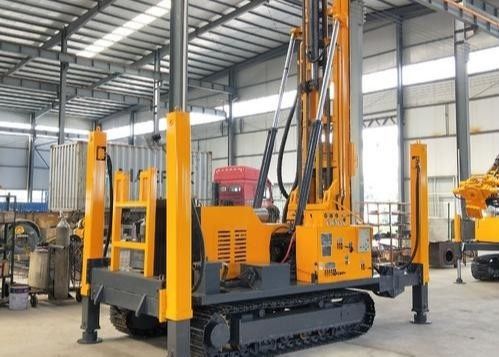

Working Technical Video Support With Air Compressor ST 350 Meters Water Well Borehole Drill Rig
With Air Compressor ST 350 Meters Water Well Borehole Drill Rig Introduction
The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console,easy to operate.
ST 350 Meters Depth Drilling Machine Water Well Drilling Rig Techs
| Technical Parameters of ST350 water well drilling rig | |
| type | ST350 |
| The weight | 9.8T |
| Dimension |
6m×2m×2.5m |
| The hole diameter |
105-305mm |
| Drilling depth | 350m |
| One-time advance length | 6m |
| Walking speed | 2.5KM/H |
| Climbing angles | 30 |
| Power | 92KW |
| Using air pressure | 1.7-3.3MPA |
| Air consumption | 17-35 |
| Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
| Drill pipe diameter | 89mm,102mm, |
| Rig lifting force | 20T |
| Swing speed | 55-115rpm |
| Swing torque | 6200-85000N.m |
ST 350 Meters Water Well Drilling Rig Characteristics
1.High drilling efficiency, power provided by 60KW Yunnei diesel engine
2.High efficiency(20M~40M/Hour), large rotary torque(6000-6500N.m)
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,easy to operating.
FAQ OF ST 350 Meters Water Well Drilling Rig
1. What are the delivery times?
Jinzhou City Shitan Machinery is a professional drilling rig factory in North China ,we can do OEM service uopn your exact demand depth and hole diameters with high quality and competitive price.Our main products are Pneumatic Borewell Machine, water well drilling rig,core drill rig,drilling bits,geological drillig machine,drilling mud pump ,soil test drilling machine,track transporter ect.
