Diesel Small Hydraulic Core Drill Rig For Exploration

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

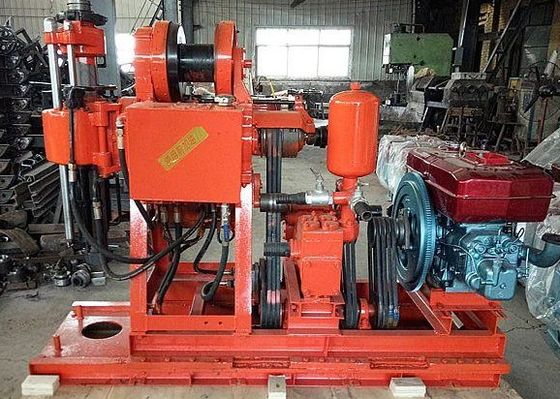

Diesel Small Hydraulic Core Drill Rig For Exploration

Diesel Small Hydraulic Core Drill Rig For Exploration
Diesel Small Hydraulic Core Drill Rig For Exploration
video play

Large Image :  Diesel Small Hydraulic Core Drill Rig For Exploration

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Model Number: GK-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Certification: ISO9001 Product Name: GK 200 Small Hydraulic Drilling Machine Customized Portable Core Drilling Rigs For Exploration
Hole Diameter: Customized Drilling Depth: 200 Meters
Voltage: 380v Rated Boring Diameter: 200m
Power Type: Diesel Condition: New
Warranty: 1 Year Weight: 500kg
Diameter: Customized Application: Water Well Drilling ,Geological Exploration
After-sale Service: Video Support
High Light:

Hydraulic Core Drill Rig For Exploration

,

small Core Drill Rig For Exploration

,

Diesel Core Drill Rig

GK 200 Small Hydraulic Drilling Machine Customized Portable Core Drilling Rigs For Exploration





GK 200 Small Hydraulic Core Drilling Rigs Introduction



1. Construction drilling of the projects :water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Core drilling, mining exploration, or exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling.



GK 200 Small Hydraulic Core Drilling Rigs Technical Data



Rated drilling depth 200m
Rated boring diameter 200mm
Vertical shaft rotation speed (4 shifts) 118, 236, 505, 1010.r/min
Vertical shaft max. output torque 1500N*m
Max. hositing weight single line) 17KN
Drilling rod diameter 42mm
Drilling dip angle 90~75°
Drill outside diameter (L*B*H) 1433*697*1273mm
Drill weight 500kg
max. boring diameter 300mm



GK 200 Small Hydraulic Core Drilling Rigs Advantages



1. With the hydraulic feeding mechanism, improve the drilling efficiency, reducing the labor intensity of workers.
2. The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency convenient operation, safe and reliable.
3. Furnished with hole bottom pressure gauge pressure indicator, and easy to master the status inside the hole.
4. The handle centered, convenient operation.
5. The drilling machine has the advantages of compact structure, small volume, light weight, convenient move.



FAQ GK 200 Small Hydraulic Core Drilling Rigs



Q1. Are you factory or trading company?

A1. We are factory with professional drilling rigs production.

Q2. Why should I choose your products?

A2. Our products are high quality and low price.

Q3. The logo and the color can be customized?

A3. Yes, we welcome you to sample custom.

Q4. Any other good service your company can provide?

A4. Yes,we can provide good after-sale and fast delivery.



Diesel Small Hydraulic Core Drill Rig For Exploration 0Diesel Small Hydraulic Core Drill Rig For Exploration 1Diesel Small Hydraulic Core Drill Rig For Exploration 2
