ST 30 Meters OEM Core Drill Rig Geological Exploration Machine

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

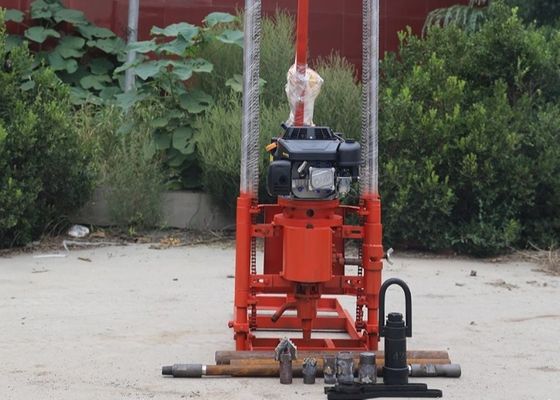

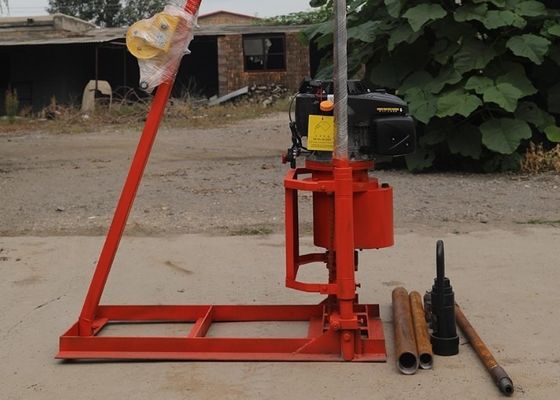

ST 30 Meters OEM Core Drill Rig Geological Exploration Machine

ST 30 Meters OEM Core Drill Rig Geological Exploration Machine
ST 30 Meters OEM Core Drill Rig Geological Exploration Machine

Large Image :  ST 30 Meters OEM Core Drill Rig Geological Exploration Machine

Product Details:

Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST 30

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: standard exporting package
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 50000 sets per year
Detailed Product Description
Product Name: ST 30 Meters OEM Geological Exploration Core Drilling Rig Machine Color: Customer Required
Power Type: Diesel Or Motor Usage: Water Well,railways, Core Drilling
Warranty: 1 Year Condition: New
Drilling Depth: 30 Meters Drilling Diameter: 30 Mm
After Sale Service: Video Support
High Light:

Core Drill Rig oem

,

30m Core Drill Rig

,

30 meters Core Drill Rig machine

ST 30 meters OEM Geological Exploration Core Drilling Rig Machine





ST 30 Core Drilling Rig Machine Product Description


ST 30  Core Drilling Rig Machine is mainly used s a kind of drilling machine mainly for drilling rocks. The machine can widely be used in large diameter hole drilling operations of small and medium-sized mines, road construction, water conservancy and rock excavation, as well as drilling bolt holes in slope support, tunnel support and foundation pit support.



ST 30  Core Drilling Rig Machine Technical Parameter

Technical Parameters Unit ST-30
Drilling depth M 30
Drilling method   Air shock, mud drilling, auger
Drilling diameter Air shock drilling mm 70-90
Mud drilling mm 75-90
Drill pipe (diameter × length) Air shock drilling mm Ø60×1500
Mud drilling mm
Rated torque N·M 800-900
Drilling speed range r/min 0-135
Add pressure KN 5.5-6
Drilling speed rangeDrilling speed range KN 12-16
Drilling tool maximum lifting speed M/s 0.71-0.81
Engine power Kw 35
Rotating speed r/min 3600
flow L/min 0-60
Work pressure MPa 20
Air compressor unit model   Fuel injection screw
Air volume M³/min 3.8
Work pressure MPa 0.8
System oil temperature   15-80



ST 30 Core Drilling Rig Machine Applications



1.1  Engineering geological investigation

1.2  Geological core drilling, physical prospecting.

1.3  Small grout Confucius, drill hole drilling.

1.4  Small well drilling.



ST 30 Core Drilling Rig Advantages



Portable and easy operatation,made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.

The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods.

can perform no stopping and falling rod. And it has the advantages of high work efficiency


ST 30 Meters OEM Core Drill Rig Geological Exploration Machine 0ST 30 Meters OEM Core Drill Rig Geological Exploration Machine 1
