Well Chassis Crawler Drilling Rig For 150m Depth

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

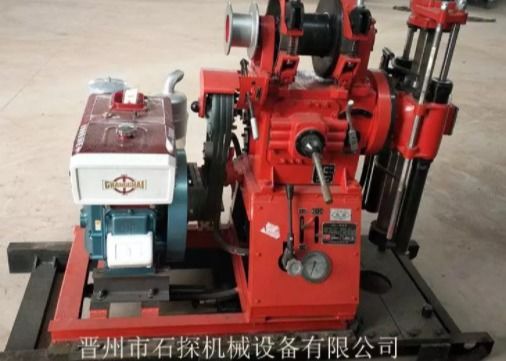

Well Chassis Crawler Drilling Rig For 150m Depth

Well Chassis Crawler Drilling Rig For 150m Depth
Well Chassis Crawler Drilling Rig For 150m Depth Well Chassis Crawler Drilling Rig For 150m Depth

Large Image :  Well Chassis Crawler Drilling Rig For 150m Depth

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GXY-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Core Drill Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 150m Dimension(L*W*H): 1450*970*1280
Drill Pipe Diameter: 42/50 Hole Diameter: 110m
Drilling Angle: 90°-75° Weight(without Power Unit): 500kg
High Light:

Chassis crawler drilling rig

,

Well crawler drilling rig

,

150m Depth crawler drilling rig

Well Drilling Rig Gxy-1c Crawler Drilling Rig Crawler Chassis Drilling Rig





Introduction to drilling rig:



Gxy-1c drilling rig is suitable for engineering geological survey, general survey and exploration of solid ore deposits, blasting holes and inspection holes of various concrete structures. According to the different strata, diamond, cemented carbide, screw and other bits can be selected for drilling.

Introduction to drilling rig parameters:

Type GXY-1
Hole depth 150m
Hole diameter 110mm
Final hole diameter 75mm
Diameter of drill rods Φ42/50mm
Drilling angle 90°-75°
Dimension(L*W*H) 1640*1030*1440mm
Weight(without power unit) 500KG
Rotary head Direct rotary speed 142;285;570 r/min
Feeding stroke 450mm
Lifting capacity 25kN
Feeding capacity 15kN
Max. Torque 1200N.m
Hoist Running speed of drum 55;110;220 r/min
Max. lifting capacity, single line 10KN
Diameter of steel wire rope 9.3mm
Capacity of drum 27m
Mud pump(Horizontal Single-acting) Max. displacement 77L/min
Max. pressure 1.2Mpa
Stroke 100m
Stroke per Minute 96min
Diameter of liner 80mm
Oil pump (YBC-12/80 Gear pump) Pressure 8Mpa
Displacement 8ml/r
Speed 1500r/min
Power unit Electric motor Model Y132M-4 7.5KW,1440r/min
Diesel engine Model S1100 10.3KW,2200r/min



The main features are as follows:


1. The rig has high input power, high output torque and strong drilling ability.
2. The high output speed of the drilling rig is mainly suitable for diamond core drilling and engineering geological investigation.
3. The drilling rig is equipped with a rotator, and the body is an integral casting, which improves the structural strength.
4. It is equipped with hydraulic feeding mechanism and hydraulic chuck clamping mechanism at the upper end of vertical shaft to improve drilling efficiency and reduce labor intensity.
5. In order to extend the life of the power head, the hydraulic control of the power head is used to move back to make the frame move away from the orifice.
6. The drilling rig is equipped with active drill pipe, which has high drilling efficiency, safety and reliability.
7. The rig adopts double disc normally closed friction clutch with flexible opening and closing and convenient operation and adjustment.
8. The gearbox of drilling rig adopts automobile gearbox structure, single handlebar transmission and interlock mechanism, so it is easy to operate.
9. If the drill is separated from the water pump and the water pump and the drill is separately equipped with power, the output torque of the drill can be improved, especially when entering deep hole drilling, the power will not drop, which will cause the contradiction of the water pump and avoid accidents in the hole.
10. The drilling rig is compact in structure, small in volume and light in weight, with the largest part less than 100kg, which is convenient for disassembly and handling, and is suitable for working in hilly or mountainous areas.
11. It can be equipped with large hole vibrator and control system according to the need to improve the ability of handling accidents.
12. The rig is equipped with a 7.0m light pipe drill tower with simple structure and convenient installation and displacement.



Well Chassis Crawler Drilling Rig For 150m Depth 0Well Chassis Crawler Drilling Rig For 150m Depth 1
