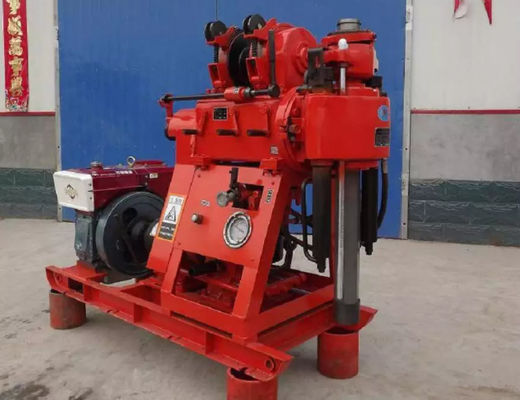

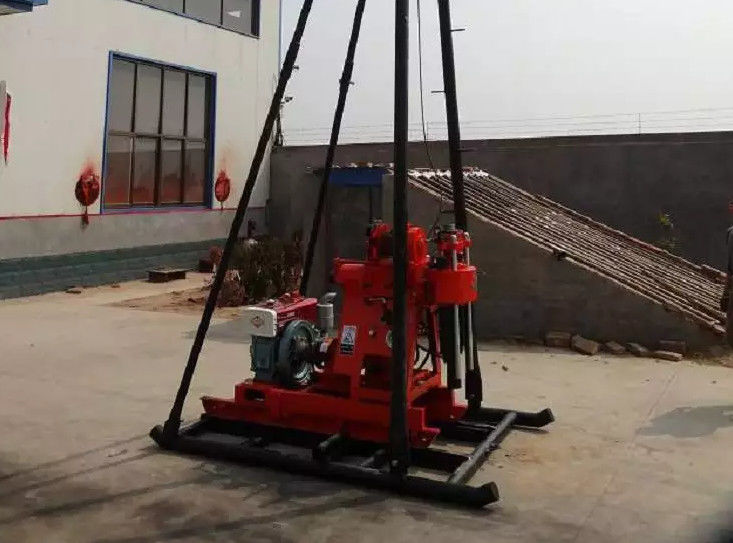

Full Hydraulic Xy-1a 100m Depth Core Drill Rig

Full Hydraulic Xy-1a 100m Depth Core Drill Rig
Full Hydraulic Xy-1a 100m Depth Core Drill Rig Full Hydraulic Xy-1a 100m Depth Core Drill Rig

Large Image :  Full Hydraulic Xy-1a 100m Depth Core Drill Rig

Product Details:

Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Core Drill Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 30-180m Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Borehole Dip Angle: 90°~75
Spindle Speed: 1010、790、470、295、140(r/min) Rated Pressure: 12.5Mpa
Model(diesel Engine): 1105 Rated Power: 18KW
High Light:

Xy-1a Core Drill Rig


100m depth Core Drill Rig


Xy-1a Rig

Parameters Of Full Hydraulic Xy-1a Core Drill, Xy-1a Hydraulic 100m Drilling



Introduction of Water Well Drilling Rig


Xy-1a drilling rig is designed on the basis of XY-1 drilling rig. It is a kind of hydraulic feeding portable drilling rig, which is suitable for engineering geological exploration of industrial and civil buildings, railways, hydropower, transportation, bridges, dam foundations and other buildings.Scope of application1. It is suitable for general survey, geophysical exploration, road and building exploration and drilling engineering.2. Diamond, alloy, steel sand and steel grain bits can be selected for drilling according to different formations.3. It can drill sandy clay and bedrock of grade 2-9.


Water Well Drilling Rig parameters


XY-1A Type
Drill Swivel Head

Drilling depth



Spindle speed



Hole diameter


Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution



Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
SIZE 1620*970*1560mm


main features

1. It is equipped with oil pressure automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2. The drilling rig adopts ball clip type clamping mechanism, which can reverse the rod, and is easy to operate and safe.
3. The active drill pipe is large, the transmission torque is large, and it is not easy to break.
4. It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is easy to master the situation in the hole.
5. Centralized handle, convenient operation and safety.
6. The structure is compact. The drilling rig, water pump and diesel engine are all installed on the same base, occupying a small space.
7. Light weight, strong decomposition, easy to operate, suitable for plain and mountain work.

1. Q: Are you a factory or a trading company?
A: We are trading companies and manufacturers. Extensive experience in machinery and equipment.
2. Q: How long is your delivery time?
A: It is according to the model and quantity. Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you
want to customize the machines.
3. Q: What are your payment terms?
A: We accept L/C, T/T and Western union is available. etc.
4. Q:Besides machines,can you provide tools of machines?
A:Yes.Both machines and tools can be provided in our factory.Our company has an independent spare-part departments.If you just only need tools of your machines,we can also provide you even if your machine is originally not from our factory. Just tell us your needs and we can make a free design for you.
5.Q: Is it possible to manufacture products according to the drawings provided by customers?
A: Yes, we can provide customized services, you can provide us with ideas or drawings, and we will do our best to meet
your requirements.
