| Certification: | ISO9001 | Name: | Soil Test Drilling Machine |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Usage: | Water Well | Voltage: | 380V |
| Power(W): | 15KW | Weight: | 626KGS |
| Other Name: | Drill Rig | Drill Rod Diameter: | 42, 50，89 |
| Condition: | New | Equipment Size(L * B * H): | 1730 * 860 * 1360 (mm) |
| High Light: | ODM Soil Drilling Machine,380V Soil Drilling Machine,150m depth soil testing drill rigs |
||
Big Inlet Hose Soil Drilling Machine In India Soil Testing Drill Rigs For Sale Gold Mining Drill Equipment

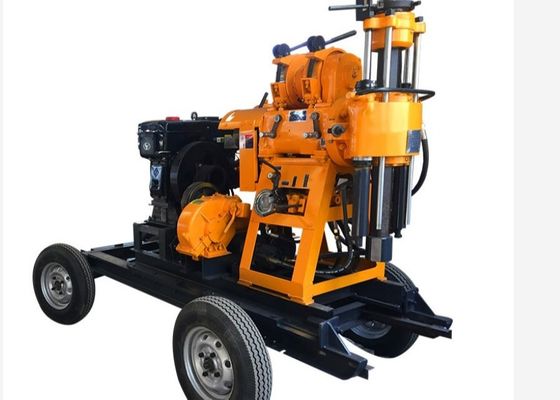

Soil Test Drilling Machine Machine for Geological Exploration

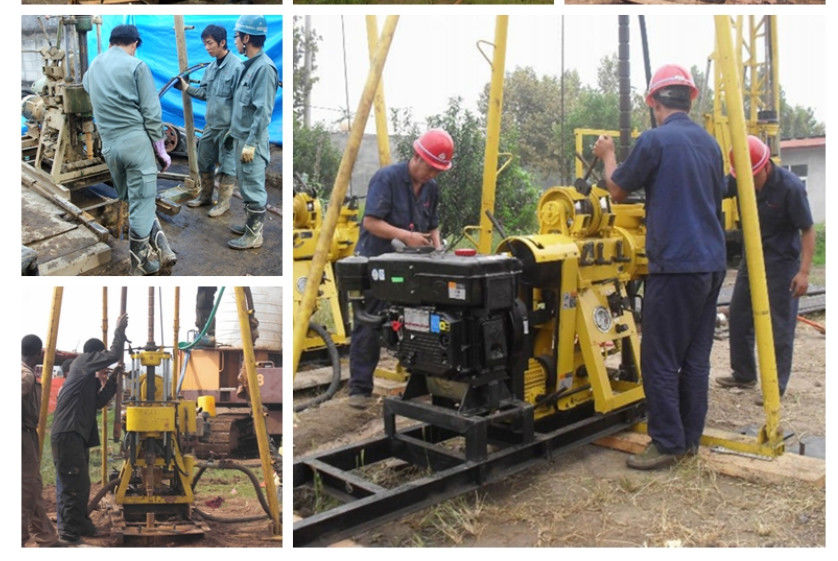

Series hydraulic drilling rig is a light weight drilling rig, widely used in general geological exploration of railway, road, bridge, dam and tall building base, geological core drilling, small grouting holes, blasting holes, civil wells, and earth central air conditioning wells, etc.
Soil Test Drilling Machine parameters
| Drilling diameter(mm) | 75,91,110,130,150,300 |
| Drilling depth (m) | 200,150,100,70,50,30 |
| Drill pipe diameter (mm) | 42,50 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1730 * 860 * 1360 (mm) |
| Rig weight (except engine) | 700 |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 115,230,505,1010 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 1.5 |
| Winch assembly | |
| Winch maximum lifting force (single rope) | 20 |
| Reel speed (r/min) | 20,39,85,170 |
| Reel circumferential speed(m/s) | 0.172,0.345,0.738,1.476 |
| Reel diameter(mm) | 140 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 40 |
| Brake diameter(mm) | 278 |
| Brake band width (mm) | 50 |
| Oil pump | |
| Oil pump type | YBC -20/125 |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 800-2500 |
| Diesel engine or motor | |
| Diesel engine | 1115 |
| Rated power (KW) | 16.2 |
| Rated speed (r/min) | 2200 |
| Rated pressure(Mpa) | 12.5 |
| Motor type | Y160M - 4 |
| Rated power (KW) | 11 |
| Rated speed (r/min) | 1460 |
Soil Test Drilling Machine characteristic
1. Geological survey work in a highly difficult area that is small and light and convenient for high altitudes
2. Adopting an automatic hydraulic feed mechanism to increase drilling efficiency and reduce labor intensity of workers.
3, Using 8 HP high-efficiency diesel engine as a power for you to export a steady stream of strong power.
3, Application of positive and negative four-speed operation to facilitate a variety of terrain exploration drilling
4. The four-axis bearing positioning of the vertical shaft box ensures that the gyrator is rigid enough to deal with complex geological conditions such as gravel layer and pebble layer.
5. The machine adopts the national patented technology of the taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free.
