Automatic Hydraulic Crawler Coring 30M Deep Core Drilling Equipment

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

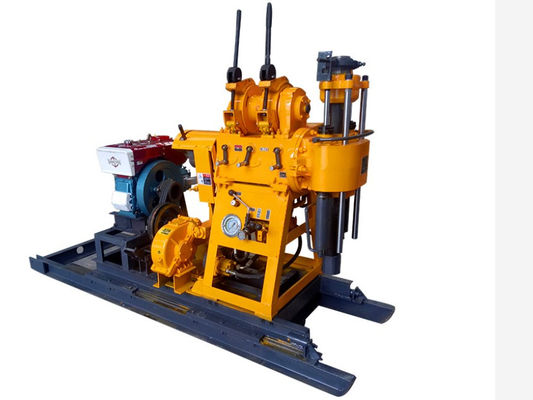

Automatic Hydraulic Crawler Coring 30M Deep Core Drilling Equipment

Automatic Hydraulic Crawler Coring 30M Deep Core Drilling Equipment
Automatic Hydraulic Crawler Coring 30M Deep Core Drilling Equipment Automatic Hydraulic Crawler Coring 30M Deep Core Drilling Equipment

Large Image :  Automatic Hydraulic Crawler Coring 30M Deep Core Drilling Equipment

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Core Drill Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 30-180m Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Borehole Dip Angle: 90°~75
Spindle Speed: 1010、790、470、295、140(r/min) Rated Pressure: 12.5Mpa
Model(diesel Engine): 1105 Rated Power: 18KW
High Light:

30M Deep crawler drilling rig

,

ODM crawler core drilling equipment

,

30M deep core drilling equipment

Automatic Hydraulic Crawler Coring Deep Core Drilling Rig Machine





Introduction of Water Well Drilling Rig



Hydraulic core drilling rig is mainly used for geological general investigation and exploration,kindly of hole in concrete structure,road and tall building foundation exploration,civil wells etc.The drilling machine with light weigh,suitable for different working environment,like plain or valley places.Handle rack and hydraulic power syatem keeps the higher efficiency.



Water Well Drilling Rig parameters



XY-1A Type
Drill Swivel Head

Drilling depth



Max.150m

Spindle speed



1010,790,470,295,140(r/min)

Hole diameter



Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution

121,76,36(r/min)



Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm



Drilling rig Applications



(1)widely used in drilling large diameter blast hole in mining, road, national defence,water conservancy and so on

(2)necessary drill equipment for prophase surface mine project.



Drilling rig Characteristics



(1)light weight, easy portable, suitable for different working environment, like plain or valley places.

(2)Handle rack, easy operation, safe for body.

(3)Hydraulic power drilling device, high effiency.

(4)Fast Drilling speed; horizontal and vertica direction drill.


FAQ

1. Q: Are you a factory or a trading company?
A: We are trading companies and manufacturers. Extensive experience in machinery and equipment.
2. Q: How long is your delivery time?
A: It is according to the model and quantity. Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you
want to customize the machines.
3. Q: What are your payment terms?
A: We accept L/C, T/T and Western union is available. etc.
4. Q:Besides machines,can you provide tools of machines?
A:Yes.Both machines and tools can be provided in our factory.Our company has an independent spare-part departments.If you just only need tools of your machines,we can also provide you even if your machine is originally not from our factory. Just tell us your needs and we can make a free design for you.
5.Q: Is it possible to manufacture products according to the drawings provided by customers?
A: Yes, we can provide customized services, you can provide us with ideas or drawings, and we will do our best to meet
your requirements.

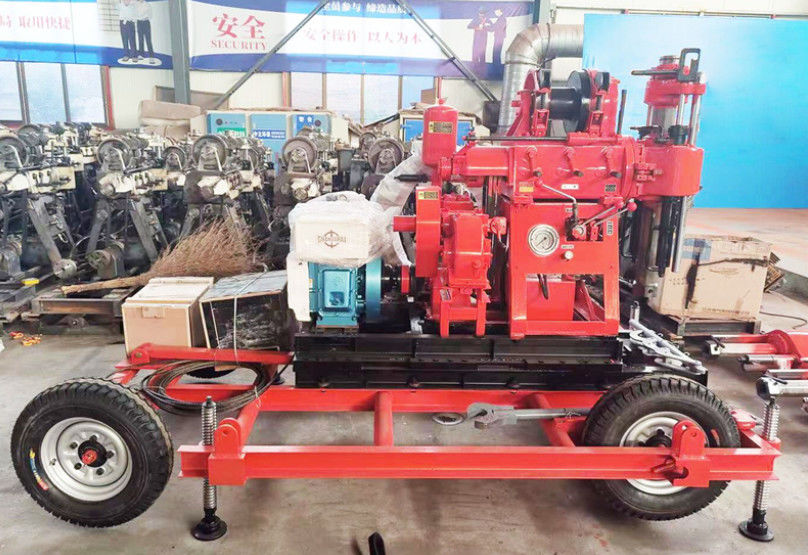

Automatic Hydraulic Crawler Coring 30M Deep Core Drilling Equipment 0Automatic Hydraulic Crawler Coring 30M Deep Core Drilling Equipment 1
