Soil Sample And Rock Sample Drilling SPT Test Machine

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

Soil Sample And Rock Sample Drilling SPT Test Machine

Soil Sample And Rock Sample Drilling SPT Test Machine
Soil Sample And Rock Sample Drilling SPT Test Machine Soil Sample And Rock Sample Drilling SPT Test Machine

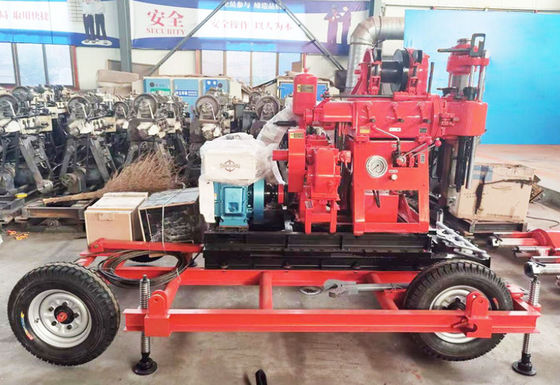

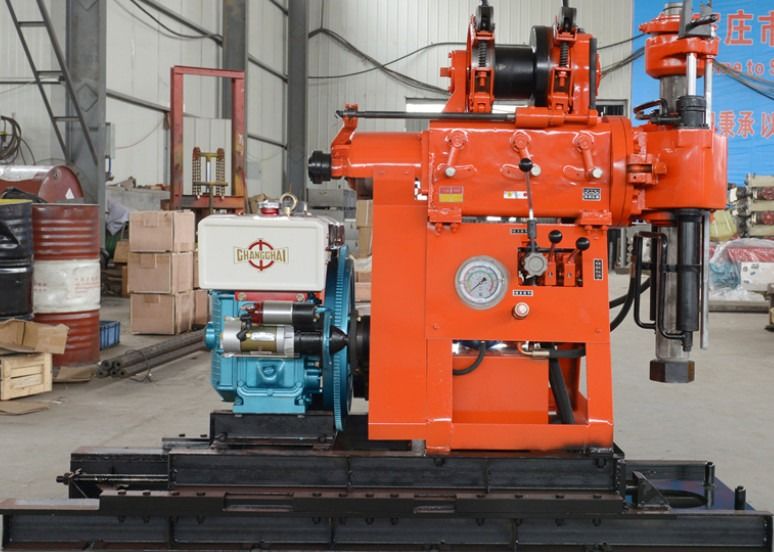

Large Image :  Soil Sample And Rock Sample Drilling SPT Test Machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Type: Crawler Mounted Drill Rig Color: Red Yellow
Usage: Water Well Application: Soil Sampling
Power Type: Diesel Drilling Depth: 100
Mud Pump: BW-160 Drilling Angle: 90° ~75°
Warranty: 1 Year Voltage: 220V/380V
High Light:

Crawler Mounted SPT Test Machine

,

Soil Sample Drilling SPT Test Machine

,

Rock Sample Drilling SPT Test Machine

Geotechnical Drilling Supplies/Soil Sample And Rock Sample Drilling And SPT Test Machine


Introduction to Crawler Mounted Drill Rig


Geological Core Sample Drilling Rig / Small Bore Well Drilling Rig is a new type of vertical spindle machine manufactured by Glorytek Industry which a diesel engine or motor may be chosen as power. It is primarily used with diamond drill bit or carbide drill bit for the
drilling in solid mineral deposit as well as those in engineering geotectonic survey, foundation pile hole and water well hole.



1.The Crawler Mounted Drill Rig Information:



Drilling Depth: 100m,70m,50m,30m
The Hole Diameter 75mm,91mm,110mm
Kelly 52*59*4200mm
Drill Pipe Diameter 42mm
Drilling Angle 90°-75°
Rig Dimensions(Length*Width*Height) 1640mm*1030mm*1440mm
Weight (excluding power) 500kg
Swivel Head
Spindle speed(3-speed) 142/285/570 r/min
Spindle stroke 450

upward displacement speed

of idling vertical spindle

0.05m/s

Downward displacement speed

of idling vertical spindle

0.067m/s
Spindle pull-down max 15KN
Spindle lifting capacity max 25KN
Gyrator
The Vertical Speed (fore steps) 71,142,310,620 r/min
The Vertical Stroke 450mm
The Maximum Speed Of Vertical Load 0.05m/s
The Vertical Load Down The Maximum Moving Speed 0.067m/s
Max Feeding Force 15KN
Max Lifting 25KN
The Vertical Maximum Moving Speed 1.25 KN.M
Hoist
Max.lifting capacity(1-speed,single rope) 10KN
Cable volume (number) of hoisting drum 27m
Wire rope dia. 9.3mm
Mud Pump
Types Horizontal reciprocating single-acting piston pump
Displacement max 95 L/min
Equipped with motor 77 L/min
Allowable working pressure max 1. 2Mpa
Continuous working pressure 0.7Mpa
Suction pipe dia 32mm
Discharge pipe dia 25mm

The rig has the following characteristics

1. A reasonable range of rotation speed is selected. The rotation speed is divided into eight stages, with centralized speed change and mutual self-locking. It is suitable for drilling rig sampling and pile hole construction.
2. The rig has two reverse speeds, which is convenient to handle faults safely.
3. The rotary chuck adopts the manual ball chuck, which is reliable in clamping, does not damage the active drill pipe, and can reverse the rod without stopping.
4. Oil pressure feeding, easy operation, high drilling efficiency and low labor intensity.
5. The control handle is less, the layout is reasonable, and the operation is flexible and reliable.
6. The double disc normally closed friction clutch is adopted, which is flexible in opening and closing, and easy to adjust and use. Equipped with fore-and-aft moving oil cylinder, the rotator moves 465mm backward, which brings a lot of convenience to the following drilling tools.
7. The drilling rig is light in weight, compact in structure and convenient in assembly and disassembly. It is suitable for drilling in hilly or

mountainous areas.

1. Compact mechanical transmission structure, lightweight, vertical spindle for large through hole diameter with hexagonal drive
drilling rod, ensured torque transmission.
2. Higher rotating speed and rational scope, adaptable for the drillings with small diameter diamond drill bit or large diameter
carbide drill bit and other engineering hole drillings.
3. During the hydraulic controlled feeding process, both the pressure and speed of feeding can be regulated to meet the
requirements of different stratum drillings.
4. Less and centralized handles, easy operation.
