ST 50 Small Portable Customized SPT Soil Test Drilling Machine

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

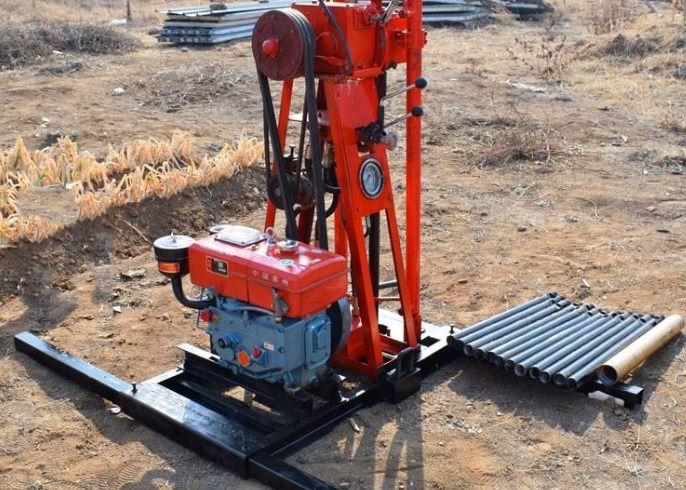

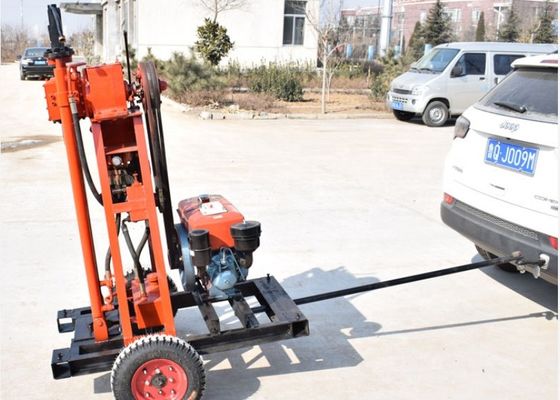

ST 50 Small Portable Customized SPT Soil Test Drilling Machine

ST 50 Small Portable Customized SPT Soil Test Drilling Machine
ST 50 Small Portable Customized SPT Soil Test Drilling Machine ST 50 Small Portable Customized SPT Soil Test Drilling Machine

Large Image :  ST 50 Small Portable Customized SPT Soil Test Drilling Machine

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: ST 50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 3 days
Payment Terms: T/T, Western Union
Supply Ability: 20000 sets per year
Detailed Product Description
Product Name: ST 50 Small Portable Drilling Rigs Customized Soil Testing Drilling Machine Hole Diameter: Customized
Drilling Depth: 50 Meters Voltage: 380v
Application: Soil Testing Drilling Machine,Water Well Drilling ,Geological Exploration OEM: Acceptable
Certification: ISO9001 Power Type: Diesel
Condition: New Warranty: 1 Year
Weight: 145kg Diameter: Customized
High Light:

SPT Soil Test Drilling Machine

,

50m Depth Soil Test Drilling Machine

,

Soil Test Drilling Machine ODM

ST 50 Small Portable Drilling Rigs Customized Soil Testing Drilling Machine





ST 50 Soil Testing Drilling Machine​ Introduction



The rig is suitable for geological drilling in complex terrains such as mountains, hills, and rivers, engineering geological survey of buildings, and drilling of blast holes. In order to meet the needs of different users, the rig can be equipped with one of the three powers of diesel engine, gasoline engine or motor. The default is diesel engine power.



ST 50  Soil Testing Drilling Machine​ Technical Data



product name Spes
Model
drilling machine
engine
diesel engine

weight
145KG

dimensions
1250*650*1050mm

drill pipe diameter
38mm

drilling diameter
46mm
60mm
75mm

drilling depth
50-60m
40-50m
30-40m



ST 50  Soil Testing Machine Feature:



1.Equipped with diesel engine or single-phase and three-phase electric power.
2, Wide usage range: the dimension is less than 1 square meters, height can be controlled within 2.6 meters, weight is about 100kg, so that can be outdoor operations, but also for indoor use.
3, Can borehole with spiral drill pipe and drag bit , use core barrel for sampling, water circulation drill for water wells.

The machine has the advantages of small dimension, weight is 100 kg, easy to carry and to operate in the narrow space, it is best mini exploration and drilling operators assistant! the rigs has design with Reasonable structure, simple, easy to handle, easy to use, recommended diameter of 120 mm or less, depth of about 80 meters. total height of less than 2.6 meters, can work in the room. can be drill 10 to 20m in soft formation.



ST 50  Soil Testing Drilling Machine FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock. or it is 7-10 days if the goods are not in stock

Q: Do you provide samples ? is it free or extra ?

A:Sorry, free sample is not available.

Q: What is your terms of payment ?A:T/T 30% in advance, then pay the 70% T/T before shipping.

Q:How to order?

A:We will recommend you the most suitable model according to information you offered.



ST 50 Small Portable Customized SPT Soil Test Drilling Machine 0ST 50 Small Portable Customized SPT Soil Test Drilling Machine 1
