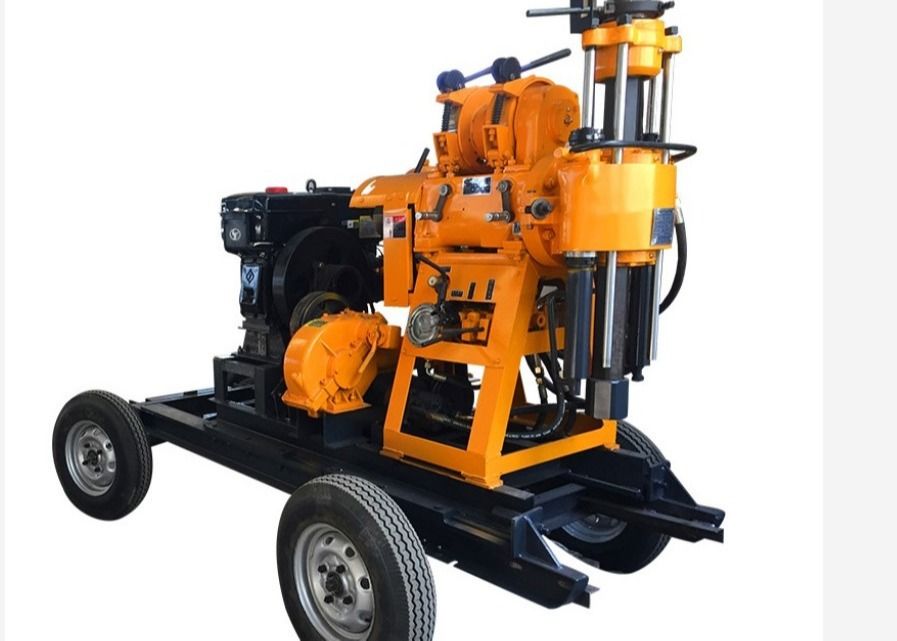

Rock Core 100m Soil Investigation Drilling Machine

Rock Core 100m Soil Investigation Drilling Machine
Rock Core 100m Soil Investigation Drilling Machine Rock Core 100m Soil Investigation Drilling Machine

Large Image :  Rock Core 100m Soil Investigation Drilling Machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Geological Drilling Rig Machine Power Type: Diesel
Usage: Water Well,railways, Core Drilling Drilling Depth: 100m
Dimension(L*W*H): 1640*1030*1440mm Drill Pipe Diameter: 42mm
Borehole Dip Angle: 90°~75 Rated Pressure: 12.5Mpa
Model(diesel Engine): 1105 Rated Power: 18KW
Color: Yellow Or As Your Rquest Drilling Angle: 90 ~75°
High Light:

ODM soil investigation drilling machine

,

100m soil investigation drilling machine

,

100m portable soil drilling machine

Soil Testing Rock Core Drilling Machine Hole Core Drilling Machine Core Drilling Rigs





Description of water well drilling machine:



XY-1 series hydraulic core drilling rig is mainly used for geological general investigation and exploration, kinds of hole in concrete structure, road and tall building foundation exploration, river levees, subgrade grouting hole drilling and direct grouting, civil wells and earth temperature central air conditioner, etc. 200m depth drilling rig with light weight, suitable for different working environment, like plain or valley places. Handle rack and hydraulic power system keeps the higher efficiency.

Geological Drilling Rig Machine technical parameter



Drilling Rig
Drilling diameter(mm) 110
Drilling depth (m) 100
Drill pipe diameter (mm) 42
Drilling angle(°) 90~75
Equipment size(L * B * H) 1640* 1030 * 1440 (mm)
Rig weight (except engine) 500
Gyrator
Spindle speed (four gear) (r/min) 142,285,570
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 0.5
Winch assembly
Winch maximum lifting force (single rope)(KN) 10
Reel speed (r/min) 55,110,220
Reel circumferential speed(m/s) 0.42,0.84 ,1.68
Reel diameter(mm) 145
Wire rope diameter(mm) 9.3
Wire rope density (m) 27
Brake diameter(mm) 230
Brake band width (mm) 50
Water pump
Pump type Horizontal single cylinder double acting
Maximum displacement (motor)(L/min) 95(77)
Work pressure (Mpa) 0.7
Cylinder diameter (mm) 80
Piston stroke(mm) 100
The maximum allowable pressure (Mpa) 1.2
Oil pump
Oil pump type Gear pump
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine ZS1100
Rated power (KW) 12.1
Rated speed (r/min) 2200
Rated pressure(Mpa) 11
Motor type Y160M - 4


Main feature:


1. Core drilling rig with hydraulic automatic feed mechanism, improve drilling efficiency and reduce labor intensity.
2. The ball clamp clamping mechanism is used instead of the chuck, which can realize non-stop inverting of the rod, convenient operation, safe and stable.
3. Hydraulic core drilling rig equipped with a pressure gauge at the bottom of the hole for easy control of the situation in the hole.
4. Compact structure, centralized handle, small footprint, light weight, strong decomposability (reassemble at the construction site), and easy to move. Suitable for plain or mountainous operations.



mountainous areas advantage.



1. Power: can be diesel engine or electric motor for choice
2. Trailer: can be fixed type or trailer mobile type.
3. Track: can make as track type.
4. Drill bit: can be alloy bit or diamond bit.
5. Double-layer mobile structure: can make as double layer, easy to drill.
6. Diesel engine: can be manual start or electric start.
7. Mud pump: can customize as BW-160 independent type.
