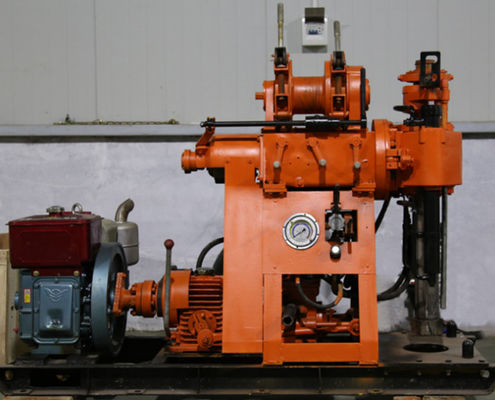

GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed

GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed
GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed

Large Image :  GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Name: Soil Test Drilling Machine Type: Rotary Drilling Rig
Power Type: Diesel Usage: Water Well
Voltage: 380V Power(W): 15KW
Weight: 626KGS Certification: ISO9001
Other Name: Drill Rig Drill Rod Diameter: 42, 50,89
Condition: New Equipment Size(L * B * H): 1730 * 860 * 1360 (mm)
High Light:

42MM Rod Diameter Geological Drilling Rig

,

Geological Drilling Rig 200M

,

Geological Drilling Rig ISO Passed

GK-200 Small Water Well Drilling Rig Hole Core Drilling Exploration Geological Machine





Soil Test Drilling Machine Machine for Geological Exploration



GK200 It is widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.



Soil Test Drilling Machine parameters



Drilling diameter(mm) 75,91,110,130,150,300
Drilling depth (m) 200,150,100,70,50,30
Drill pipe diameter (mm) 42,50
Drilling angle(°) 90~75
Equipment size(L * B * H) 1730 * 860 * 1360 (mm)
Rig weight (except engine) 700
                                                         Gyrator
Spindle speed (four gear) (r/min) 115,230,505,1010
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 1.5
Winch assembly
Winch maximum lifting force (single rope) 20
Reel speed (r/min) 20,39,85,170
Reel circumferential speed(m/s) 0.172,0.345,0.738,1.476
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 40
Brake diameter(mm) 278
Brake band width (mm) 50


                                                        Oil pump
Oil pump type YBC -20/125
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine 1115
Rated power (KW) 16.2
Rated speed (r/min) 2200
Rated pressure(Mpa) 12.5
Motor type Y160M - 4
Rated power (KW) 11
Rated speed (r/min) 1460



Drill Rig Applicate:



1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge,
water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Core mining exploration, Or exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling.



Characteristics of drilling rig



GK-200 water well drilling machine has a hydraulic automatic feed mechanism, improve drilling efficiency,

reduce manual labor workers.

2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,

easy to operate, safe and reliable.

3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

4 The handle centralized, easy to operate.

5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.

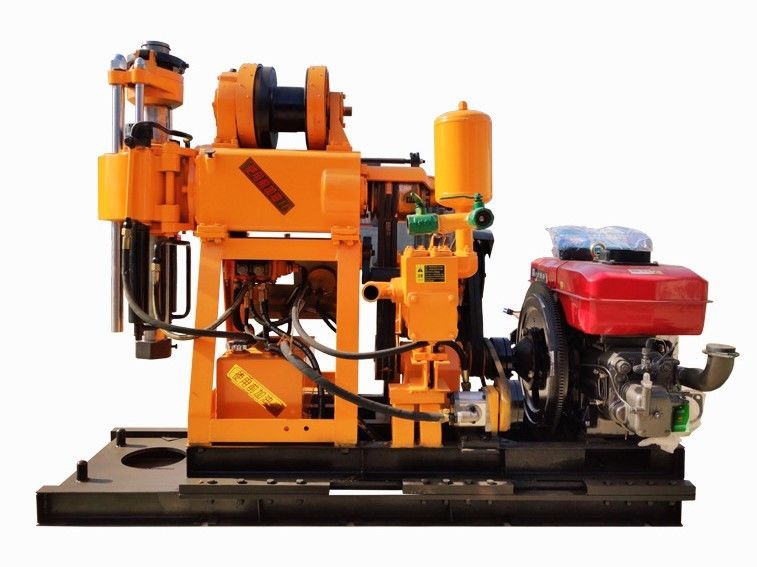

GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed 0

GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed 1GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed 2





GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed 3GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed 4
