Product Details:
Payment & Shipping Terms:
|
| Product Name: | 150 Meters Depth Small Hydraulic Drilling Rig XY-1A Core Drill Rig | Drilling Depth: | 150 Meters |
|---|---|---|---|
| Power Type: | Diesel Power | Machine Weight: | 480kg |
| Application: | Water Well,railways, Core Drilling | Dimension(L*W*H): | 1620*970*1560mm |
| Drill Pipe Diameter: | 42mm | Borehole Dip Angle: | 90°~75 |
| Spindle Speed: | 1010、790、470、295、140（r/min） | Rated Pressure: | 12.5Mpa |
| Model(diesel Engine）: | 1105 | Rated Power: | 18KW |
| WEIGHT: | 600KG | ||
| High Light: | xy-1a core drill rig,150m core drill rig,150m core drilling rig |
||

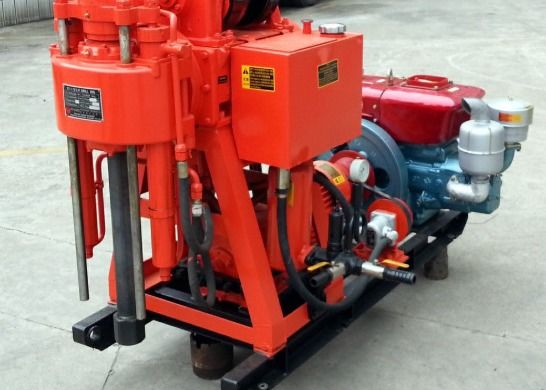

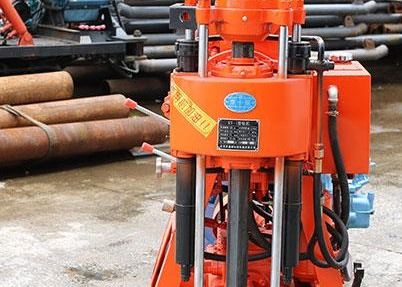

150 Meters Depth Small Hydraulic Drilling Rig XY-1A Core Drill Rig
XY-1A Core Drill Rig Description
The XY-1A drilling rig is a high-speed and portable hydraulically fed drilling rig.It is for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.
XY-1 A Core Drill Rig Tech Data
| XY-1A Core Drill Rig | |||
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm | ||
XY-1A Core Drill Rig Main Advantages
1. hydraulic feed mechanism, improve drilling efficiency and reduce the labor intensity of workers.
2. an upper ball clamping mechanism and a hexagonal active drill rod, which can be used to
reverse the rod without stopping the machine. The work efficiency is high, the operation is convenient, and it is safe and
reliable.
3. a pressure gauge at the bottom of the hole, indicating the pressure to facilitate the grasp of the situation in the hole.
4. The handle is convenient for centralized operation.
5. a compact structure, small size, lightweight, strong decomposability, easy to move, suitable for working in plains or mountainous areas.
