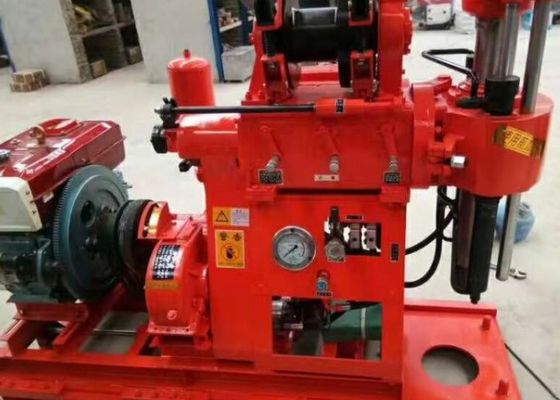

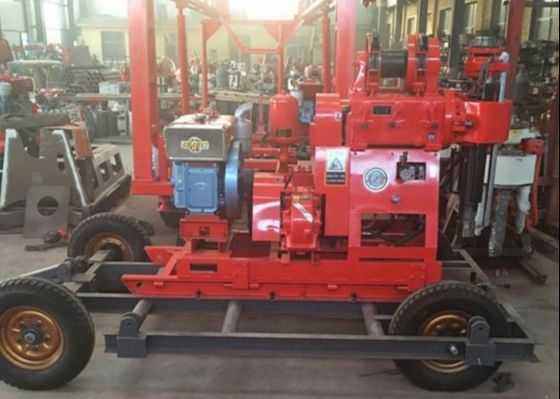

200 Meters Depth Hydraulic Equipment GK 200 Portable Core Drilling Machine

200 Meters Depth Hydraulic Equipment GK 200 Portable Core Drilling Machine
200 Meters Depth Hydraulic Equipment GK 200 Portable Core Drilling Machine
video play

Large Image :  200 Meters Depth Hydraulic Equipment GK 200 Portable Core Drilling Machine

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: GK 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: 200 Meters Depth Portable Hydraulic Drilling Equipment GK 200 Core Drill Rig Hole Diameter: Customized
Drilling Depth: 200 Meters Voltage: 380v
Rated Boring Diameter: 200m Certification: ISO9001
Power Type: Diesel Condition: New
Warranty: 1 Year Weight: 500kg
Diameter: Customized Application: Water Well Drilling ,Geological Exploration
After-sale Service: Video Support
High Light:

200m portable core drilling machine

,

oem portable core drilling machine

,

200m depth core drilling rig

200 Meters Depth Portable Hydraulic Drilling Equipment GK 200 Core Drill Rig





GK 200 Core Drill Rig Introduction



GK 200 drilling rig is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. Drilling depth 200 meters.



GK 200 Core Drill Rig Technical Data



Rated drilling depth 200m
Rated boring diameter 200mm
Vertical shaft rotation speed (4 shifts) 118, 236, 505, 1010.r/min
Vertical shaft max. output torque 1500N*m
Max. hositing weight single line) 17KN
Drilling rod diameter 42mm
Drilling dip angle 90~75°
Drill outside diameter (L*B*H) 1433*697*1273mm
Drill weight 500kg
max. boring diameter 300mm



GK 200 Core Drill Rig  Advantage



1. With the hydraulic feeding mechanism, improve the drilling efficiency, reducing the labor intensity of workers.
2. a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown
3. hole bottom pressure gauge pressure indicator, and easy to master the status inside the hole.
4. The handle centered, convenient operation.
5. ompact structure, small volume, light weight, convenient move.



GK200 Core Drilling Rig Application



1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.

1.2 Geological core drilling, physical prospecting.

1.3 Small grout Confucius, drill hole drilling.

1.4 Small well drilling.



GK 200 Core Drill Rig Service



· 15 Years Experiences

· 100% Brand New Machines

· 1 Set Small Order Acceptable

· Customized Drilling Rig

· After Sales Service In 24/7

200 Meters Depth Hydraulic Equipment GK 200 Portable Core Drilling Machine 0200 Meters Depth Hydraulic Equipment GK 200 Portable Core Drilling Machine 1200 Meters Depth Hydraulic Equipment GK 200 Portable Core Drilling Machine 2

200 Meters Depth Hydraulic Equipment GK 200 Portable Core Drilling Machine 3



200 Meters Depth Hydraulic Equipment GK 200 Portable Core Drilling Machine 4
