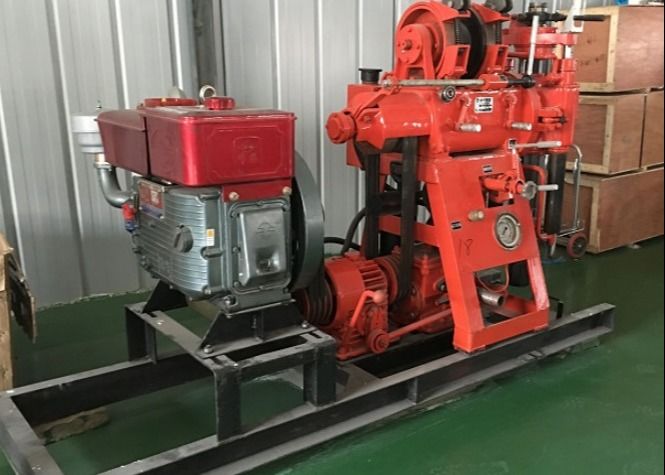

100m Geothermal Oem Core Drilling Rig Machine

100m Geothermal Oem Core Drilling Rig Machine
100m Geothermal Oem Core Drilling Rig Machine 100m Geothermal Oem Core Drilling Rig Machine

Large Image :  100m Geothermal Oem Core Drilling Rig Machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Portable Core Drilling Machine Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 30-180m Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Condition: New
Weight: 500kg
High Light:

100m core drilling rig

,

100m core drill rig

,

oem core drilling rig

100m Small Portable Water Well Drilling Rig Geothermal Core Drilling Machine Agricultural Irrigation Equipment





 Application of XY-1 small water well drilling rig



XY-1 small drill rig widely used in drilling family wells, drilling industry wells and drilling survey geological sampling, SPT service etc. Drilling dia. will from 50-200mm or large, according to clients requirement, it can drill max. 100m deep. Different layer condition will need different bits, soil or soft layer will need clay bit, or ally bit, drag bit, for hard rock will need diamond bit, tricone bit etc.



Specifications of XY-1 small water well drilling rig




Drilling depth
100m
Drill rod dia.
42mm
Initial hole dia.
110mm
Final hole dia.
75mm
Angle range
90°-75°
Dimensions(L×W×H)
1640×1030×1440 (mm)
Weight(without power unit)
500kg
Swivel Head
Spindle speed(3-speed)
142/285/570 r/min
Spindle stroke
450mm
upward displacement speed of idling vertical spindle
0.05m/s
Downward displacement speed of idling vertical spindle
0.067m/s
Spindle pull-down max
15KN
Spindle lifting capacity max
25KN
Hoist
Max .lifting capacity(1-speed,single rope)
10KN
Cable volume (number) of hoisting drum
27m
Wire rope dia.
9.3mm
Mud Pump
Model
Horizontal reciprocating single-acting piston pump
Displacement max


Equipped with diesel engine
95L/min
Equipped with motor
77L/mm
Allowable working pressure max
1.2Mpa
Continuous working pressure
0.7Mpa
Suction pipe dia
32mm
Discharge pipe dia
25mm



Main Features:



1. Very powerful at soil, sand, hard rock, etc. land condition.



2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill

both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.



3. Hydraulic control system for greatly improving the working efficiency, saving labor force.



4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.



5. Power can be diesel engine or electric motor, as per your request.



Tips to select a right drilling rig:



1. What kind of projects you will work for?

Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?



2. Max drilling depth you want.

100m, 150m, 200m, 300m, or other depth.



3. The Min and Max borehole diameter you need.

Like Max 200mm, Min 75mm.



4. Geological condition of the working site if you know about it.

Soft ground like soil, mud, sand

Hard ground like hard rocks

Or mixed
