Red Color St 350 Meters 92kw 305mm Crawler Mounted Drill Rig

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

Red Color St 350 Meters 92kw 305mm Crawler Mounted Drill Rig

video play

Large Image :  Red Color St 350 Meters 92kw 305mm Crawler Mounted Drill Rig

Product Details:
Place of Origin: China
Brand Name: SHITAN
Certification: ISO
Model Number: ST350
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Marketable
Packaging Details: Wooden case or naked
Delivery Time: 7 days after payment
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets per year
Detailed Product Description
Product Name: Shitan Quality Drilling Rig Hot Selling ST 350 Water Well Borehole Drilling Rigs Application: Drilling Well,hammer For Drills
Air Pressure: 1.25-3.5Mpa After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Weight: 9800KG
Power: 92Kw Usage: Water Well
Hole Diameter: 140-305mm Drill Rod Length: 1.5-6
Drilling Depth: 350M Rod Length: 6M
High Light:

92kw crawler mounted drill rig


350 meters crawler drilling rig


305mm crawler mounted drill rig

Red Color ST 350 Meters Water Well Drilling Machine High Speed Crawler Mounted Drill Rig


ST 350  High Speed Crawler Mounted Drill Rig Introduction


ST 350 drilling euipment for water well drilling factory direct is mainly used for drilling water wells ,ground source heat pump well and other uses of the borehole. The rig can drill work on different Geological formations, drilling hole diameter is larger, the max. hole depth of up to 350 meters. Unique deep hole axial compression adjustable system to Adjust impetus, deep hole drilling reduces the rotation resistance. Have two-stage telescopic /shrink carriage, use 6 m drill pipe, reducing the times of change drill pipe.

ST 350 Crawler Mounted Drill Rig Techs



ST350  water well drilling rig Crawler Mounted Drill Rig Techs
Product Name ST350
The weight 9.8T


The hole diameter


Drilling depth 350m
One-time advance length 6m
Walking speed 2.5KM/H
Climbing angles 30
Power 92KW
Using air pressure 1.7-3.3MPA
Air consumption 17-35
Drill pipe length 1.5m 2.0m 3.0m 6.0m
Drill pipe diameter 89mm,102mm,
Rig lifting force 20T
Swing speed 55-115rpm
Swing torque 6200-85000N.m

ST 350 Meters Crawler Mounted Drilling Rig Characteristics

1, it is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.

2, This machine can drill in different stratum, The maximum bore diameter can be 350mm.

3, This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.

4,Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.

5,This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.

6, Two gears rotation and feeding speed makes it work in soil and rock layers.


ST 350 Meters  High Speed Crawler Mounted Drill Rig Main FAQ

1. What are the delivery times?

The specific delivery time depends on the items and quantity of your order.

2. Do you have a MOQ limit?

Yes it depends on the products size and production process.

3. What are your payment methods?

T/T,Western Unions payments are available.

4. What after-sales service can you provide?

It has developed a whole-process and all-round after-sales service system, including equipment installation and debugging, maintenance, testing, operation training and spare parts supply.



Company Information


Jinzhou City Shitan Machinery is a professional drilling rig factory in North China ,we can do OEM service uopn your exact demand depth and hole diameters with high quality and competitive price.Our main products are Pneumatic Borewell Machine, water well drilling rig,core drill rig,drilling bits,geological drillig machine,drilling mud pump ,soil test drilling machine,track transporter ect.

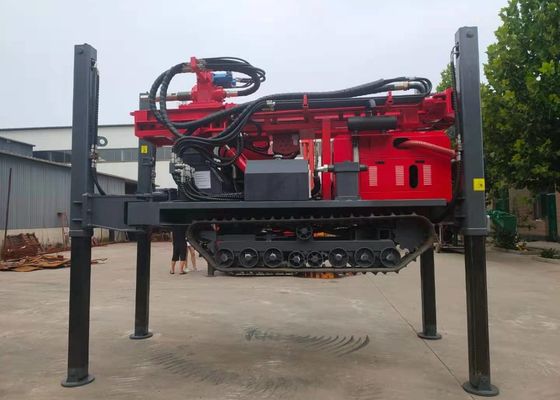

Red Color St 350 Meters 92kw 305mm Crawler Mounted Drill Rig 0

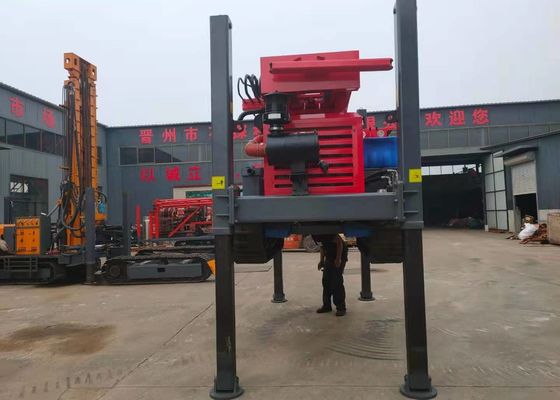

Red Color St 350 Meters 92kw 305mm Crawler Mounted Drill Rig 1
Red Color St 350 Meters 92kw 305mm Crawler Mounted Drill Rig 2Red Color St 350 Meters 92kw 305mm Crawler Mounted Drill Rig 3Red Color St 350 Meters 92kw 305mm Crawler Mounted Drill Rig 4
