Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

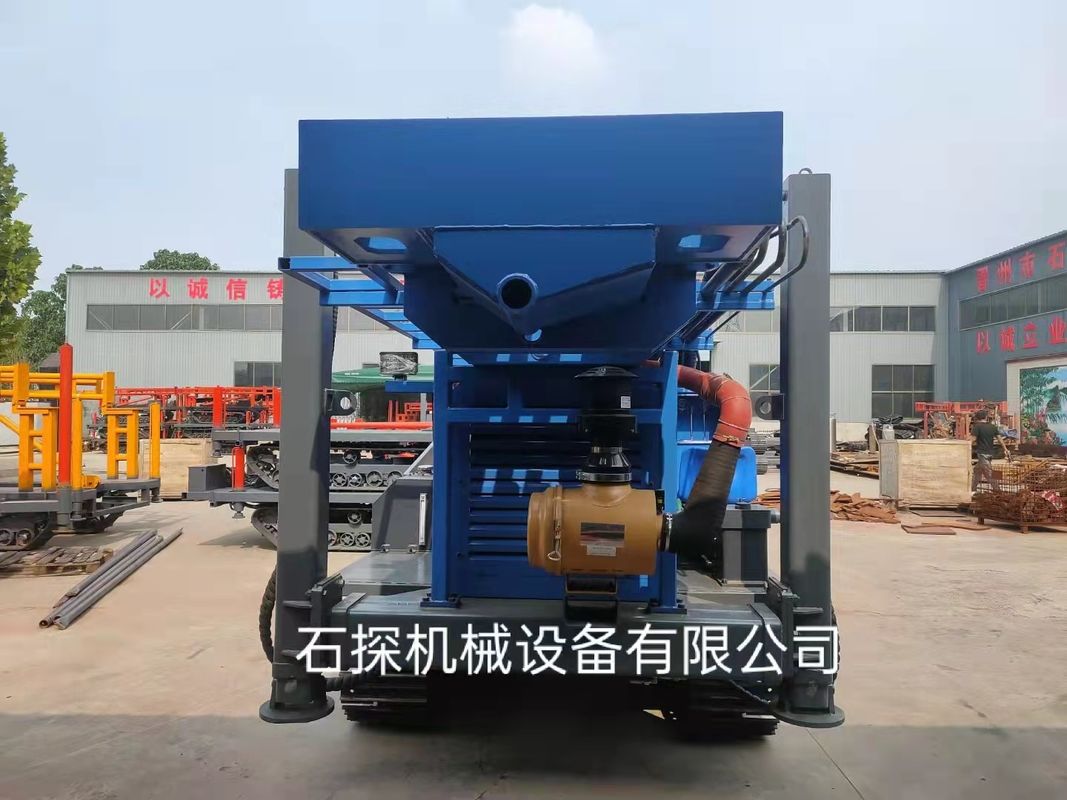

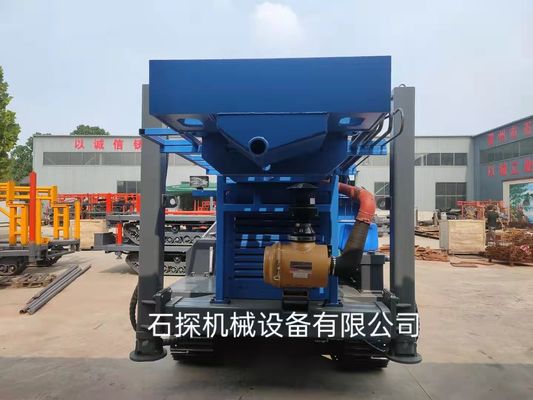

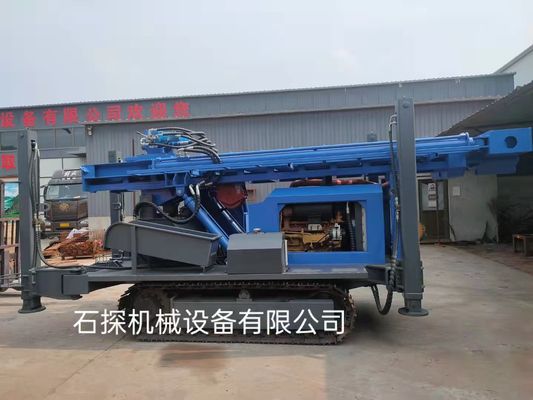

Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa

Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa
Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa

Large Image :  Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST-450
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Naked
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 1000year
Detailed Product Description
Type: Crawler Hydraulic Reverse Circulation Drilling Rig Crawler Mounted Drill Rig Power Type: Diesel
Driving Way: Hydraulic Driving Usage: Geological Core Drilling
Weight:: 9.8T Voltage: 380V
Air Pressure: 1.25-3.5Mpa Drilling Efficiency: 10-35m/h
Weight Of The Rig: 4m×1.7m×2.2m Power(w): 92kW
High Light:

450m depth crawler mounted drill rig

,

450m depth geotechnical drilling rig

,

3.5mpa crawler mounted drill rig

Geotechnical Engineering 450 Depth Crawler Hydraulic Reverse Circulation Drilling Rig





Introduction of 450 crawler type water well drilling rig



Water gas dual-purpose drilling rig is a mechanical top drive drilling rig integrating water drill and air drill. It effectively solves the problems of difficult drilling with air DTH hammer in soil layer and low efficiency of water drilling mud in hard rock layer, gravel and pebble layer.
The drilling rig is suitable for various complex strata, drilling and geological exploration, drilling core, high efficiency and energy saving. It is the inevitable trend of equipment development in water well drilling and geological engineering exploration industry in the future.



Product parameters:


The Weight(T)
6T
Dimensions(mm)

4m×1.7m×2.2m

The hole diameter(mm)
105-260mmmm
Drilling Depth(m)
260meters
Once-time advance length(mm)
3000/6000mm
Walking speed(Km/h)
2.5KM/H
Climbing angles(Max.)
30
Minimum clearance clearance(mm)

230

Using air pressure(Mpa)

1.25-3.5

Air consumption(m³/min)
23
Equipped capacitor(Kw)
92
Swing speed(rpm)
55-115
Swing torque(N.m)
5900
Drill pipe diameter(mm)
Φ76 Φ89 Φ102
Drill pipe length(m)
1.5 2.0 3.0 6.0
Rig lifting force(T)
30

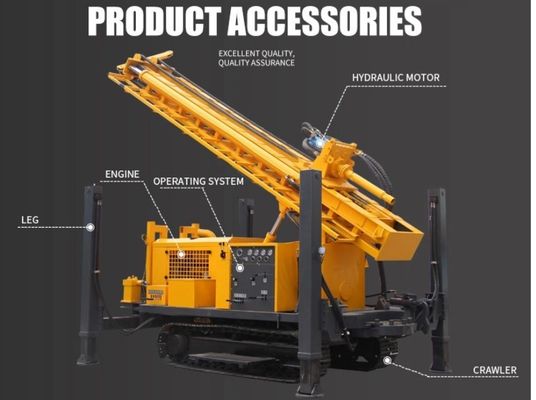

Well drilling rig Features



1. All parts of the drilling rig are installed together on the turning platform with crawler chassis, it moves convenient and has good maneuverability.

2. Rig with power head has long feed stroke so that it can shorten the time of installing or unloading drill rods and improve the drilling efficiency.

3. Rig with full hydraulic transmission and control operates easily and flexibly. It can show smooth operation and reliable work.

4. Rig with dual -channel power head has strong torque as well as pulling force, it has strong ability to deal with accidents.

5. Machine installed a hydraulic clamping & breakout system in order to automatic wrench the drill pipe and tools, both assistant time and lobar intensity are reduced during the drill work.

6. Drill head with dual motor drive has a variable speed and wide speed range, it is suitable for the application of pneumatic DTH hammer drilling and alloy drilling.



System composition



1. Power system, equipment that provides energy for the whole set of drilling rig;
2. Working system, equipment for working according to process requirements;
3. Transmission system, equipment for transmitting, conveying and distributing energy for the working unit;
4. Control system, control all systems and equipment, and coordinate and accurately work according to the process requirements;
5. Auxiliary system, equipment to assist the main system.
Sealing and lubrication of flat valve for accessories of water well drilling rig


Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa 0Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa 1Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa 2Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa 3Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa 4Geotechnical Engineering 450m Depth Crawler Mounted Drill Rig 3.5mpa 5
