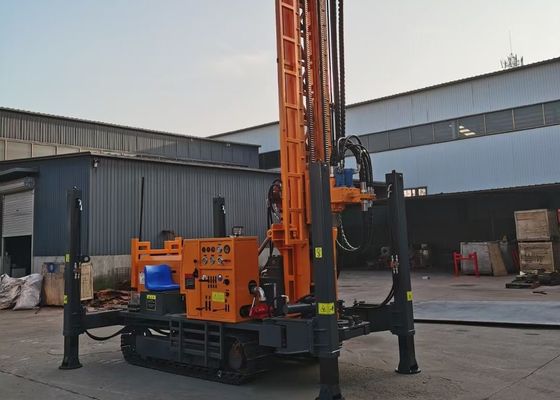

89kw 400m Hydraulic Water Well Drilling Rigs For Engineering

89kw 400m Hydraulic Water Well Drilling Rigs For Engineering
89kw 400m Hydraulic Water Well Drilling Rigs For Engineering 89kw 400m Hydraulic Water Well Drilling Rigs For Engineering

Large Image :  89kw 400m Hydraulic Water Well Drilling Rigs For Engineering

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST400
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 10000year
Detailed Product Description
Type: Hydraulic Crawler Drilling Machine Max. Drilling Depth: 400
Dimension(L*W*H): 6m×2m×2.5m Power Type: 89
Feature: High Drilling Efficiency Drilling Diameter: 105-300mm
Rod Length: 6M Lifting Force: 22T
Fast Lifting Speed: 24m/min Warranty: 1 Year
High Light:

400m hydraulic water well drilling rigs

,

400m hydraulic well drilling rig

,

89kw hydraulic water well drilling rigs

400M Hydraulic Well Drilling Rig Sales Of Water Well Drilling Rigs For Engineering





Introduction of crawler type Crawler Mounted Drill Rig



Water gas dual-purpose drilling rig is a mechanical top drive drilling rig integrating water drill and air drill. It effectively solves the problems of difficult drilling with air DTH hammer in soil layer and low efficiency of water drilling mud in hard rock layer, gravel and pebble layer.
The drilling rig is suitable for various complex strata, drilling and geological exploration, drilling core, high efficiency and energy saving. It is the inevitable trend of equipment development in water well drilling and geological engineering exploration industry in the future.



Parameters of crawler type Crawler Mounted Drill Rig


Product Name
Pneumatic Drilling Rig
Model
ST400
Drilling Diameter
105-300mm
Drilling Depth
400m
One-time Advance Length of the Drill
3000/6000mm
Walking Speed
6km/h
Climbing Ability
25
Min. Ground Clearance
300mm
Working Air Pressure
1.7-3.5Mpa
Air Consumption
17-35m3/min
Main Power
100KW/6Cylinder
Rotation
45-75rpm
Rotary Torque
9000-10000N.m
Dimension

6m×2m×2.5m

Total Weight
10T



Operation of well drilling machine when adding drill pipe



1. When the depth of one drill pipe needs to be connected after drilling, stop the propulsion first, then stop the rotation, and turn off the cooling water;
2. Stop the rotation and operate the fast forward and backward handle to the fast backward position to make the chuck quickly back in place; 3. The gyrator reverses, at the same time, it retreats the feed oil cylinder to rotate the water braid shaft away from the drill pipe;
4. Operate the clamping handle to make the gripper clamp the drill pipe and open the micro regulating flow valve (right rotation)
5. Connect the drill pipe to be added to the previous drill pipe, and the rotator moves forward while rotating. When the trapezoidal conical thread of the water braid shaft is in screw contact with the conical thread of the newly added drill pipe, immediately operate the gripper handle, loosen the gripper and complete the drill pipe addition.



Drilling rig characteristics



1. The drilling rig has advanced structure and reasonable layout, which is easy to maintain, maintain and repair.
2. The drilling rig has many positive speed stages and 14-500r / min speed range, and the output torque is 13428-250n. M.
3. The drilling rig has a reverse speed of 2 gears, which is convenient to deal with accidents.
4. The drilling rig adopts long travel speed doubling mechanism and mechanical power head, with a travel of 3400mm, which is used to improve drilling efficiency and reduce the occurrence of drilling plugging and burning accidents.
5. The drilling rig adopts double oil pump for oil supply, single pump for drilling and double pump for confluence during tripping; Less power loss and short auxiliary time.
6. The drilling rig is mechanically driven and the others are hydraulically driven, making effective use of power. The overall power loss is small and the drilling cost is low.
7. The crawler chassis is adopted, and the leg oil cylinder has a stroke of 1.5m, which can be loaded automatically and is convenient for relocation and transportation.
8. Some functional interfaces are reserved in the mechanical hydraulic system of the drilling rig, which can be expanded according to the process requirements of different users.


89kw 400m Hydraulic Water Well Drilling Rigs For Engineering 089kw 400m Hydraulic Water Well Drilling Rigs For Engineering 189kw 400m Hydraulic Water Well Drilling Rigs For Engineering 289kw 400m Hydraulic Water Well Drilling Rigs For Engineering 389kw 400m Hydraulic Water Well Drilling Rigs For Engineering 489kw 400m Hydraulic Water Well Drilling Rigs For Engineering 589kw 400m Hydraulic Water Well Drilling Rigs For Engineering 6
