Oem Customized 16.2kw Engineering Drilling Rig Machine High Efficiency Gk 200

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

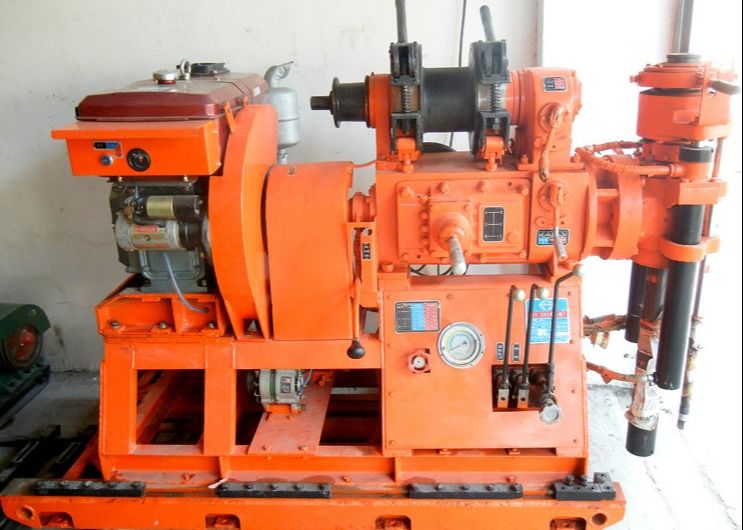

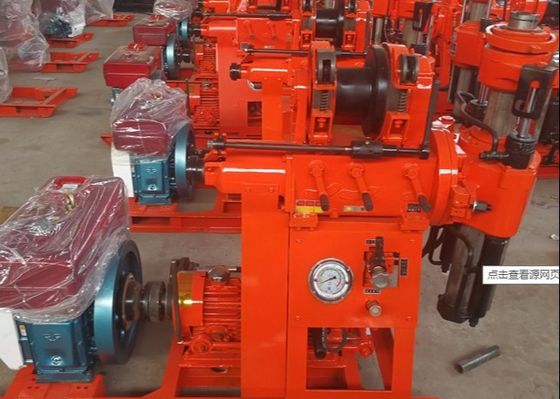

Oem Customized 16.2kw Engineering Drilling Rig Machine High Efficiency Gk 200

Oem Customized 16.2kw Engineering Drilling Rig Machine High Efficiency Gk 200
Oem Customized 16.2kw Engineering Drilling Rig Machine High Efficiency Gk 200
video play

Large Image :  Oem Customized 16.2kw Engineering Drilling Rig Machine High Efficiency Gk 200

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: High Drilling Efficiency GK 200 Engineering Drilling Rig Color: Red Yellow
Feature: High Drilling Efficiency Usage: Water Well,exploration
Application: Water Well Drilling Power Type: Diesel
Drilling Depth: 200 Meters Warranty: 1 Year
Voltage: 220V/380V Length Of Drill Pipe(mm): 3m
Condition: New Depths: 200 Meters
High Light:

oem engineering drilling rig

,

16.2kw engineering drilling rig

,

engineering drilling rig 200m

High Drilling Efficiency GK 200 Engineering Drilling Rig



GK 200 Engineering Drilling Rig Machine Introduction

Gk-200 drilling rig is a widely applicable hydraulic feeding drilling rig, which has the characteristics of large power, large lifting force (2t), large transmission torque and so on



GK 200 Geological Drilling Rig Machine
Tech Information



Drilling depth of Gk200

200m

Maximum open hole caliber

300mm

End hole caliber

75mm

Drill rod caliber

60mm

Drilling angle

90°~75°

Drill weight (No include power)

975kg

Unity machine dimensions

1433×697×1273m

Spindle

spindle speed

64 128 287 557r/min

Spindle stroke

450mm

Winch

Max.single line hoisting capacity

2400kg

Single line lifting speed

0.41,0.82,1.64m/s

steel wire rope caliber

13m(35m)

Mud pump

Type

Horizontal single urn twin-action

Displacement

170/150L/min(diesel or electromotor)

Diesle engine

ZS1115 16.2kw 2200r/min

Electric motor

Y160M—4 11kw 1440r/min



GK 200 Geological Drilling Rig MachineTech Features



1.2.1 it has oil pressure feeding mechanism to improve drilling efficiency and reduce workers' labor intensity.

1.2.2 large rotary torque and large opening diameter.

1.2.3 adopt large active drill pipe and double guide rods to increase stability.

1.2.4 the drilling rig is equipped with a ball clamp type holding mechanism and a hexagonal active drill pipe, which can reverse the rod without shutdown, with high working efficiency, convenient operation and safety

All reliable.

1.2.5 it is equipped with a hole bottom pressure gauge to indicate the pressure, so as to master the situation in the hole.

1.2.6 centralized operation of handle is convenient.

1.2.7 the drilling rig has compact structure, small volume, light weight, strong decomposability and easy relocation.


GK 200 Geological Drilling Rig Machine Scope of application



1. The drilling rig is applicable to geological survey and exploration, geophysical survey, road and building foundation exploration, as well as drilling projects such as blasting and grouting holes.

2. Alloy bit, diamond bit and composite bit can be selected for drilling according to different formations.

3. Grade 2 ~ 9 sandy clay and weathered bedrock can be drilled.



4. The rated drilling depth is 200m, and the maximum depth shall not exceed 220m; The rated opening diameter is 110mm, the maximum allowable opening diameter is 325mm, and the final hole diameter is 75mm; The drilling depth depends on the formation conditions
