Xy-1a 150 Meters Soil Test 380v Engineering Drilling Rig Machine

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

Xy-1a 150 Meters Soil Test 380v Engineering Drilling Rig Machine

Xy-1a 150 Meters Soil Test 380v Engineering Drilling Rig Machine

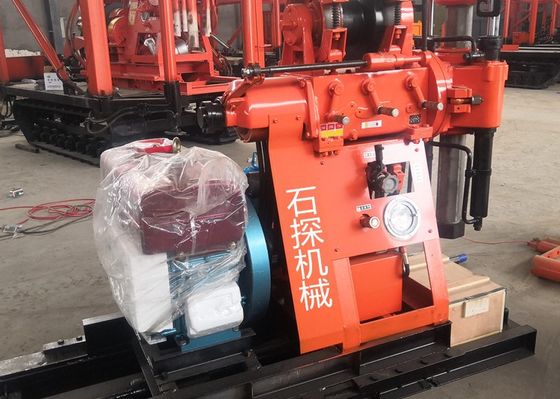

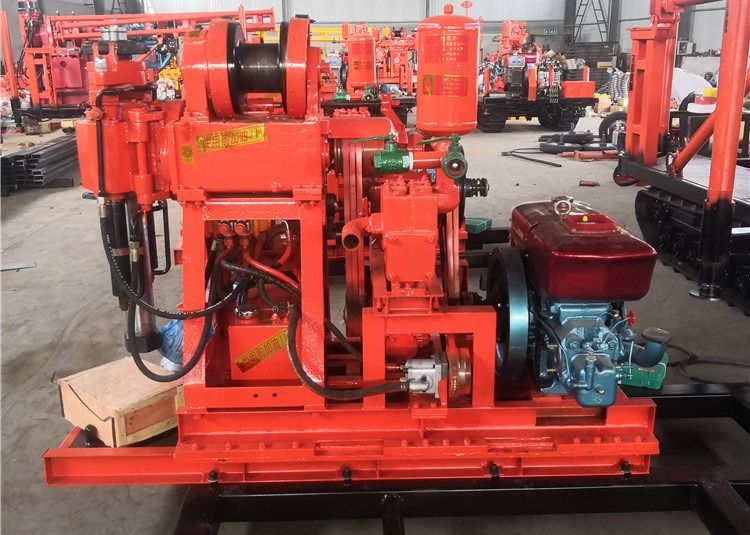

Xy-1a 150 Meters Soil Test 380v Engineering Drilling Rig Machine Xy-1a 150 Meters Soil Test 380v Engineering Drilling Rig Machine

Large Image :  Xy-1a 150 Meters Soil Test 380v Engineering Drilling Rig Machine

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union
Supply Ability: 20000 sets per year
Detailed Product Description
Product Name: Xy-1 A 150 Meters Soil Test Engineering Drilling Rig Machine Hole Diameter: Customized
Drilling Depth: 150 Meters Voltage: 380v
Application: Water Well Drilling ,Geological Exploration OEM: Acceptable
Certification: ISO9001 Power Type: Diesel
Condition: New Warranty: 1 Year
Weight: 500kg Diameter: Customized
High Light:

xy-1a soil testing drill rigs

,

150 meters engineering drilling rig

,

380v engineering drilling rig

Xy-1 A 150 Meters Soil Test Engineering Drilling Rig Machine



Xy-1 A 150  Engineering Drilling Rig Machine Introduction

XY-1A drilling rig adds mud pump which is based on XY-1A, hydraulic feeding, high speed, high speed torque belt and portability with pump.



Xy-1 A 150 Engineering Drilling Rig Machine Technical Data

Drilling Rig of XY-1 A 150 Engineering Drilling Rig
Drilling diameter(mm) 75,91,110,130,150
Drilling depth (m) 150,100,70,50,30
Drill pipe diameter (mm) 42,43
Drilling angle(°) 90~75
Equipment size(L * B * H) 1700 * 780 * 1274 (mm)
Rig weight (except engine) 540
Gyrator
Spindle speed (four gear) (r/min) 140,295,470,790,1010
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 0.5
Winch assembly
Winch maximum lifting force (single rope)(KN) 11
Reel speed (r/min) 36,76,121
Reel circumferential speed(m/s) 0.31,0.66 ,1.05
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 35
Brake diameter(mm) 252
Brake band width (mm) 50
Water pump
Pump type Horizontal single cylinder double acting
Maximum displacement (motor)(L/min) 95(77)
Work pressure (Mpa) 0.7
Cylinder diameter (mm) 80
Piston stroke(mm) 100
The maximum allowable pressure (Mpa) 1.2
Oil pump
Oil pump type Gear pump
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500



Xy-1 A 150 Engineering Drilling Rig Machine Feature:



1, The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.

2 ,The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability.

3 ,Hole pressure gauge indicates pressure which can be easy to grasp the situation inside the hole.

4, Handle concentration, easy operation.

5, It is compact, small in size, light in weight, strong in decomposition and easy to remove .It can be used in plains and mountains.

Xy-1 A 150 Engineering Drilling Rig Machine Scope of Aapplication

Scope of application
1. The drilling rig is applicable to the engineering geological survey of industrial and civil construction, railway, hydropower, transportation, bridge, dam foundation and other buildings; Geological core drilling and physical survey; Drilling of small grouting holes, geothermal holes, blasting holes and various concrete inspection holes; Small well drilling. two
It has a wide rotating speed range and is equipped with high-speed gear. Diamond, cemented carbide and steel grain bits can be selected for drilling according to different geology.
3. When the final hole is 75mm and 46mm respectively, the rated drilling depth is 100m and 180m respectively. The maximum opening diameter is allowed to be 150mm  ensuring the quality satisfy international request


Xy-1a 150 Meters Soil Test 380v Engineering Drilling Rig Machine 0Xy-1a 150 Meters Soil Test 380v Engineering Drilling Rig Machine 1
