Jinzhou City Shitan Machinery Equipment CO. LTD.
Home ProductsEngineering Drilling Rig

200m Engineering Spt Portable Drilling Rig For Water Well

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

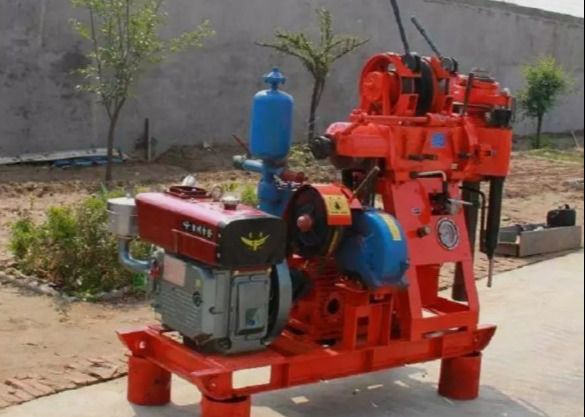

200m Engineering Spt Portable Drilling Rig For Water Well

200m Engineering Spt Portable Drilling Rig For Water Well
200m Engineering Spt Portable Drilling Rig For Water Well 200m Engineering Spt Portable Drilling Rig For Water Well

Large Image :  200m Engineering Spt Portable Drilling Rig For Water Well

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Name: Geological Drilling Rig Machine Power Type: Diesel
Usage: Water Well Voltage: 380V
Power(W): 15KW Weight: 626KGS
Condition: New Equipment Size(L * B * H): 1730 * 860 * 1360 (mm)
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
Mud Pump: BW-160 Application: Water Well,water Well Drilling And Soil Test
High Light:

spt portable drilling rig for water well

,

200m portable drilling rig for water well

,

200m portable well drilling equipment

Hydraulic Water Well Drilling Machine Water Well Drill Rig Bore Hole Equipment For Sale





Brief introduction of drilling rig



Hydraulic portable drilling machine is a hydraulic feed portable core drilling machine. The drilling machine is suitable for geological drilling buildings such as mountains and hills, river tunnels and other complex terrains. Engineering geological prospecting for petroleum geophysical prospecting drilling holes, blasting Po holes and other drilling to meet the needs of different users, the drilling machine can choose diesel engine Any of the three powers of a gasoline engine or electric motor, diesel by default

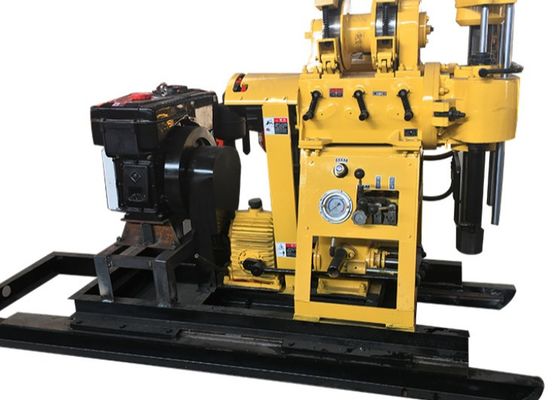

GK200 Hydraulic Portable 200m Water Well Drilling Machine



Drilling depth 200m
Open hole diameter 75-300mm
End hole diameter 75mm
Active drill rod 53/59*4200mm
Rod diameter 50,60mm
Drill angle 90°-75°
Matched power(diesel power) 15kw/2200r/min
Dimension 2800*950*1700mm



Application and scope



1. The rig is compact in structure, small in size, light in weight, but also can be quickly disassembled, easy to handle, for mountainous areas and hills and other field complex terrain work has brought great convenience

2. Compared with similar products, the drilling rig is equipped with a double cylinder hydraulic feeding system, which enables fast drilling, high working efficiency, stable performance and low maintenance rate.

3. The rig operation panel is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is easy to master the conditions in the hole. The operator can make adjustments according to different terrain conditions and reduce the drilling accident rate. The rig is equipped with a high-performance

4. gear change system to facilitate the operator to freely adjust the positive rotation speed according to the geological conditions, and also equipped with ultra-slow reverse gear, convenient for the operator to remove the drill pipe and drill tool, improve the efficiency of lifting and changing drill pipe, reduce the labor intensity of the operator 5. The rig is equipped with fixed clamping mechanism and one main rod, without drilling tower, the work is more simple



FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A:Sorry, free sample is not available.
Q: What is your terms of payment ?
A: Usually we accept T/T 30% in advance, then pay the 70% T/T before shipping.
Q:How to order?
A:Please send us your inquiry with detail item description or with Model number.
If there is no packing demand we take it as our regular exported standard packing.
We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
After you send your detail requirement, we provide quotation to you.
Q:Can I expect a quality products?
A:All the production and processing are strictly according to international standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.

200m Engineering Spt Portable Drilling Rig For Water Well 0200m Engineering Spt Portable Drilling Rig For Water Well 1200m Engineering Spt Portable Drilling Rig For Water Well 2200m Engineering Spt Portable Drilling Rig For Water Well 3200m Engineering Spt Portable Drilling Rig For Water Well 4
