One Man Spt 42mm Pipe Engineering Drilling Rig

Name: One Man Spt 42mm Pipe Engineering Drilling Rig
Brand: ShiTan
SKU: 50
Rating: 4.8 (183 reviews)

Large Image : One Man Spt 42mm Pipe Engineering Drilling Rig

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Type:	Core Drill Rig	Power Type:	Diesel
Weight::	480kg	Usage:	Water Well,railways, Core Drilling
Drilling Depth:	50m	Dimension(LWH):	1180×680×1600mm
Drill Pipe Diameter:	42mm	Condition:	New
Weight:	200KG	Hole Size Diameter:	73-108mm
Warranty:	1 Year	Color:	Red Yellow,Yellow Green
High Light:	iso9001 core drilling rig , 42mm pipe engineering drilling rig , spt engineering drilling rig

Man Portable Water Well Drilling Rigs Engineering SPT Drilling Rig

Introduction to ST50 Core Drill Rig

ST50 series are the simple rigs suitable for borehole drilling in geo-construction and geo-technical exploration drilling, and mountain area drilling in projects like civil building, railway construction, hydropower, highway, bridge and dam etc. Mainly used for:SPT working / Diamond Core drilling / Soil sampling with auger drilling (SPT) / Micro piling / Water well drilling by carbide and rotary drilling

ST50 Core Drill Rig parameters:

Type	ST50 Core Drill Rig
Drilling depth (m)	The max. 50 meter
Hole size diameter	73-108mm
Drill pipe diameter	42mm
Vertical spindle speed	70-650
Reverse rotation speed	50-130
Power	5.7KW
Outsize	1180×680×1600mm
Weight (including Gasoline engine )	208kg

Specially recommended

1, Drilling depth can reach 50m.

2, Steels quality is good, torque is large.
3, Easy operation, free-maintaining.
4, For various complex strutam, such as pebble bed, aggregate bed.
5, Saving money, compact construction, easy moving.
6, For geological exploration, exploration of high building construction, riversconstruction, civil water well.
7, It can do standard penetration test, use auger drilling and sampling with solid stem and the triple rod jet grouting.

Small hydraulic drilling machine Mini geological exploration drilling rig advantages

1. Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
2. With hydro-automatic feeding device, and high drilling efficiency.
3. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
4. Close levers, convenient to operate, safe and reliable operations.
5. Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.

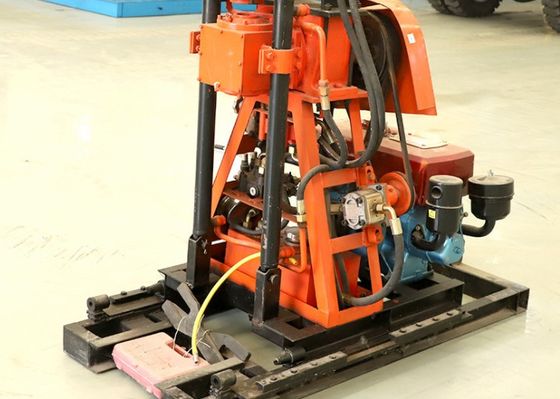

One Man Spt 42mm Pipe Engineering Drilling Rig 0

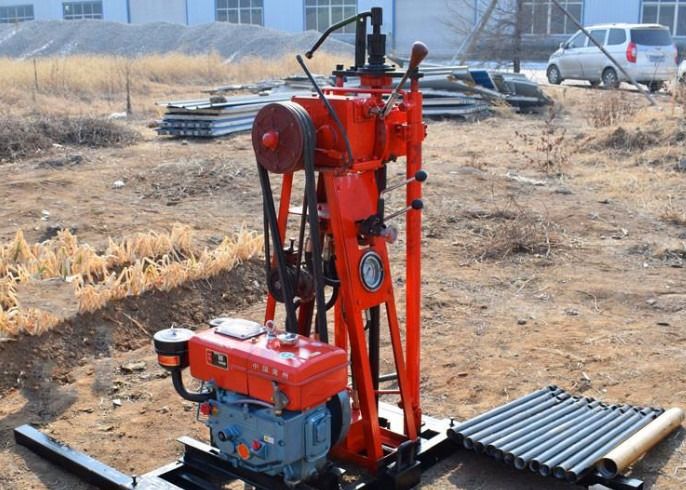

One Man Spt 42mm Pipe Engineering Drilling Rig 1
