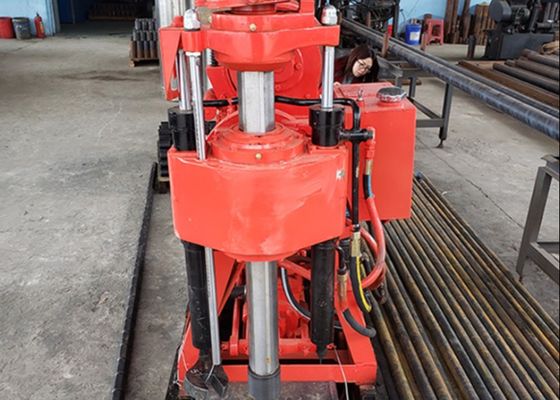

Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A

Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A
Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A

Large Image :  Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Name: Engineering Drilling Rig Type: Rotary Drilling Rig
Power Type: Diesel Usage: Water Well
Voltage: 380V Power(W): 15KW
Weight: 1200KGS Certification: ISO9001
Other Name: Drill Rig Drill Rod Diameter: 42, 50mm
High Light:

42mm rod engineering drilling rig

,

geological drilling rig xy-1a

,

engineering drilling rig 15kw

Engineering Water Well Drilling Rig Supply, Geological Exploration Drilling Rig, Rock Core Drilling Rig​





Description of water well drilling machine:



The XY-1A drilling rig is designed based on the XY-1 drilling rig. It is a high-speed and portable hydraulically fed drilling rig.series pump-machine integrated engineering survey rig is suitable for engineering geological survey, general survey of solid deposits, blast holes (can be equipped with impactors), inspection holes for various concrete structures, micro pile drilling, dam grouting drilling, small water well Boring, drilling of soil anchor holes. Depending on the formation, drill bits such as carbide, diamond, and auger can be used for drilling.



Water Well Drill Rig​ parameters




Drill Swivel Head

Drilling depth



Max.150m

Spindle speed



1010,790,470,295,140(r/min)

Hole diameter



Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution

121,76,36(r/min)



Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm



Purpose and scope of application


1. Mainly used for drilling holes for the general survey and exploration of solid mineral deposits and engineering geological
surveys, and inspection holes for various concrete structures.
2. Drill bits such as diamond, alloy, and steel particles can be used for drilling according to different formations.
3. When the final hole diameter is 75mm and 46mm, the rated drilling depth is 100m and 180m, respectively.
It shall not exceed 110% of each drilling depth, the rated opening diameter is 110mm, and the large opening diameter is allowed to
be 150mm.


Drilling rig features


1. With a hydraulic feed mechanism, improve drilling efficiency and reduce the labor intensity of workers.
2. The drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill rod, which can be used to
reverse the rod without stopping the machine. The work efficiency is high, the operation is convenient, and it is safe and
reliable.
3. Equipped with a pressure gauge at the bottom of the hole, indicating the pressure to facilitate the grasp of the situation in the hole.
4. The handle is convenient for centralized operation.
5. The drilling rig has a compact structure, small size, lightweight, strong decomposability, easy to move, suitable for working in plains or mountainous areas.



Pre-sale Service


1, 24 hours online .Your inquiry will be quick reply on 24 hours .
Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager )

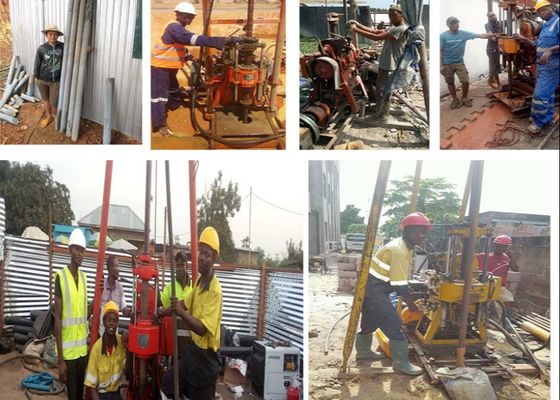

2,Professionally introduction,details pictures and working video to show machine





Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A 0Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A 1Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A 2Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A 3Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A 4Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A 5Geological Exploration Rock Core 42mm Rod Engineering Drilling Rig XY-1A 6
