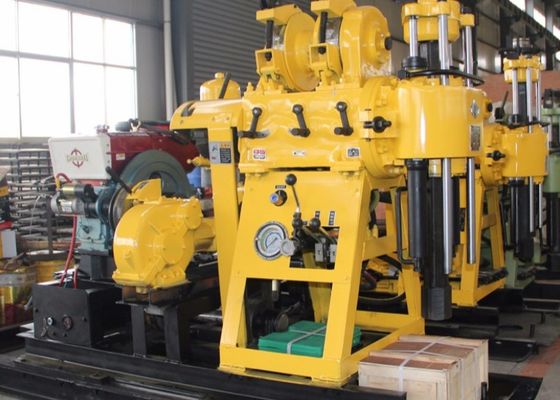

Engineering Investigation Water Welling 15kw Portable Core Drilling Rig Machine

Engineering Investigation Water Welling 15kw Portable Core Drilling Rig Machine
Engineering Investigation Water Welling 15kw Portable Core Drilling Rig Machine Engineering Investigation Water Welling 15kw Portable Core Drilling Rig Machine

Large Image :  Engineering Investigation Water Welling 15kw Portable Core Drilling Rig Machine

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Name: Engineering Drilling Rig Type: Rotary Drilling Rig
Power Type: Diesel Usage: Water Well
Voltage: 380V Power(W): 15KW
Weight: 1200KGS Certification: ISO9001
Other Name: Drill Rig Drill Rod Diameter: 42, 50mm
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation
Warranty: 1 Year Application: Water Well,geohpysical Exploration,General Exploration,Geological Exploration
High Light:

15kw portable core drilling rig

,

engineering investigation portable core drilling rig

,

380v portable core drilling machine

Portable Core Drilling Rig Machine For Engineering Investigation And Water Welling Rig





Description of water well drilling machine:



XY-1A General geological survey exploration, road and high-rise building foundation exploration, various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells and ground temperature central air conditioning, etc.



Water Well Drill Rig​ parameters




Drill Swivel Head

Drilling depth



Max.150m

Spindle speed



1010,790,470,295,140(r/min)

Hole diameter



Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution

121,76,36(r/min)



Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm



 Feature of water well drilling machine


1. The pump-machine integrated structure reduces the area of the site, reduces one power engine, saves energy, and reduces economic costs.
2. High input power, large output torque and strong drilling ability;
3. With hydraulic feed structure;
4. Hydraulic moving device is used to make openings (A, B, C configuration);
5. High-speed model is suitable for diamond drilling in hard rock formations;
6. Equipped with towing structure or loaded on track chassis with strong maneuverability;
7. Compact structure, small size, light weight, convenient disassembly and assembly;
8. There are many variable speed stages, and the process adaptability is strong;
9. With reversing device, low labor intensity and safety when handling accidents and unloading drill pipes;
10.  Can be applied to hilly and mountainous operations.


Applications of water well drilling machine:


1. Drillings for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey and concrete
structure inspection holes.
2.Diamond drill bit, alloy drill bit and steel roller drill bit and so on are available for drilling according to different
geological structures.
3.When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum
of depth may not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 150 mm.

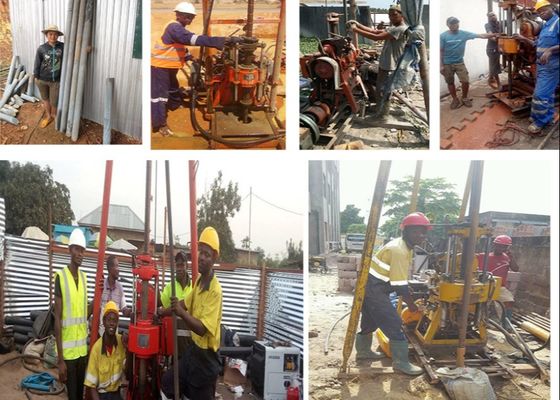

Engineering Investigation Water Welling 15kw Portable Core Drilling Rig Machine 0Engineering Investigation Water Welling 15kw Portable Core Drilling Rig Machine 1Engineering Investigation Water Welling 15kw Portable Core Drilling Rig Machine 2Engineering Investigation Water Welling 15kw Portable Core Drilling Rig Machine 3Engineering Investigation Water Welling 15kw Portable Core Drilling Rig Machine 4Engineering Investigation Water Welling 15kw Portable Core Drilling Rig Machine 5
