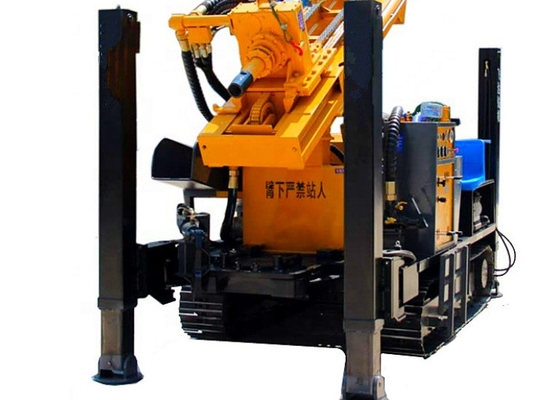

350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile

350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile
350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile 350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile

Large Image :  350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile

Product Details:
Place of Origin: China
Brand Name: SHITAN
Certification: ISO
Model Number: ST350
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: A detailed discussion
Packaging Details: Wooden case or naked
Delivery Time: 5-8days
Payment Terms: L/C, D/P, D/P, T/T, Western Union
Supply Ability: 100000/yes
Detailed Product Description
Type: Crawler Mounted Drill Rig Drilling Depth: 350M
Application: Drilling Well,hammer For Drills Air Pressure: 1.25-3.5Mpa
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
Weight: 9800KG Power: 92Kw
Usage: Water Well Hole Diameter: 140-305mm
High Light:

diesel crawler water well drilling rig

,

350meter crawler water well drilling rig

,

350 meter depth borehole drilling machine

350 Meter Depth Diesel Mobile Water Well Drill Rig Machine





Introduction of ST350 pneumatic drilling rig


ST350 series water well drilling rig is a lightweight, efficient and multi-functional drilling equipment , it is mainly
applicable to industrial and civil drilling, geothermal drilling, mine drilling.has the advantages of compact structure, fast
advancing, mobile and flexible wide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.


Parameters of 350 water well drilling rig


Technical Parameters of ST300  water well drilling rig
typeST350
The weight9.8T
Dimension

6m×2m×2.5m

The hole diameter

105-305mm

Drilling depth350m
One-time advance length6m
Walking speed2.5KM/H
Climbing angles30
Power92KW
Using air pressure1.7-3.3MPA
Air consumption17-35
Drill pipe length1.5m 2.0m 3.0m 6.0m
Drill pipe diameter89mm,102mm,
Rig lifting force20T
Swing speed55-115rpm
Swing torque6200-85000N.m



Crawler Mounted Drill Rig advantage

1. Power system, equipment that provides energy for the whole set of drilling rig; 2. Working system, equipment for working according to process requirements; 3. Transmission system, equipment for transmitting, conveying and distributing energy for the working unit; 4. Control system, control all systems and equipment, and coordinate and accurately work according to the process requirements; 5. Auxiliary system, equipment to assist the main system. Sealing lubrication of flat valve of water well drilling rig accessories lithium base grease shall be used for thrust bearing of flat valve of manual water well drilling rig accessories. The consumption of grease shall be checked after each maintenance. If deterioration, pollution or lack are found, it shall be replaced or supplemented immediately.


Main advantages of water well drilling rig

1. 350m DTH Crawler Mounted Well Drilling Rig is compact, and its width is only 1.3m, suitable for narrow drilling condition, and the max drilling depth could reach 200m.
2.Perfect Maneuverability with hydraulic control.
In order to fulfill various application cases, the main parameters of drill can be adjusted, such as rotation speed, torque, feeding pressure anti-feeding pressure, feeding speed, lifting speed.
3.Rotation, feeding, lifting by Top driven.
Easier for rod changing, reducing rod changing time, better for follow – down drilling.
4. Multi-functional drilling
Multiple drilling ways could be worked on this rig, such as DTH drilling, anti-air circulation drilling, anchor drilling, rotation drilling, and follow-down drilling, as well as core drilling.
There are optional parts added per customers’needs, such as mud pump, foam pump, generator as well as different types of winches.
5. Low operation cost
Down the hole drilling for rocks has the lowest drilling cost with highest level of working productivity.
6. Crawler chassis with long stroke jack cylinders
Long stroke jack cylinders are easy for truck self loading during transportation, and crawlers are of better mobility in mud working sites.
7.Adjustable feeding pressure to get the best feeding force at various drilling depths
350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile 0

350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile 1350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile 2350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile 3350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile 4350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile 5
350 Meter Depth Crawler Water Well Drilling Rig Diesel Mobile 6
