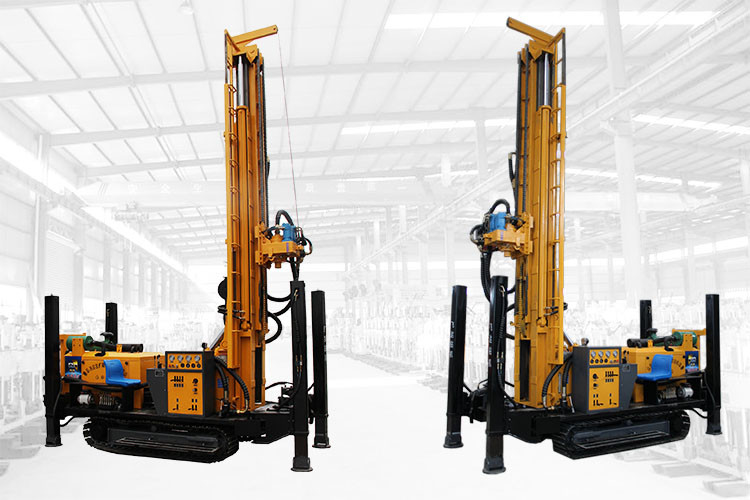

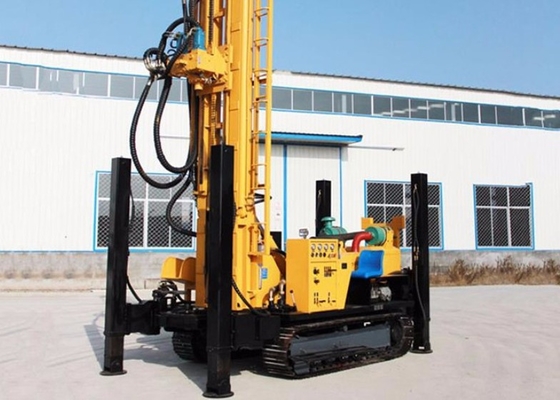

Crawler 400m Rotary Water Well Drilling Rig Machine

Crawler 400m Rotary Water Well Drilling Rig Machine
Crawler 400m Rotary Water Well Drilling Rig Machine Crawler 400m Rotary Water Well Drilling Rig Machine

Large Image :  Crawler 400m Rotary Water Well Drilling Rig Machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST400
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 10000year
Detailed Product Description
Type: Hydraulic Crawler Drilling Machine Max. Drilling Depth: 400
Dimension(L*W*H): 6m×2m×2.5m Power Type: 89
Feature: High Drilling Efficiency Drilling Diameter: 105-300mm
Rod Length: 6M Lifting Force: 22T
Fast Lifting Speed: 24m/min Product Name: Drilling Depth 180m Shallow Pneumatic Water Well Drilling Rig
High Light:

400m rotary water well drilling rig

,

crawler rotary water well drilling rig

,

400m water well drilling rig machine

400m Crawler Pneumatic Rotary Water Well Drilling Rig Machine Prices For Sale/Drilling Rig​





Introduction of crawler type Crawler Mounted Drill Rig



Water and air drilling rig is an efficient and multifunctional drilling equipment. It is mainly suitable for drilling water wells, agricultural irrigation wells, geothermal air conditioning holes and other wells, especially suitable for water intake projects in mountainous areas and rock formations. . The efficiency is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.



Parameters of crawler type Crawler Mounted Drill Rig


Product Name
Pneumatic Drilling Rig
Model
ST400
Drilling Diameter
105-300mm
Drilling Depth
400m
One-time Advance Length of the Drill
3000/6000mm
Walking Speed
6km/h
Climbing Ability
25
Min. Ground Clearance
300mm
Working Air Pressure
1.7-3.5Mpa
Air Consumption
17-35m3/min
Main Power
100KW/6Cylinder
Rotation
45-75rpm
Rotary Torque
9000-10000N.m
Dimension

6m×2m×2.5m

Total Weight
10T



Operation of well drilling machine when adding drill pipe



1. When the depth of one drill pipe needs to be connected after drilling, stop the propulsion first, then stop the rotation, and turn off the cooling water;
2. Stop the rotation and operate the fast forward and backward handle to the fast backward position to make the chuck quickly back in place; 3. The gyrator reverses, at the same time, it retreats the feed oil cylinder to rotate the water braid shaft away from the drill pipe;
4. Operate the clamping handle to make the gripper clamp the drill pipe and open the micro regulating flow valve (right rotation)
5. Connect the drill pipe to be added to the previous drill pipe, and the rotator moves forward while rotating. When the trapezoidal conical thread of the water braid shaft is in screw contact with the conical thread of the newly added drill pipe, immediately operate the gripper handle, loosen the gripper and complete the drill pipe addition.



Advantages


1. Guangxi Yuchai diesel engine( cummins engine for option), strong power;

2. The patented design of the composite boom, double cylinder lift, long trip, high tonnage

3. Each rig is equipped with stoppers to raise the big arm to protect the safety of the cylinder.

4. Rig chassis: professional excavator chassis, durable, large bearing capacity, chain width, hard road damage;

5. Parallel transmission design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system

6. The traveling motor is equipped with a gear box, which is durable and has a long service life.

7. Dustfall device: Effectively reduce dust pollution damage, aiming at pit and tunnel construction

8. Fast distribution valve: speed three gear up to 70 rpm, basic dual-use water vapor function


Crawler 400m Rotary Water Well Drilling Rig Machine 0Crawler 400m Rotary Water Well Drilling Rig Machine 1Crawler 400m Rotary Water Well Drilling Rig Machine 2Crawler 400m Rotary Water Well Drilling Rig Machine 3Crawler 400m Rotary Water Well Drilling Rig Machine 4Crawler 400m Rotary Water Well Drilling Rig Machine 5Crawler 400m Rotary Water Well Drilling Rig Machine 6Crawler 400m Rotary Water Well Drilling Rig Machine 7Crawler 400m Rotary Water Well Drilling Rig Machine 8
