Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a

Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a
Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a

Large Image :  Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Core Drill Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 30-180m Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Borehole Dip Angle: 90°~75
Spindle Speed: 1010、790、470、295、140(r/min) Model: YBC-12/125
Rated Pressure: 12.5Mpa Model(diesel Engine): 1105
High Light:

crawler water well drilling rig xy-1a

,

hydraulic water well drilling rig xy-1a

,

civil hydraulic water well drilling rig

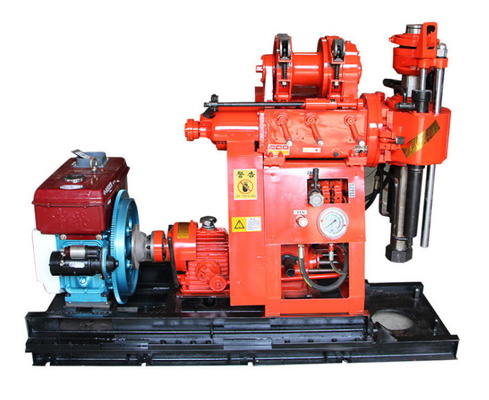

Civil 150m Drilling Machine Crawler Diesel Hydraulic Drilling Machine XY-1A Water Well Drilling Rig





Introduction of Soil Test Drilling Machine



XY-1A Soil Test Drilling Machine is a kind of core drilling equipment, which is mainly used for the general survey and exploration of metal and non-metallic solid minerals. In addition, it can also be used for engineering geological exploration, hydrogeological survey, oil and gas field survey and exploration, as well as water well drilling. The core drills are rotary drilling rigs because they are required to take out relatively complete, non hybrid and non torsion formation rock samples. According to the structure of rotary drilling rig, rotary drilling rig can be divided into three types: rotary drilling rig and rotary drilling machine.



Soil Test Drilling Machine parameters



XY-1A Type
Drill Swivel Head

Drilling depth



Max.150m

Spindle speed



1010,790,470,295,140(r/min)

Hole diameter



Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution

121,76,36(r/min)



Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm



The main features of core drill rig are as follows



1. With automatic oil pressure feeding mechanism, it can improve drilling efficiency and reduce labor intensity.

2. The ball clamp type clamping mechanism can realize the rod reversing without stopping the machine. The operation is convenient, safe and reliable.

3, The handle is centralized and easy to operate. It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient to master the situation in the hole.

4. The structure is compact, the drilling rig, water pump and power engine (diesel engine or motor) are assembled on the same base, occupying a small airport area. Light weight, strong decomposition, easy to move.



Scope of application:



1. The drilling rig is a high-speed drilling rig, which is suitable for general survey exploration, geophysical exploration, road and building exploration, drilling and other drilling projects.
2. Alloy, diamond and composite bits can be selected for drilling according to different bottom layers.
3. It can drill grade 2-9 sandy clay and rock stratum.



Main features:



1. It has oil pressure automatic feeding mechanism to improve drilling efficiency and reduce workers' labor intensity.
2. The ball clamp clamping mechanism is used to replace the chuck, which can reverse the rod without stopping the machine, which is convenient, safe and reliable.
3. The winch is equipped with cage to form a double-sided supporting star wheel structure, which can withstand strong impact
4. Four groups of bearings of the vertical shaft box are positioned to ensure that the gyrator is rigid enough to deal with complex geological conditions such as gravel layer and pebble layer
5. The machine adopts taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance free

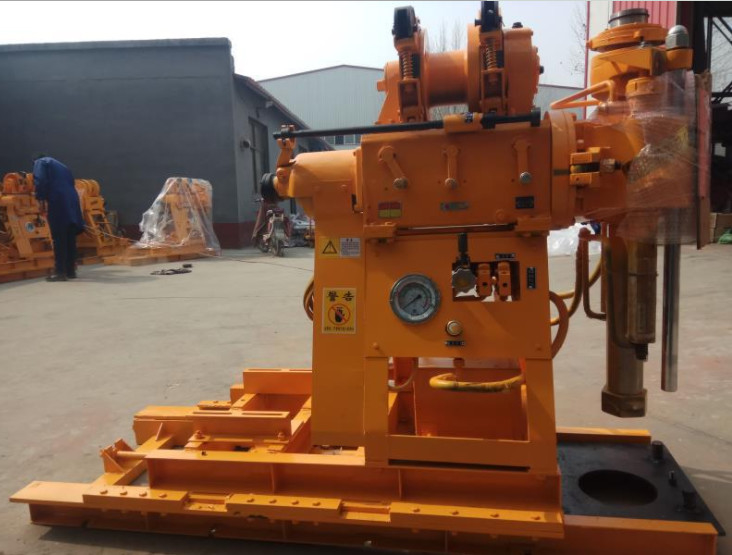

Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a 0Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a 1Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a 2Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a 3

Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a 4Civil 150m Hydraulic Water Well Drilling Rig Crawler Diesel Xy-1a 5
