Product Details:
Payment & Shipping Terms:
|
| Drilling Depth: | 260 | Drilling Diameter: | 105-260mm |
|---|---|---|---|
| After-sales Service Provided: | Water Well Drilling Rig | Warranty: | 1 Year |
| Power Type: | Diesel | Color: | Yellow |
| Weight: | 6T | Rotary Head Storke: | 3.4m-6.0m |
| Rated Power: | 55-132KW | Weight Of The Rig: | 4m×1.7m×2.2m |
| High Light: | 260m deep crawler drill rig,dth crawler drill rig,260m deep crawler mounted drill rig |
||

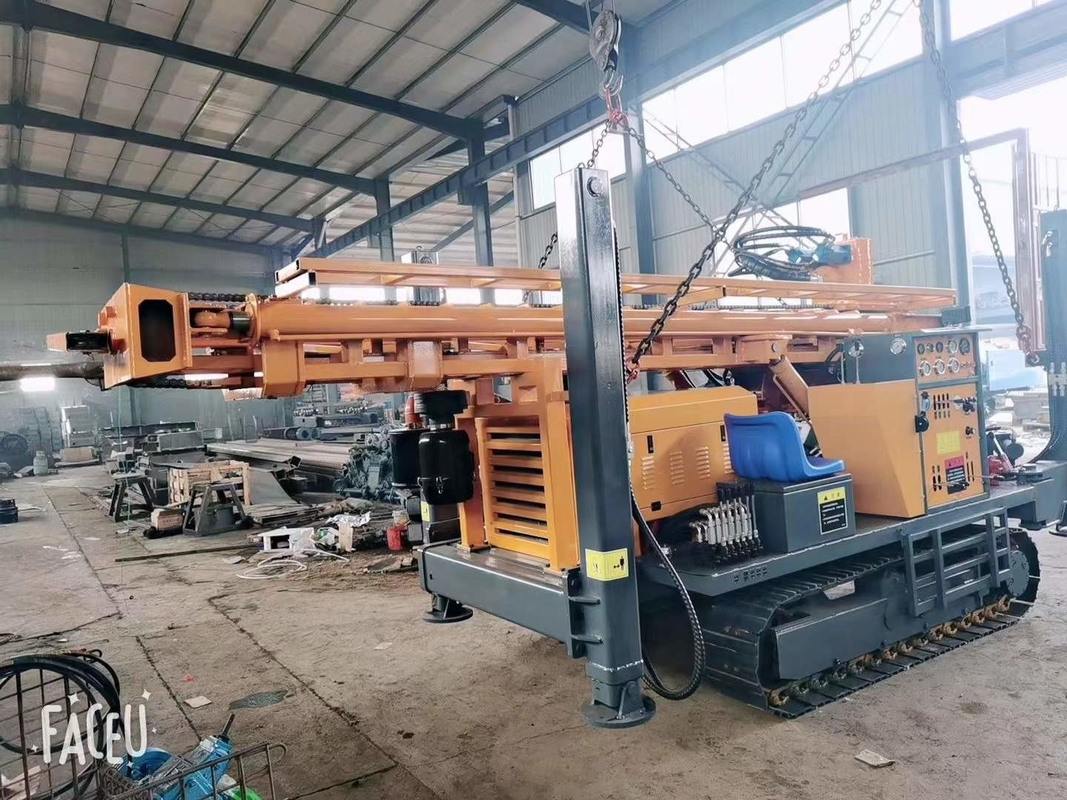

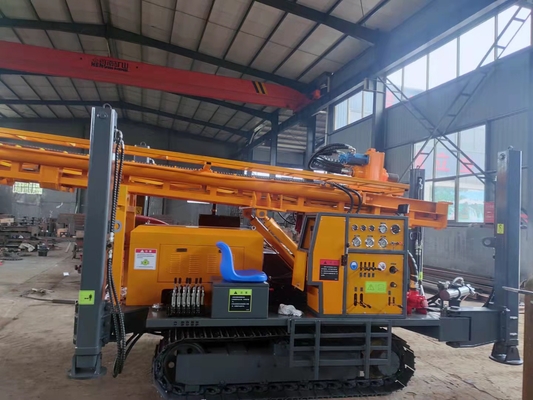

260 DTH Portable Crawler Mounted Deep Water Well Drilling Rig For Sale
Brief introduction of ST-260 Water Well Drilling Rig
ST-260 Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback
ST-260 Water Well Drilling Rig parameters
| Drilling Depth | 260m |
| Dia.hole | φ105-260mm |
| Advance Length one time | 6.6m |
| Working pressure | 1.7-3.0MPa |
| Air consumption | 17-35m³/min |
| Length of rod | 1.5m,2m,3m,6m |
| Dia. Of rod | φ76, φ89,φ102,φ114 |
| Lifting power | 24T |
| Rotation torque | 8500-11000N.m |
| Rotation Speed | 40-70r/min |
| Diesel Engine | Yuchai |
| Engine Power | 85Kw/2200rpm |
| Travelling speed | 0-2.5 Km/h |
| Climb capacity | 30° |
| Weight | 9000kgs |
| Dimension | 5900x2000x2850mm |
| Application | Complicated geological conditions:Rock,Mud,Sand etc. |
| Drilling Way | Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling |
| Dth Hammer | 4",5",6",8" Drill hammer or CIR110, 130, 150,170 |
Advantages of FY series water well drilling rig
Q 1: What kind of drilling rig do you have?
A: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement .
Q 2: Where is the address of your company?
A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China
Q 3: Are you a manufacturer or a trading company?
A:We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China.
Q 4: How long is your delivery time?
A: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance.
Q 5: How long is the warranty of your well drilling rig?
A: Except for consumable spare parts, the whole machine shall be one year.
Q6: How long can your air compressor be used?
A: Normally more than 10 years.
Q 7: What are the terms of payment?
A: TT, Western Union transfer.
Q8, Can you provide us with the documents for customs clearance?
A: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it
Q9: How is your customer service?
A: 24-hour online service. The 48 hour problem was solved (except in special cases).
Q10: How about your after-sales service?
A: 1. Provide customers with online installation and commissioning instructions.
2. Well trained engineers can serve overseas. (non epidemic impact)
