Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Product Name: | Geological Drilling Rig Machine |
|---|---|---|---|
| Hole Diameter: | Customized | Drilling Depth: | 50 Meters |
| Voltage: | 380v | Application: | Soil Testing Drilling Machine,Water Well Drilling ,Geological Exploration |
| OEM: | Acceptable | Power Type: | Diesel |
| Condition: | New | Warranty: | 1 Year |
| Weight: | 145kg | Diameter: | Customized |
| High Light: | 50m geological drilling rig,oem geological drilling rig,50m geological drill rig |
||

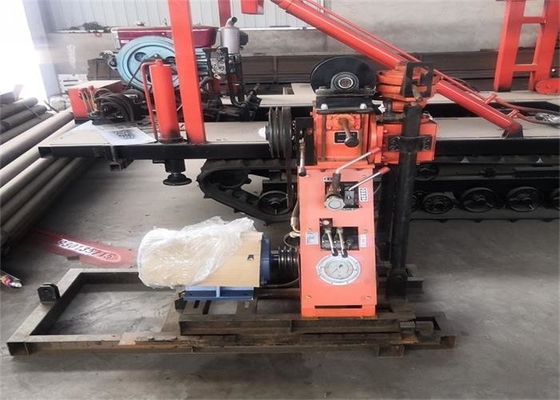

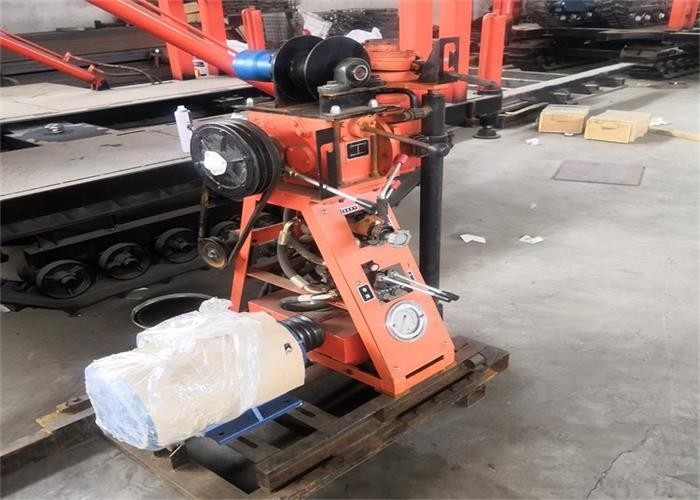

St 50 OEM Soil Test Portable Geological Drilling Rig Machine
St 50 Geological Drilling Rig Machine Introduction
The drilling rig is suitable for geological drilling in complex terrain such as mountains, hills and rivers, engineering geological survey of buildings, drilling of blasting holes, etc. In order to meet the needs of different users, the drilling rig can be equipped with one of three kinds of power: diesel engine, gasoline engine or motor, which is diesel power by default.
St 50 Geological Drilling Rig Machine Technical Data
| ST 50 Drilling Rig | |
| Max. drilling depth | 50m |
| Max .opening diameter | φ75-φ108mm |
| End hole diameter | 56-75mm |
| Active drill pipe | 50/1000mm |
| Drill pipe diameter | Φ42mm |
| Drill pipe length | 1000mm |
| Power (diesel engine) | 5.8kw(8P)/2200r/min |
| Size | 1400*600*1600mm |
| Weight | 240kg |
| Spindle | |
| Speed | 285-570r/min |
| Torque | 600 N*m |
| Stroke | 1000mm |
| Lifting force | 300KG |
| Pressure | 200KG |
| Drilling Tower (optional) | |
| Rated load | 1t |
| Height | 4m |
| Tower leg specifications | 60mm |
| Mud Pump | |
| Model | BW-50 |
| Flow | 50L/min |
| Max.pressure | 1.2Mpa |
| Times | 63/min |
| Inlet hose diameter | φ55mm*2.5m |
| Outlet hose diameter | Φ20mm*10m |
St 50 Geological Drilling Rig Machine Main Characteristics
1. Geological survey work in a highly difficult area that is small and light and convenient for high altitudes
2. Adopting an automatic hydraulic feed mechanism to increase drilling efficiency and reduce labor intensity of workers.
3, Using 8 HP high-efficiency diesel engine as a power for you to export a steady stream of strong power.
3, Application of positive and negative four-speed operation to facilitate a variety of terrain exploration drilling
4. The four-axis bearing positioning of the vertical shaft box ensures that the gyrator is rigid enough to deal with complex geological conditions such as gravel layer and pebble layer.
5. The machine adopts the national patented technology of the taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free.
St 50 Geological Drilling Rig Machine Use Scope
It is a portable hydraulic drill in China at present. It is especially suitable for coring operations in special difficult terrain such as mountains, hills and rivers, and for engineering geological survey of buildings such as railways, hydropower, transportation, bridges and dam foundations; Geological core drilling and physical survey; Drilling of small grouting holes and blasting holes; Small well drilling.
