| Product Name: | GK Geological Drilling Rig Machine | Color: | Red Yellow |
|---|---|---|---|
| Feature: | High Drilling Efficiency | Usage: | Water Well,exploration |
| Application: | Water Well Drilling | Power Type: | Diesel |
| Drilling Depth: | 200 Meters | Warranty: | 1 Year |
| Voltage: | 220V/380V | Length Of Drill Pipe(mm): | 3m |
| Condition: | New | Hole Diameter: | 200 Mm |
| High Light: | 200m engineering drilling rig,220v engineering drilling rig,soil sample collecting engineering drilling rig |
||

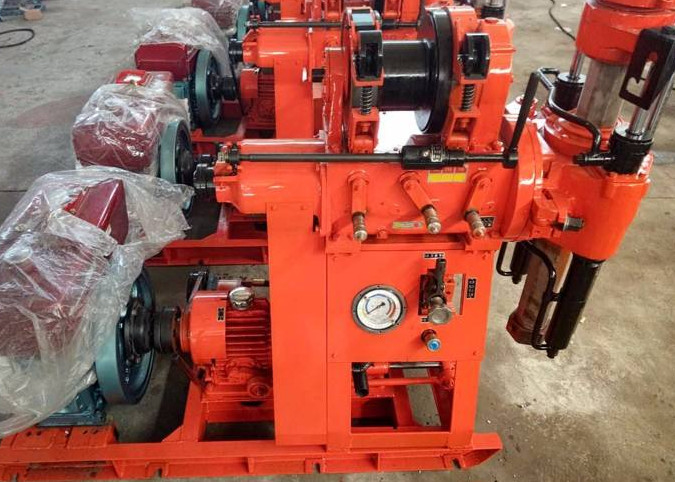

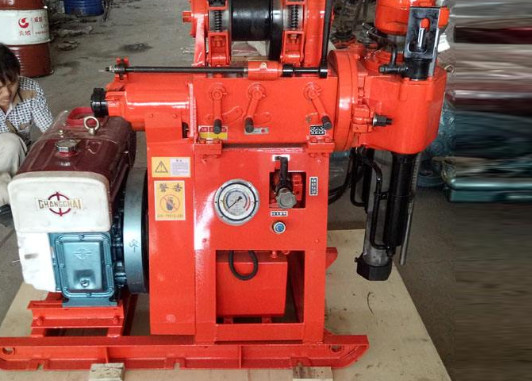

GK 200 Fast Speed 220v Soil Sample Collecting Engineering Drill Rig ,Geological Drilling Rig Machine
GK 200 Geological Drilling Rig Machine Introduction
Gk200 drilling rig is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque.
GK 200 Geological Drilling Rig Machine Information
|
Drilling Depth
|
200m | |
| Maximum open hole caliber | 300mm | |
| End hole caliber | 75mm | |
| Drill rod caliber | 60mm | |
| Drilling angle | 90°~75° | |
| Drill weight (No include power) | 975kg | |
| Unity machine dimensions | 1433×697×1273m | |
| Spindle | ||
| spindle speed | 64 128 287 557r/min | |
| Spindle stroke | 450mm | |
| Winch | ||
| Max.single line hoisting capacity | 2400kg | |
| Single line lifting speed | 0.41,0.82,1.64m/s | |
| steel wire rope caliber | 13m(35m) | |
| Mud pump | ||
| Type | Horizontal single urn twin-action | |
| Displacement |
170/150L/min(diesel or electromotor)
|
|
| Diesle engine | ZS1115 16.2kw 2200r/min | |
| Electric motor | Y160M—4 11kw 1440r/min | |
GK 200 Geological Drilling Rig Machine Features
