200 Meters Portable Water Drilling Machine 200mm Hole Diameter

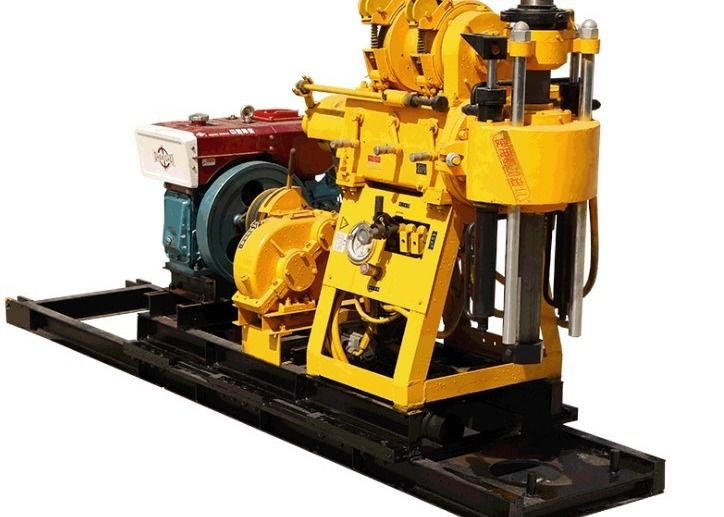

Large Image : 200 Meters Portable Water Drilling Machine 200mm Hole Diameter

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	GK 200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 sets/year

Contact Now

Detailed Product Description

Type:	OEM Customized Portable 50 Meters Hydraulic Core Drilling Machine Core Drill Rig	Power Type:	Diesel
Weight::	480kg	Usage:	Water Well,railways, Core Drilling
Drilling Depth:	50m	Dimension(LWH):	1180×680×1600mm
Drill Pipe Diameter:	42mm	Condition:	New
Weight:	200KG	Hole Size Diameter:	73-108mm
Highlight:	200m depths portable hydraulic drilling machine , portable Water drilling machine , oem portable hydraulic drilling machine

200 Meters Portable Water Drilling Machine 200mm Hole Diameter

Product Specifications

Attribute	Value
Type	OEM Customized Portable 50 Meters Hydraulic Core Drilling Machine Core Drill Rig
Power Type	Diesel
Weight	480kg
Usage	water well, railways, core drilling
Drilling depth	50m
Dimension (L×W×H)	1180×680×1600mm
Drill pipe diameter	42mm
Condition	new
Hole size diameter	73-108mm

Product Overview

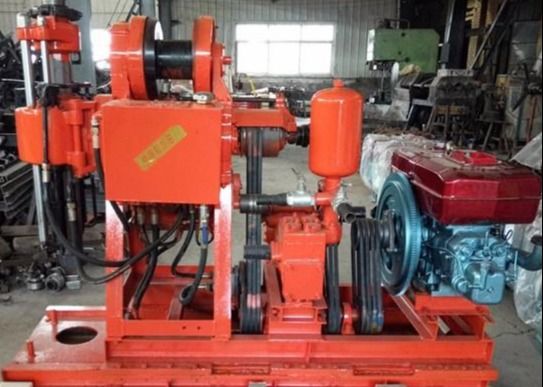

The OEM GK 200 Meters Hydraulic Portable Core Drilling Rig Machine is designed for drilling wells, general exploration, geophysical prospecting, road and construction exploration, and blasting holes. It can drill through 2-9 grades of sandy clay and rock formations using appropriate drill bits (alloys, diamonds, or composite).

Technical Parameters

Drilling Rig Specifications
Drilling diameter (mm)	75, 91, 110, 130, 150, 300
Drilling depth (m)	200, 150, 100, 70, 50, 30
Drill pipe diameter (mm)	42, 50
Drilling angle (°)	90~75
Equipment size (L×B×H)	1730×860×1360 (mm)
Rig weight (except engine)	700kg

Gyrator Specifications
Spindle speed (four gear) (r/min)	115, 230, 505, 1010
Spindle travel (mm)	450
Spindle no-load lifting maximum moving speed (m/s)	0.05
Spindle no load drop maximum movement speed (m/s)	0.067
Spindle maximum feed pressure (KN)	15
Spindle maximum lifting force (KN)	25
Spindle maximum output torque (KN•m)	1.5

Key Features

Ideal for small and medium-sized mines, road construction, defense, water conservancy, and stone works
Capable of large diameter borehole drilling operations
Energy efficiency maintained regardless of drilling rod length
Hydraulic system ensures smooth operation and precise control
Portable design for easy transportation to job sites

Frequently Asked Questions

Q1: Will you provide some spare parts of the machines?

Yes, of course.

Q2: What about the voltage of products? Can they be customized?

Yes, the voltage can be customized according to your requirement.

Q3: Which payment term can you accept?

30% T/T deposit, 70% T/T before shipment.

Q4: How long will you take to arrange production?

380V 50HZ we can deliver within 7-15 days. Other voltages or custom colors will be delivered within 25-30 days.

Q5: Can you accept OEM orders?

Yes, with our professional design team, OEM orders are highly welcomed.
