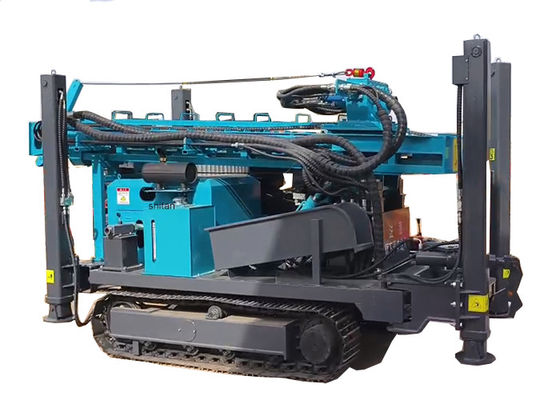

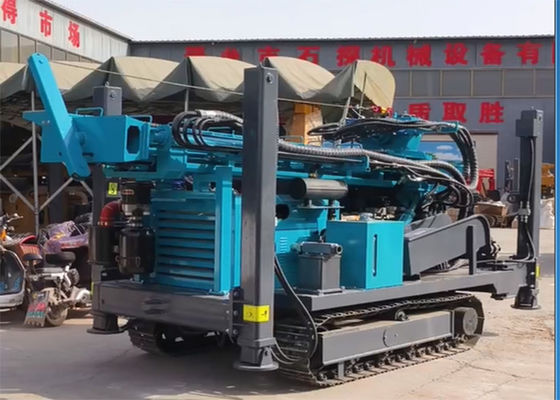

All Terrain Crawler Water Well Drilling Rig With Yuchai 92kw Diesel Engine

Large Image : All Terrain Crawler Water Well Drilling Rig With Yuchai 92kw Diesel Engine

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST-400

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	5-8 workday
Payment Terms:	T/T, Western Union
Supply Ability:	1000set

Contact Now

Detailed Product Description

Maximum Turning Torque:	9900	Footage Efficiency:	10-35m/h
Overall Dimension:	5.6m×2m×2.5m	Maximum Rotation Speed:	85/170r/min
Drilling Hole Diameter:	105-305mm	Drilling Depth:	400m
Working Wind Pressure:	1.25-3.5Mpa	Lifting Speed:	20m/min
Highlight:	Yuchai Water Well Drilling Rig , All Terrain Water Well Drilling Rig , Crawler Water Well Drilling Rig

All Terrain Crawler Water Well Drilling Rig With Yuchai 92kw Diesel Engine

Key Specifications

Attribute	Value
Maximum turning torque	9900 N*m
Footage efficiency	10-35m/h
Overall dimension	5.6m × 2m × 2.5m
Maximum rotation speed	85/170r/min
Drilling Hole Diameter	105-305mm
Drilling Depth	400m
Working wind pressure	1.25-3.5Mpa
Lifting speed	20m/min

Product Overview

The ST400 Pneumatic Drill is a crawler-type water well drilling rig powered by a Yuchai 92KW six-cylinder engine. This robust system delivers exceptional performance with an axial force of 5T, ensuring precise and efficient drilling operations. Designed for demanding applications, it features 6-meter-long drill rods (recommended diameter: 89mm) and generates an impressive torque of 9900N*m, capable of handling drilling tasks up to 400 meters deep. The high-support legs with 1.35m stroke make it particularly effective in challenging terrains, ideal for water resource development and infrastructure projects.

Key Advantages

Versatile Auxiliary Winch - Includes a 1.5T auxiliary winch for enhanced operational flexibility in lifting and drill pipe handling.
Multi-Purpose Application - Suitable for agricultural irrigation, construction foundations, water conservancy projects, and municipal engineering.
Compact & Portable - Measures just 5.6m×2m×2.5m with a weight of 10T, ensuring easy transportation and quick deployment.
Direct Manufacturer Source - Offers high cost-performance ratio with reliable quality.

Technical Specifications

Model: ST-400

Depth: 100-400m

Maximum turning torque: 9900 N*m

Drilling Hole Diameter: 75-305mm

Drilling Rod Diameter: 102mm or 114mm

Additional Bits: Center drill bit, eccentric drill, etc.

Power Source: Diesel Engine Yuchai 93kw

Lifting force of small auxiliary winch: 1.2T
