GK200 Borehole Drilling Machine 15KN Lifting 300mm Diameter

GK200 Borehole Drilling Machine 15KN Lifting 300mm Diameter
GK200 Borehole Drilling Machine 15KN Lifting 300mm Diameter
video play

Large Image :  GK200 Borehole Drilling Machine 15KN Lifting 300mm Diameter

Product Details:
Place of Origin: Jinzhou ,Hebei Province
Brand Name: Shitan
Certification: ISO
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Wooden Box
Delivery Time: 7 days after payment
Payment Terms: TT,Western Union
Supply Ability: 1000 Sets Monthly
Contact Now
Detailed Product Description
Product Name: GK 200 Borehole Drilling Machine Key Words: Borehole Drilling Machine ,Water Borehole Drilling ,Exploration Borehole Coring Drilling Machine
Drilling Diameter: 300mm Drilling Depth: 200m
Max. Lifting Capacity: 15KN Drilling Angle: 75-90°
Hoisting Drum Revolution: 121、76、36（r/min) Drilling Rig Power: Diesel Engine
Highlight:

Portable Borehole Drilling Rig Machine

,

Hydraulic Borehole Drilling Rig Machine

,

Percussion Drilling Machine

GK 200 Borehole Drilling Machine - 15KN Lifting Capacity
Key Specifications
Drilling Diameter
300mm
Drilling Depth
200m
Max Lifting Capacity
15KN
Drilling Angle
75-90°
Power Source
Diesel Engine
Weight
Approx. 600kg
Product Overview

The GK 200 Borehole Drilling Machine is a compact, portable drilling rig weighing approximately 600kg, designed for efficient fieldwork and remote drilling operations. Its OEM design offers flexibility with optional wheel mounting for enhanced mobility across job sites.

Technical Parameters
Product Name GK 200 Borehole Drilling Machine
Type Borehole Core Drilling Rig
Hoisting Drum Revolution 121, 76, 36 (r/min)
OEM Design Wheels Mounted or Optional
Key Features
  • Portable design with approximately 600kg weight for easy transportation
  • Diesel engine powered for reliable operation in remote locations
  • Customizable OEM configuration with optional wheel mounting
  • Robust 15KN lifting capacity for demanding drilling applications
  • Versatile drilling angle adjustment from 75° to 90°
Applications
Water Well Drilling

Ideal for remote water supply projects, capable of reaching deep aquifers for domestic and agricultural water needs.

Exploration and Core Sampling

Effective for geological surveys, mining exploration, and environmental studies requiring core samples.

Geothermal Energy Extraction

Suitable for drilling geothermal wells to access renewable energy sources.

Oil and Gas Exploration

Capable of penetrating hard rock formations for hydrocarbon exploration.

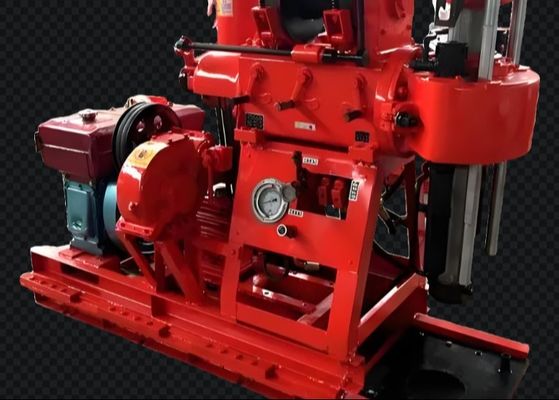

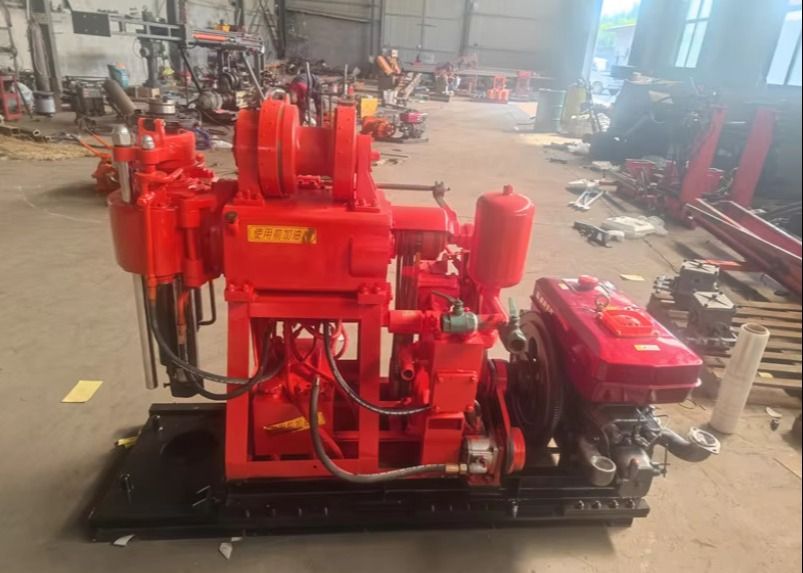

Product Images
GK200 Borehole Drilling Machine 15KN Lifting 300mm Diameter 0
GK200 Borehole Drilling Machine 15KN Lifting 300mm Diameter 1
GK200 Borehole Drilling Machine 15KN Lifting 300mm Diameter 2
GK200 Borehole Drilling Machine 15KN Lifting 300mm Diameter 3
Ordering Information
Brand Shitan
Model GK200
Certification ISO
Minimum Order 1 Set
Packaging Wooden Box
Delivery Time 7 days after payment
Payment Terms TT, Western Union
Support & Services
  • Installation and setup assistance
  • Technical troubleshooting and diagnostics
  • Maintenance and repair services
  • Operator training programs
  • Replacement parts availability
Frequently Asked Questions
What is the power source for this drilling machine?
The GK200 is powered by a diesel engine for reliable operation in remote locations.
Can this machine be customized?
Yes, the OEM design allows for customization including optional wheel mounting.
What is included in the standard packaging?
Each unit includes the drilling machine, a set of drilling tools, and user manual with safety instructions.
