Hydraulic 130m Borehole Drilling Truck 75-90° Drilling Angle

Hydraulic 130m Borehole Drilling Truck 75-90° Drilling Angle
Hydraulic 130m Borehole Drilling Truck 75-90° Drilling Angle
video play

Large Image :  Hydraulic 130m Borehole Drilling Truck 75-90° Drilling Angle

Product Details:
Place of Origin: Jinzhou ,Hebei Province
Brand Name: Shitan
Certification: ISO
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Customzied Quotation list
Packaging Details: exported packing
Delivery Time: 5 days after advance payment
Payment Terms: T/T,Western Union
Supply Ability: 2000 set/year
Contact Now
Detailed Product Description
Product Name: XY-1 A Borehole Drilling Machine Key Words: Water Well Drilling Machine,150 Meters Drilling Rig
Drilling Depth: 150m Weight: Around 600kg
Hoisting Drum Revolution: 121、76、36（r/min) Max. Lifting Capacity: 15KN
OEM Design: Wheels Mounted Or Optional Drilling Rig Power: Diesel Engine
Highlight:

Borehole Drilling Truck

,

150m depth borehole drilling equipment

,

hydraulic water borehole drilling machine

XY-1 A Borehole Drilling Machine

A high-performance hydraulic drilling rig capable of 130m borehole drilling with 75-90° drilling angle, ideal for water well drilling and geological exploration.

Key Features
  • Maximum drilling depth: 150 meters
  • Drilling diameter: 150mm
  • Three hoisting drum speeds: 121, 76, and 36 r/min
  • Maximum lifting capacity: 15KN
  • Compact design with approximately 600kg weight
  • Diesel engine powered for reliable performance
  • Available in wheels mounted or optional configurations
Technical Specifications
Parameter Value
Product Name XY-1 A Borehole Drilling Machine
Drilling Angle 75-90°
Hoisting Drum Revolution 121, 76, 36 (r/min)
Drilling Diameter 150mm
Drilling Depth 150m
Power Source Diesel Engine
Max Lifting Capacity 15KN
Weight Approximately 600kg
Applications

The XY-1A Borehole Drilling Machine is designed for various drilling applications including:

  • Soil investigation and geological exploration
  • Hydrological investigation and water well drilling
  • Geothermal drilling and foundation work
  • Environmental engineering projects
  • Mineral exploration and core sampling

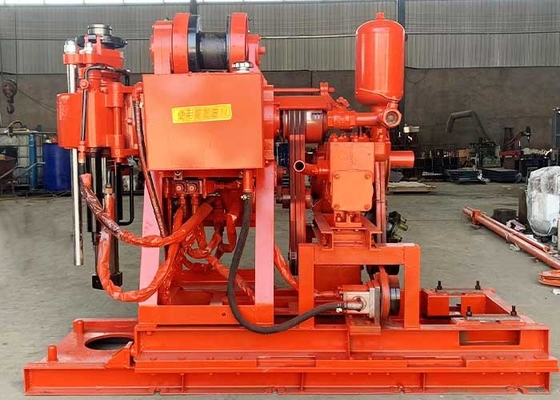

Product Images
Hydraulic 130m Borehole Drilling Truck 75-90° Drilling Angle 0 Hydraulic 130m Borehole Drilling Truck 75-90° Drilling Angle 1 Hydraulic 130m Borehole Drilling Truck 75-90° Drilling Angle 2 Hydraulic 130m Borehole Drilling Truck 75-90° Drilling Angle 3 Hydraulic 130m Borehole Drilling Truck 75-90° Drilling Angle 4
Manufacturer Details

Brand: Shitan

Model: XY-1A

Origin: Jinzhou, Hebei Province, China

Support & Services
  • Installation and setup assistance
  • Troubleshooting and repair services
  • Regular maintenance programs
  • Parts replacement support
  • Operator training and safety guidance
  • Comprehensive product warranty
Packaging & Shipping

The drilling machine is securely packaged in double-layered corrugated cardboard boxes, sealed with water-resistant tape, and shipped on pallets with plastic wrapping for maximum protection during transit.

Frequently Asked Questions
What is the brand of this drilling machine?

The machine is manufactured by Shitan, a reputable brand in drilling equipment.

What is the model number?

The model number is XY-1A.

Where is it produced?

Manufactured in Jinzhou, Hebei Province, China.

What are the main features?

Key features include 150m drilling depth, three-speed hoisting drum, 15KN lifting capacity, and diesel engine power.

What are the benefits?

The machine offers efficient deep drilling with minimal effort, cost-effectiveness, and reliable performance for various drilling applications.
