OEM Portable Core Drilling Machine 50 Meters Hydraulic

Large Image : OEM Portable Core Drilling Machine 50 Meters Hydraulic

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 sets/year

Contact Now

Detailed Product Description

Type:	OEM Customized Portable 50 Meters Hydraulic Core Drilling Machine Core Drill Rig	Power Type:	Diesel
Weight::	480kg	Usage:	Water Well,railways, Core Drilling
Drilling Depth:	50m	Dimension(LWH):	1180×680×1600mm
Drill Pipe Diameter:	42mm	Condition:	New
Weight:	200KG	Hole Size Diameter:	73-108mm
Highlight:	50m Portable Core Drilling Machine , oem Portable Core Drilling Machine , 50meter portable drill rig

OEM Portable Core Drilling Machine 50 Meters Hydraulic

Product Specifications

Attribute	Value
Type	OEM Customized Portable 50 Meters Hydraulic Core Drilling Machine Core Drill Rig
Power Type	Diesel
Weight	480kg
Usage	Water well, railways, core drilling
Drilling depth	50m
Dimension (L×W×H)	1180×680×1600mm
Drill pipe diameter	42mm
Condition	New
Hole size diameter	73-108mm

Product Overview

The ST50 Core Drill Rig is designed for drilling wells, general exploration, geophysical prospecting, road and construction exploration, and blasting holes. It can drill through 2-9 grades of sandy clay and rock formations using appropriate drill bits (alloys, diamonds, or composite).

Technical Parameters

Type	ST50 Core Drill Rig
Drilling depth	Max. 50 meter
Hole size diameter	73-108mm
Drill pipe diameter	42mm
Vertical spindle speed	70-650
Reverse rotation speed	50-130
Power	5.7KW
Dimensions	1180×680×1600mm
Weight (including Gasoline engine)	208kg

Key Features

Ideal for small and medium-sized mines, road construction, defense, water conservancy, and stone works
Capable of large diameter borehole drilling operations
Energy efficiency maintained regardless of drilling rod length

Frequently Asked Questions

Q1: Will you provide some spare parts of the machines?

Yes, of course.

Q2: What about the voltage of products? Can they be customized?

Yes, the voltage can be customized according to your requirement.

Q3: Which payment term can you accept?

30% T/T in advanced, 70% T/T

Q4: How long will you take to arrange production?

380V 50HZ we can delivery within 7-15 days. Other specifications will be delivered within 25-30 days.

Q5: Can you accept OEM orders?

Yes, with our professional design team, OEM orders are highly welcome.

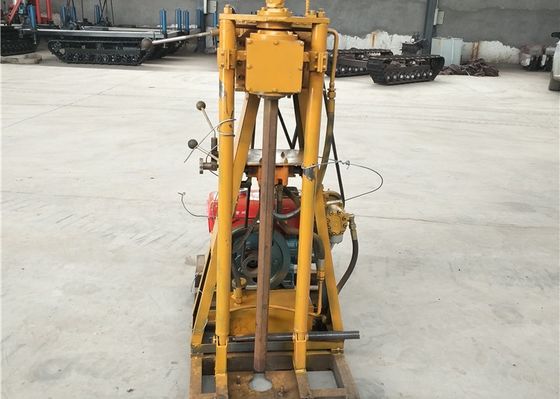

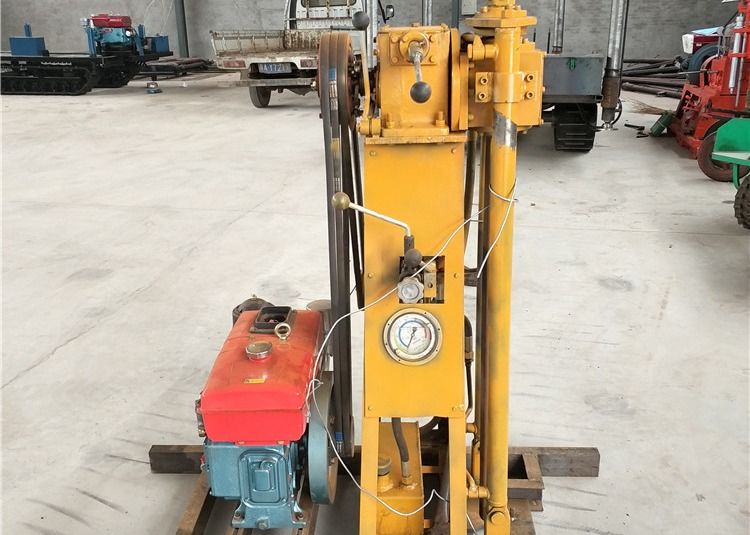

Product Images
