ST 180 Pneumatic Deep Drilling Rig 180m Depth ISO Certified

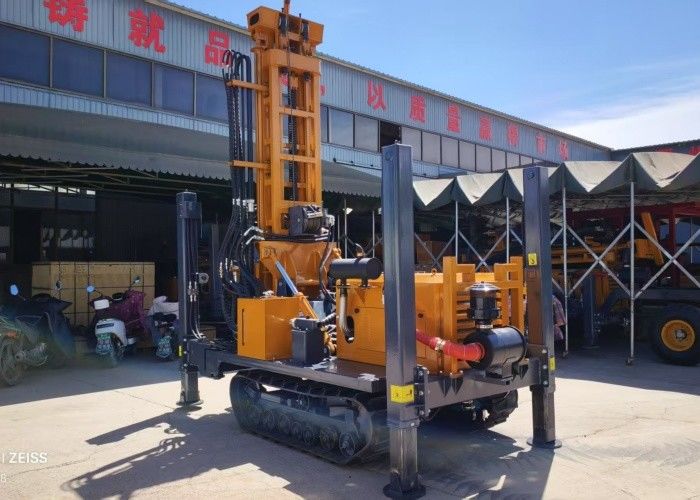

Large Image : ST 180 Pneumatic Deep Drilling Rig 180m Depth ISO Certified

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 180 Pneumatic Deep Drilling Rig	Key Words:	Pneumatic Drilling Rig ,Borehole Drilling Rig ,Water Well Drilling Rig
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	180 Meters
Condition:	New	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Highlight:	150 meters pneumatic drill rigs , 180 meters pneumatic drill rigs , 180 meters pneumatic drilling rig

ST 180 Pneumatic Deep Drilling Rig Machine

Product Overview

The ST-180 Pneumatic Deep Drilling Rig is engineered for high efficiency, low maintenance, and exceptional adaptability, making it ideal for hard rock wells, remote locations, and high-altitude projects. This versatile machine is widely used in industrial and agricultural water projects, test wells, and various exploration boreholes, including geothermal heating installations and engineering reinforcement applications.

Key Specifications

Attribute	Value
Product Name	ST 180 Pneumatic Deep Drilling Rig
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized
Drilling Depths	180 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m, 3400mm

Technical Specifications

Drilling Diameter	140-254 mm
Drilling Depth	180 m
Drill Rod Diameter	76/89
Air Consumption	17-31 m³/min
Working Pressure	17-25 bar
Swing Torque	3200-4600 Nm
Drill Pipe Length	1.5 m / 2.0 m / 3.0 m
Dimension (L×W×H)	3800×1500×2820 mm
Unit Weight	4500 kg
One-time Advance Length	3.3 m
Walking Speed	2.5 km/h
Compensation	1000 mm
Rig Lifting Force	16 T
Swing Speed	45-65 rpm
Engine Brand	Yuchai / Xichai
High Leg Stroke	1.4 m
Climbing Angles (Max)	30°
Equipped with Hammer	Medium and high wind pressure series

Key Advantages

Greater fuel efficiency and energy saving
Air filtration system with vacuum indication for dust environments
Compressor oil and engine coolant coolers to optimize performance and extend engine life
Efficient compressor oil filter
Fuel filter with water separator
Easy to remove, translucent PE fuel tank

Applications

This drilling rig is suitable for various geological formations and applications including:

Water well engineering
Geothermal wells
Anchor pile holes
Follow-pipe drilling

The machine features whole-machine hydraulic control, automatic loading/unloading of drill pipes, crawler-type chassis, high-power diesel engine, and four hydraulic support legs for superior balance and terrain adaptability.

Performance Highlights

Hard Rock Drilling

High-frequency impact with automatic cuttings removal achieves granite drilling speeds of 2-3m/hour.

Case Study: Completed 150m well in Ethiopian granite in 72 hours.

Remote Area Operations

Fully pneumatic operation (no electricity required) with modular design for transport via pack animals.

Case Study: Successful Himalayan village water project (Nepal) at 3,800m altitude.

Cost Efficiency

40% fuel savings compared to hydraulic rigs for a 200m well. Eliminates hydraulic oil costs with annual savings exceeding $2,000.

Product Images
