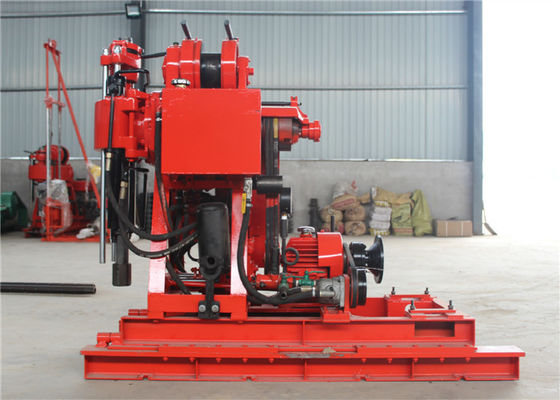

High Efficiency Core Drill Rig XY-1 Red Color For Coal Mining Exploration
Product introduction
1. Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
Technology Parameters
| Model |
Diamond Core Drilling Rig(XUL-100) |
| Drilling depth( m) |
100 |
| Drilling rod diameter.(mm) |
Φ42 |
| Head angle range |
360 |
| Movable cylinder stroke (mm) |
300 |
| Spindle speed( r/min) |
144 264 590 1083 |
| Spindle hole diameter( mm) |
Φ54 |
| Spindle output torque max(N.M) |
800 |
| Spindle stroke(mm) |
370 |
| Lifting power max( KN) |
30 |
| Driving force max(KN) |
23 |
| Lifting speed( m/s) |
0.36 0.7 1.49 2.9 |
| Lifting capacity(single) max(KN) |
10 |
| Steel wire rope diameter (mm) |
11 |
| Mode of chuck |
Hand lever chuck |
| Weight(power unit excepted)(Kg) |
550 |
| Overall dimensions(mm) |
1200*650*1300 |
| Diesel engine model |
Zs1100 ( 12.1KW) |
| Electromotor model |
Y160M-4 ( 11KW) |
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
