Product Details:
Payment & Shipping Terms:
|
| Product Name: | Core Drilling Rig | Feature: | High Drilling Efficiency |
|---|---|---|---|
| Model Number:: | GK200, XY-1, XY-1B | Power Type: | Diesel |
| COLOR: | Red | Usage: | Geological Core Drilling |
| Drilling Angle: | 90°~75° | Drill Pipe Diameter: | 42mm, 50mm, 60mm |
| High Light: | water well borehole drilling rig,hydraulic water well drilling machine |
||

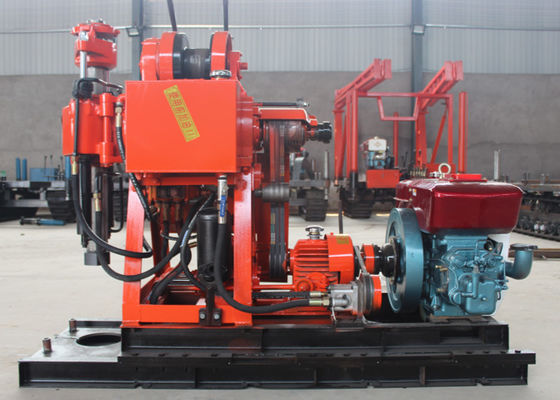

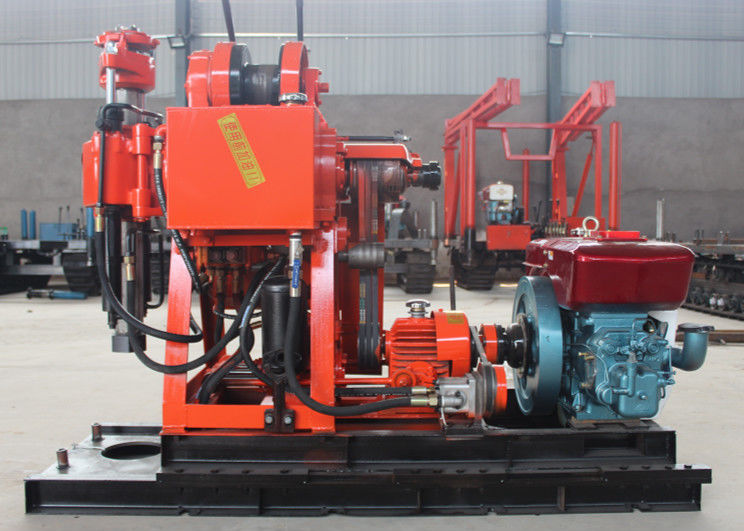

Easy Operate Portable Drilling Rig 100m to 200m Depth for Sale
Product Application
1. Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
|
XY-1 specifications
|
|
|||
|
Drilling Capacity
|
Drilling Diameter(mm)
|
300
|
76
|
46
|
|
Drilling depth(m)
|
25
|
135
|
175
|
|
|
Drill pipe diameter
|
42
|
|||
|
Turnplate
|
Revolving speed
|
48 100 200 350 650 (R/Min)
|
||
|
MAX torque
|
2000Nm
|
|||
|
Feed stroke
|
400mm
|
|||
|
Pump
|
Rated speed
|
2500 r/min
|
||
|
Rated pressure
|
20Mpa
|
|||
|
Max pressure
|
25Mpa
|
|||
