BW 250 Drilling Mud Pump
Product Description

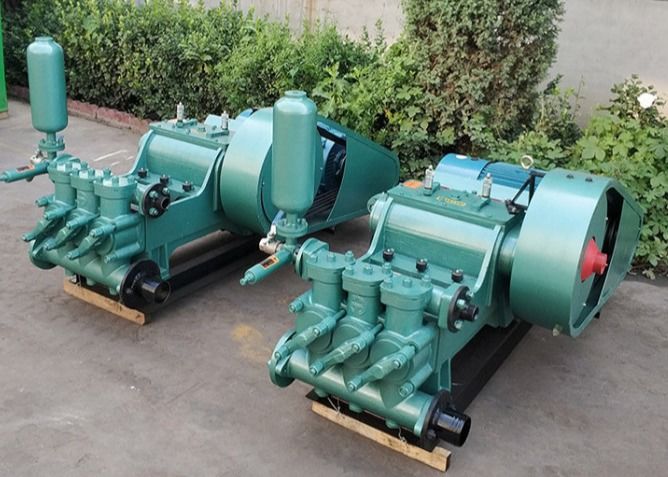

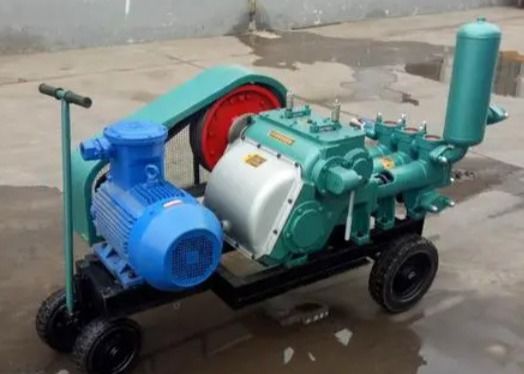

BW-250 (grouting pump) mud pump is a horizontal three cylinder reciprocating single acting piston pump with two cylinder diameters and four speeds. The displacement and hole depth can be adjusted at will according to the purpose. The deepest can be used with 1500 meter drilling rig, and can also be used for cement slurry grouting.
Product Specifications
| Brand |
Shitan |
| Reciprocating unit |
Plunger pump |
| Driving mode |
Electric/diesel |
| performance |
No blocking |
| Conveying medium |
Sewage pump, impurity pump |
| Number of impellers |
other |
| Pump shaft position |
horizontal |
| Impeller structure |
other |
| Impeller suction mode |
Single suction |
| NPSH |
20(m) |
| Suction diameter |
50-90(mm) |
| Discharge diameter |
32-60(mm) |
| weight |
780(kg) |
| Voltage |
380/660/1140(V) |
| power |
7.5-45kw(kw) |
| Specifications |
BW150/BW160/BW250/BW320/BW450 |
| purpose |
other |
| texture of material |
cast steel |
| model |
BW series |
Product Advantages
1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor power, It has simple operation, convenient, can achieve close range or remote control.
2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,stable performance, good general and so on.
3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable
configuration parameters selection,The construction technology can satisfy different requirements.
4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.
Product Applications
In ordinary construction projects, it can be used for grouting reinforcement, spraying support, internal and external walls, ceiling spraying and plastering of bridges, culverts, mines, tunnels, etc. In addition, it can be used as equipment for conveying slurry in chemical departments, railway construction, and other projects. This product is widely used in mining, geological drilling, coal mines, railways, highways, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement and other projects. This series of products is designed and durable, with a reasonable structure. It has the characteristics of high pressure, large flow rate, multiple variables, energy conservation and consumption reduction, light volume, high efficiency, long lifespan, safe operation, and convenient maintenance. It is a horizontal three cylinder reciprocating single effect piston pump,
BW 250 Mud Pump FAQ
1. Are you factory ?We are a 20 years factory. We are specialized in kinds of drilling rigs and related parts.
2. What is your terms of delivery?EXW, FOB, CFR, CIF,
3. About Packing:Standard export packaging,export wooden cases or iron cases.
4. Terms of Payment:30% TT deposit,the balance before shipment
5. Shipping Type:By sea or by air
6. Ports of Shipment:Tianjin,Qingdao,Shanghai or other required ports
7. Quality Control:We have our own experienced QC, strict inspection and testing for every order before shipment
