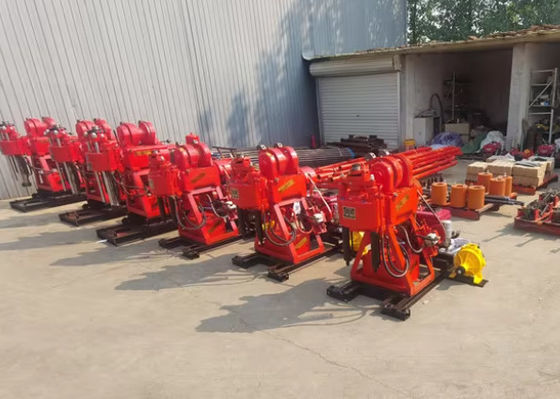

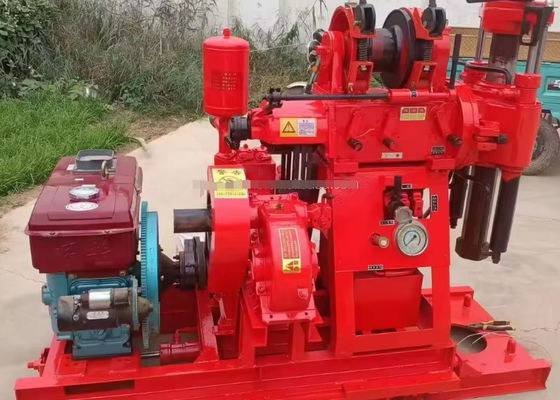

15KW Water Well Drilling Rig Machine GY-200-1A For Coal / Oil Industry
GK-200-1A engineering drill is adopted with hydraulic pressure feeding structure, it can proceed attacking and gyrating drilling, and is used for engineering geological exploration in road,railway,bridge foundation,dam site,well,prospecting or industrial and civil architecture. It can also used in anchor rod engineering.
| 1, drilling ability |
| Drilling diameter (mm) |
300 |
76 |
46 |
| Depth of drilling (m) |
60 |
225 |
290 |
| Drill pipe diameter (mm) |
50 |
42 |
| Vertical axis inclination range |
0°~360° |
| 2,Turntable |
| Rotating speed(r/min) |
Forward |
900 475 388 205 157 68 |
| |
Reversal |
256 85 |
| Maximum torque |
2000N·m |
| Rack movement schedule |
400mm |
| Vertical axis to process |
450mm |
| Cylinder maximum feed force |
29KN |
| The maximum jacking force of the cylinder |
39KN |
| 3, lifts |
| Reel diameter |
135mm |
| Wire rope diameter |
12.5mm |
| Reel capacity |
30m |
| Single rope lifting force |
30KN |
| Single rope maximum lifting speed |
0.27 0.64 0.83 1.58 1.64 |
| (Second floor)(m/s) |
| 4,Oil pump |
| Model number |
CBF-F420-ALPL gear oil pump |
| Displacement |
20mL/r (Flow 33L/min) |
| Rated speed |
2500r/min |
| preset pressure |
20MPa |
| greatest pressure |
25MPa |
| 5, power machine |
model |
Power |
Rotating speed |
weight |
| (1) Motor |
Y160L-4 |
15KW |
1460r/min |
144kg |
| (2) Diesel Engine |
Changchai ZS1110 |
14.7KW |
2200r/min |
180kg |
| 6, rack |
| Type: Slide type (with sliding base) |
| Drill stroke |
400mm |
| Let the opening distance |
270mm |
| 7.Rig Dimensions (length × width × height) |
1820×980×1400mm |
| 8,rig weight (including diesel engine) |
850kg |
Drill Rig Applicate:
1. Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge,
water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Core mining exploration, Or exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
